What the Controls Do-222 DSO Operators

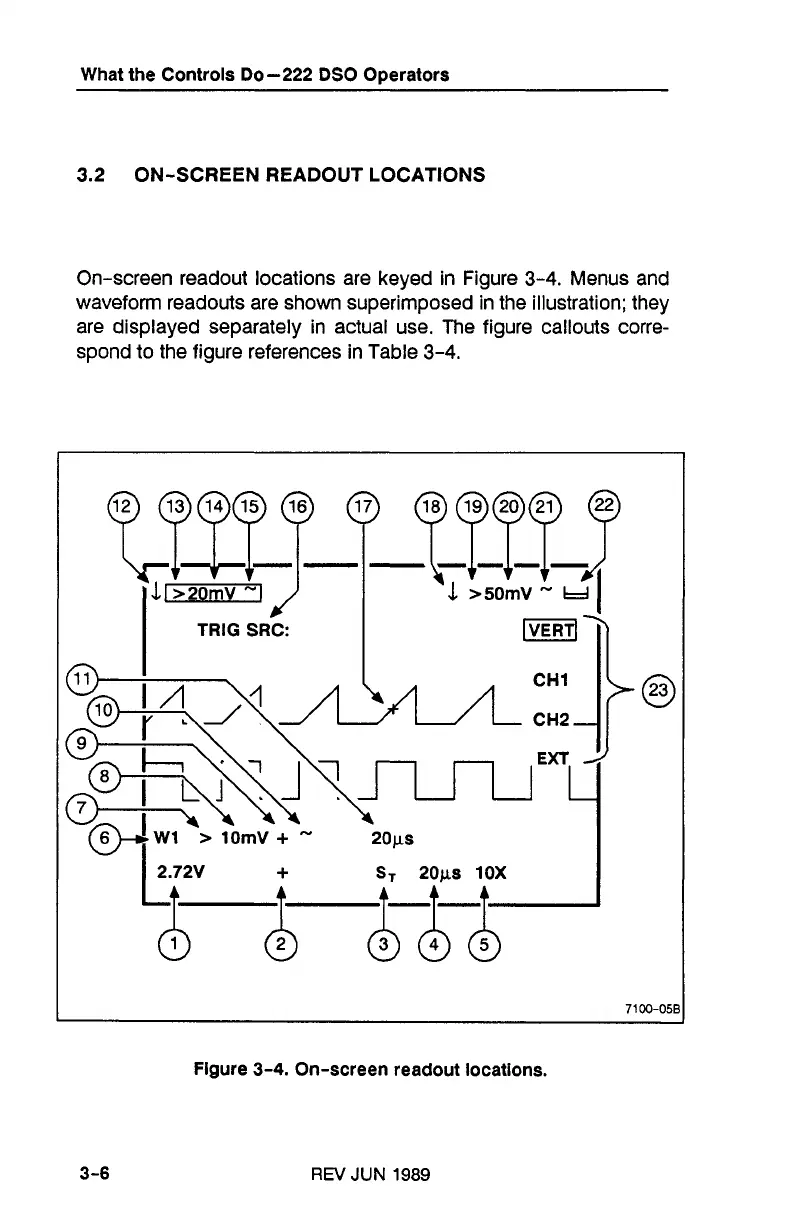

3.2 ON-SCREEN READOUT LOCATIONS
On-screen readout locations are keyed in Figure 3-4. Menus and
waveform readouts are shown superimposed in the illustration; they
are displayed separately in actual use. The figure
callouts corre-
spond to the figure references in Table
3-4.
Figure 3-4. On-screen readout locations.
REV JUN 1989
