Tektronix DPO7000 Series Technical Reference

Performance Tests (MSO70000/C Series, DSA/DPO70000B/C Series, and DPO7000 Series)

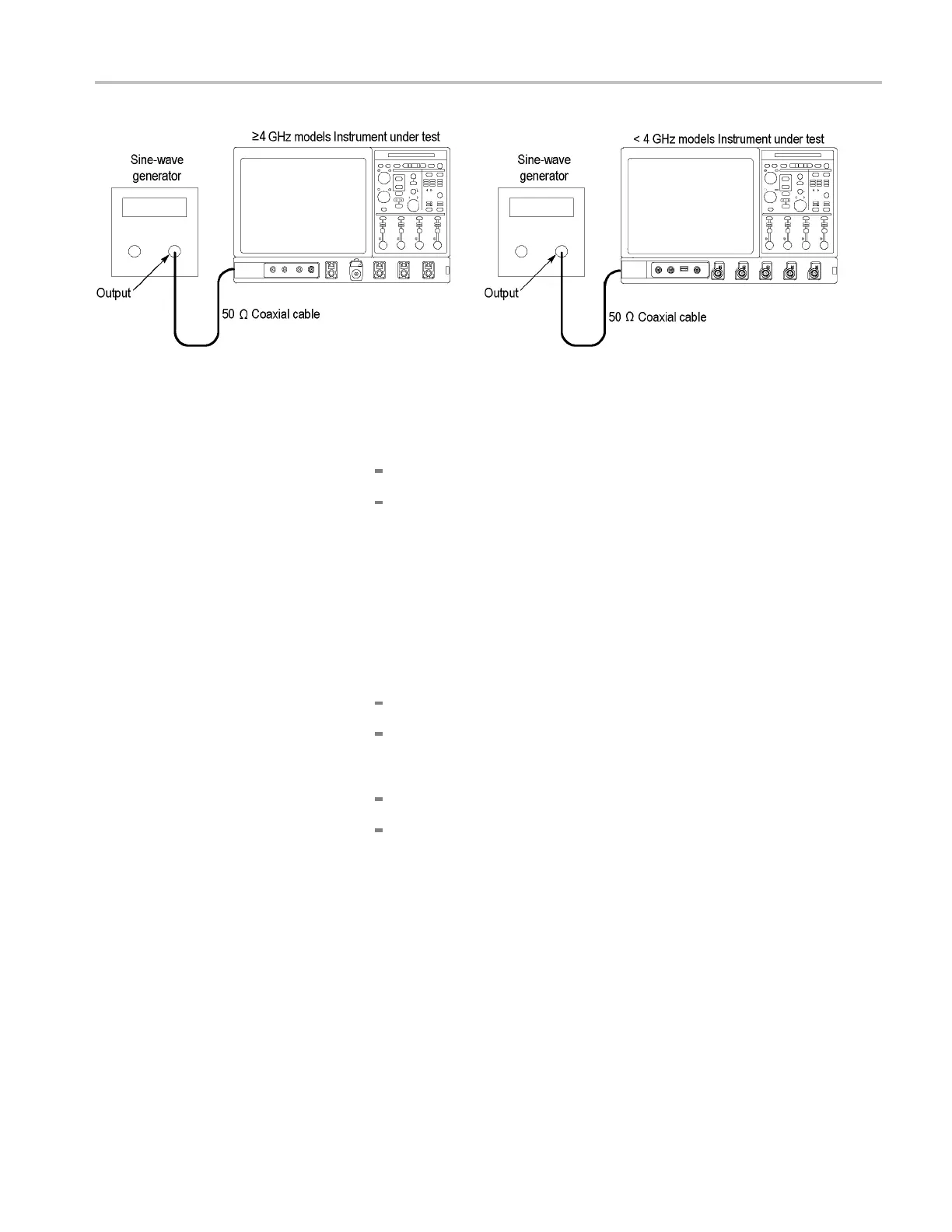

Figure 3-20: Final test hookup
5. Confirm external reference:
a. Perform a signal path compensation:
Touch Utilities and select Instrument Calibration.
Touch Run SPC (Calibrate on some instruments) and wait for the
signal path compensation to finish.
b. Check t he completion status: Enter the pass/fail status in the test record.
If the Status is Fail, refer the instrument to qualified service personnel.
6. Disconnect the hookup:
a. Disconnect all test equipment from the instrument.
b. Set t
he instrument controls:
From menu mode, touch Utilities and select External Signals.
Touch the Internal button to select the internal reference.
c. Perform a signal path compensation:
Touch Utilities and select Instrument Calibration.
Touch Run SPC (Calibrate on some instruments) and wait for the
signal path compensation to finish.
MSO70000/C, DSA70000B/C, DPO7000B/C, DPO7000, MSO5000, DPO5000 Series 3–75
