Tektronix DPO7000 Series Technical Reference

Performance Tests (MSO70000/C Series, DSA/DPO70000B/C Series, and DPO7000 Series)
Check Delta Ti
me
Measurement Accuracy,
< 4 GHz m odels
Equipment Required Prerequisites
One 50 Ω, precision coaxial cable (Item 4)
One 50 Ω, 60 inch precision coaxial cable,
male-to-male
SMA connectors (Item 28)
One Pulse Generator (Item 20)
One BNC elbow connector (Item 24)
One SMA "T", m
ale to two SMA female
connectors (Item 22)
One SMA female to BNC male connector
(Item 23)
One SMA termination connector, short
circuit, (Item 25)
One SMA mal
e-to-female BNC adapter
(Item 17)
(See page 3-18, Prerequisites.)
This procedure checks the "sample rate" portion of the Delta Time Measurement
Accuracy as listed in Specifications. The previous procedure, that checks
the reference, (See page 1-1.) verified the "PPM" portion of the delta time
specific
ation.

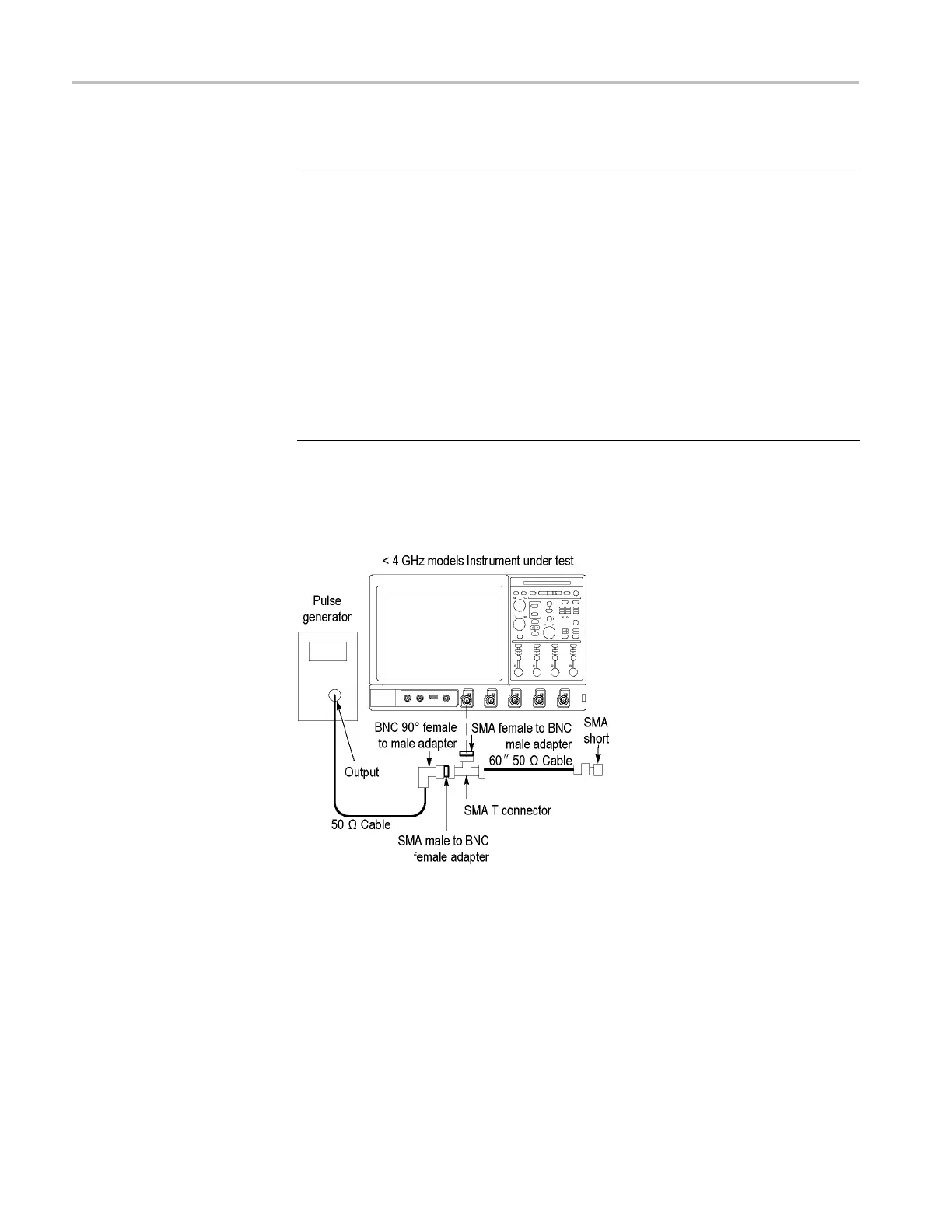

Figure 3-21: Delta time accuracy test hookup
3–76 MSO70000/C, DSA70000B/C, DPO7000B/C, DPO7000, MSO5000, DPO5000 Series
