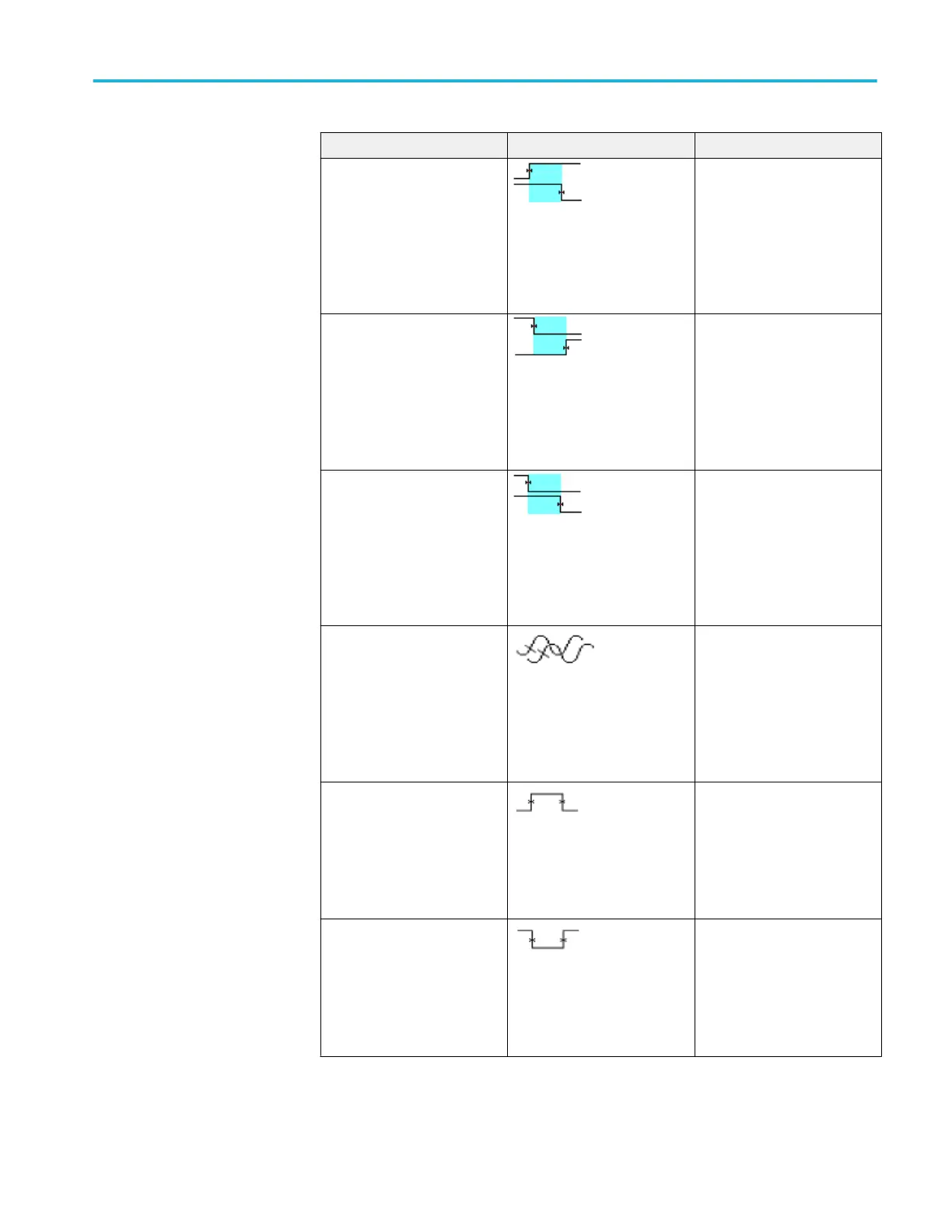

Measurement Description
DelayRF The time between the mid
reference (default 50%)
amplitude point of the rising
edge of one waveform and the
falling edge of a second
waveforms. See also Phase.
This measurement requires
inputs from two channels.
DelayFR The time between the mid
reference (default 50%)
amplitude point of the falling
edge of one waveform and the
rising edge of a second
waveforms. See also Phase.
This measurement requires
inputs from two channels.
DelayFF The time between the mid
reference (default 50%)
amplitude point of the falling
edge of one waveform and the
falling edge of a second
waveforms. See also Phase.
This measurement requires
inputs from two channels.
Phase The amount of time that one
waveform leads or lags another
waveform, expressed in
degrees, where 360° makes up
one waveform cycle. See also
Delay(RR, RF, FR, FF).
This measurement requires
inputs from two channels.
+Width Positive pulse width. The
distance (time) between the mid
reference (default 50%)
amplitude points of a positive
pulse. The measurement is
made on the first pulse in the
waveform or gated region.
–Width Negative pulse width. The
distance (time) between the mid
reference (default 50%)
amplitude points of a negative
pulse. The measurement is
made on the first pulse in the
waveform or gated region.
Analyzing a waveform
TBS2000B Series Oscilloscopes User Manual 95
