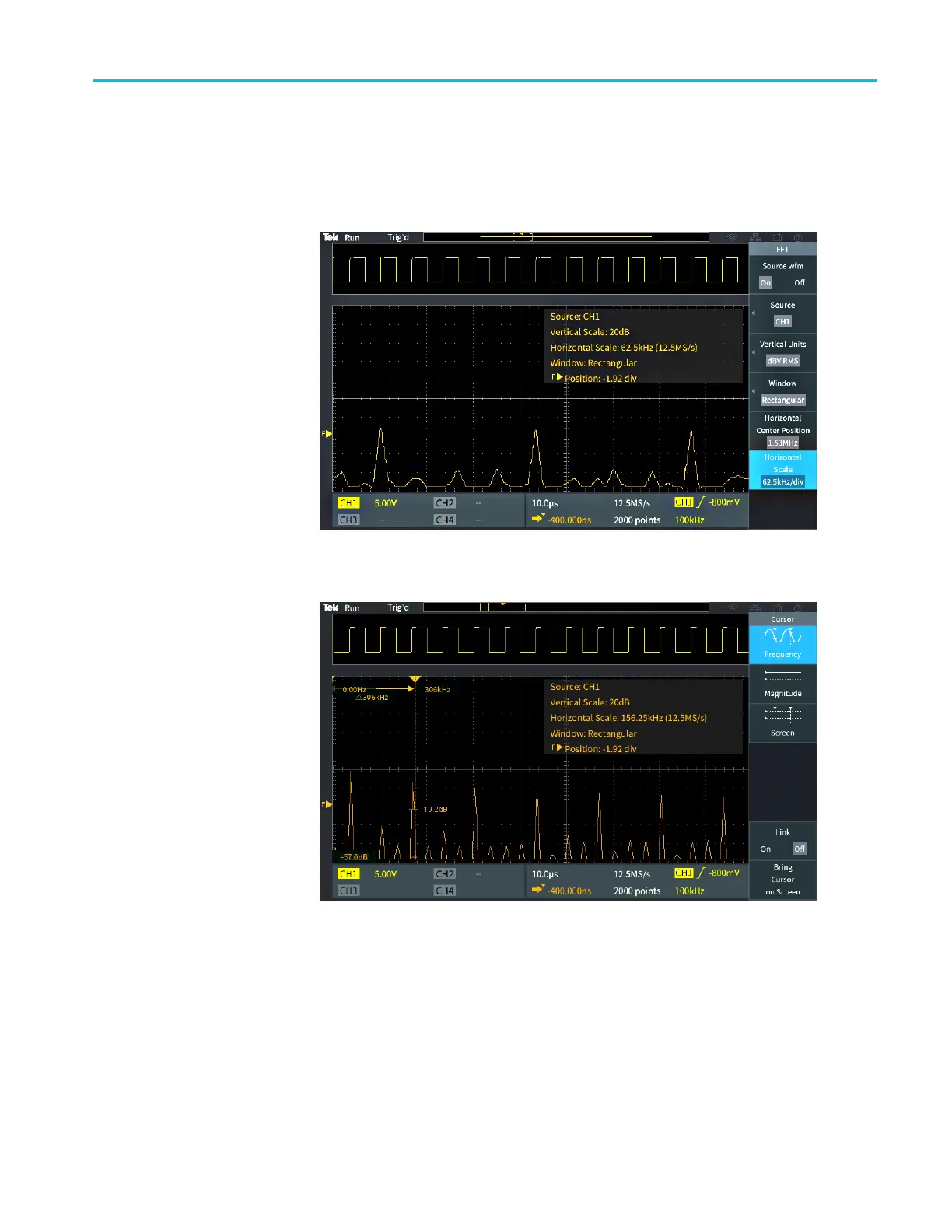

8. Push the Horizontal Scale side-menu button and use the Multipurpose knob

to set the horizontal scale (frequency per major graticule division) value. Use

this to expand or contract the FFT waveform to show more or less detail. The

FFT waveform expands around the center cursor.

9. Push the Cursors front-panel button and use the cursors to take

measurements.

Analyzing a waveform

TBS2000B Series Oscilloscopes User Manual 115
