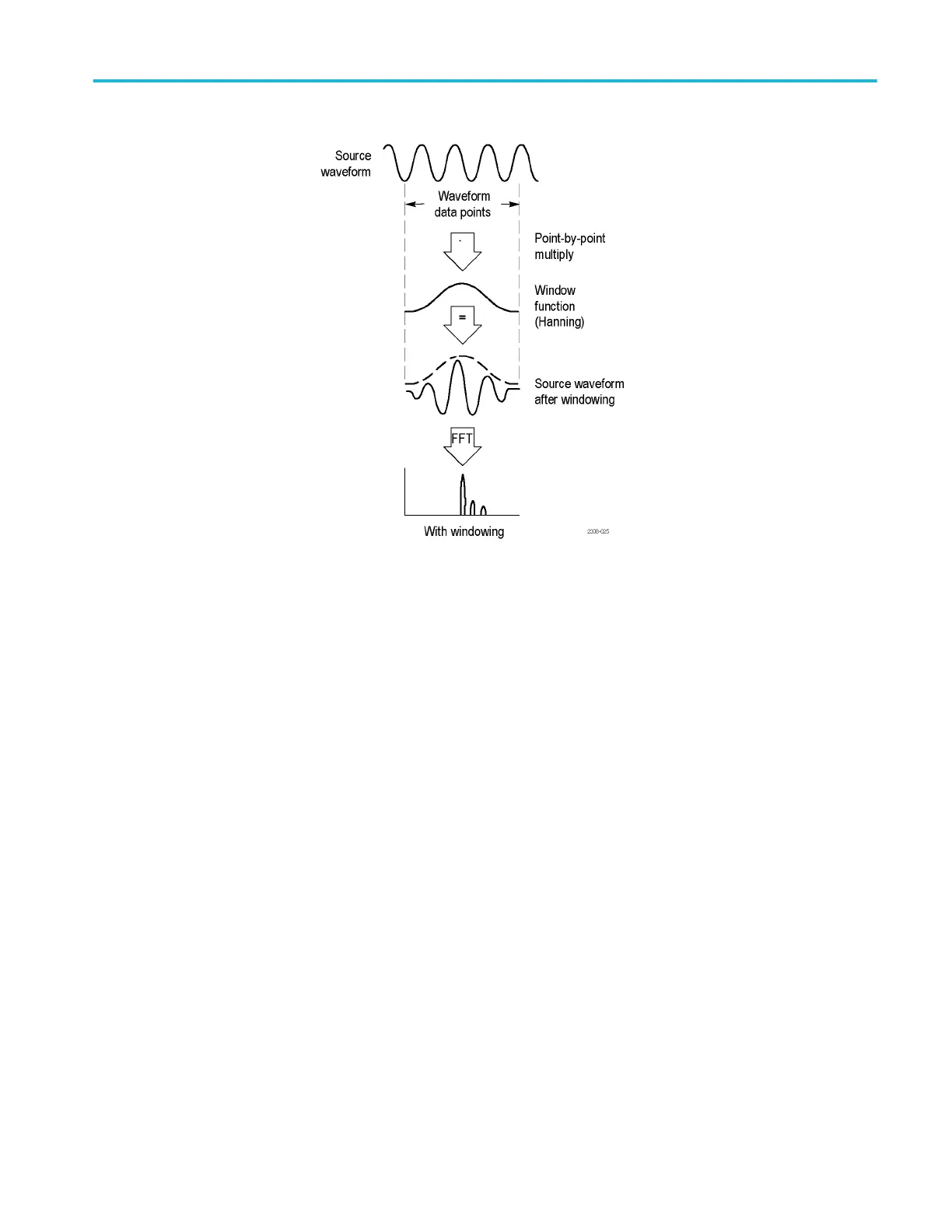

The different window shapes are trade-offs between frequency accuracy and

magnitude accuracy. What you want to measure, and your source signal

characteristics, help you to select which window to use. Use the following

guidelines to select the best window for your signal analysis needs. The Hanning

window is a good starting point for FFT measurements.

Analyzing a waveform

TBS2000B Series Oscilloscopes User Manual 117
