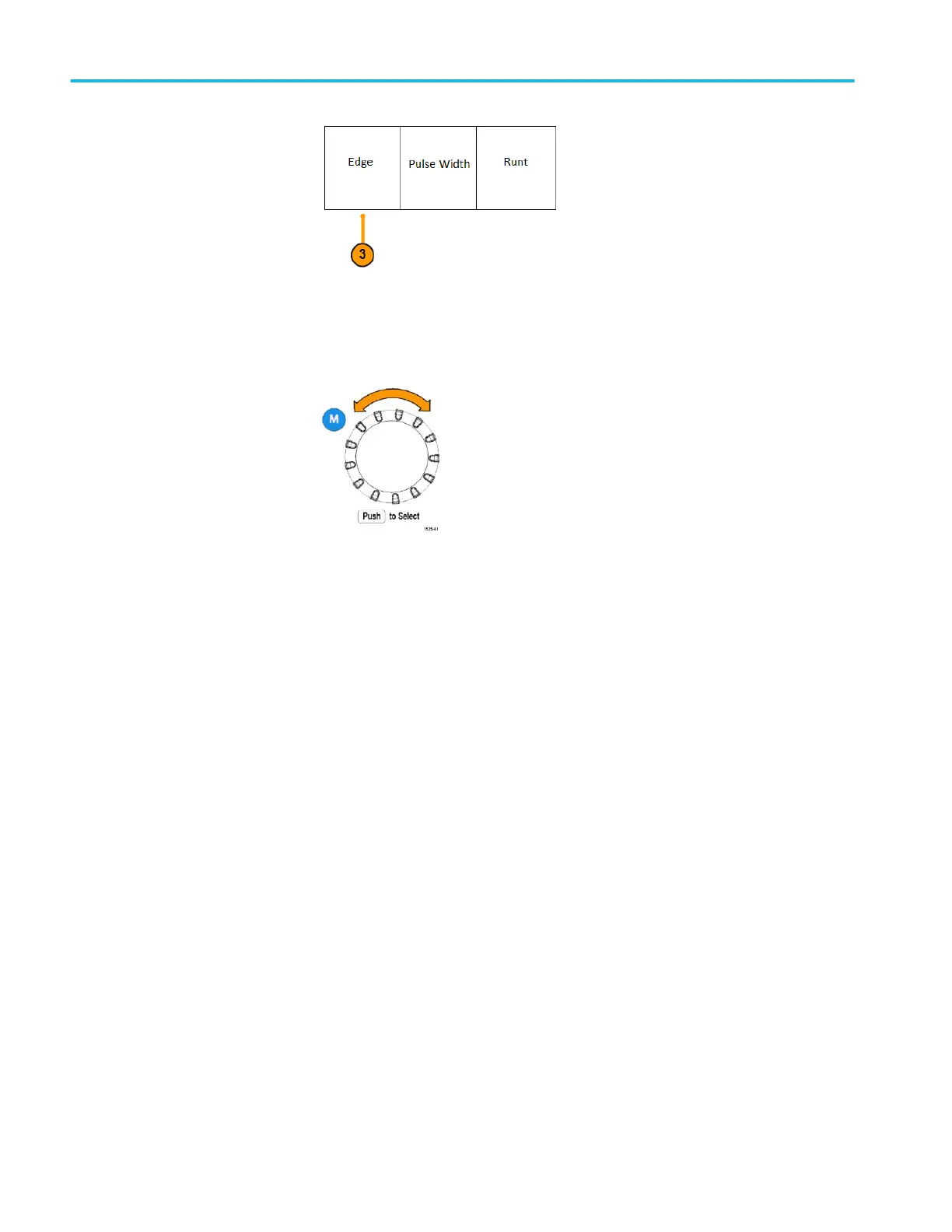

Turn Multipurpose knob to select the search type: Edge, Pulse Width, and
Runt.
On the screen, hollow triangles show the location of automatic marks and
solid triangles show the custom (user-defined) locations. These appear on
both normal and zoomed waveform views.
4. You can quickly investigate your waveform by moving from search mark to
search mark with the next ( →) and previous (←) arrow buttons. No other
adjustments are needed.
Quick tips
■
Trigger settings can be copied to search settings for other locations in your
acquired waveform that meet the trigger conditions.
■
Search settings can be copied to trigger settings.
■
Custom (User) marks are saved with the waveform when the waveform is
saved and when the setup is saved.
■
Automatic search marks are not saved with the waveform when the
waveform is saved. However, you can easily recapture them by reusing the
search function.
■
The search criteria are saved in the saved setup.
