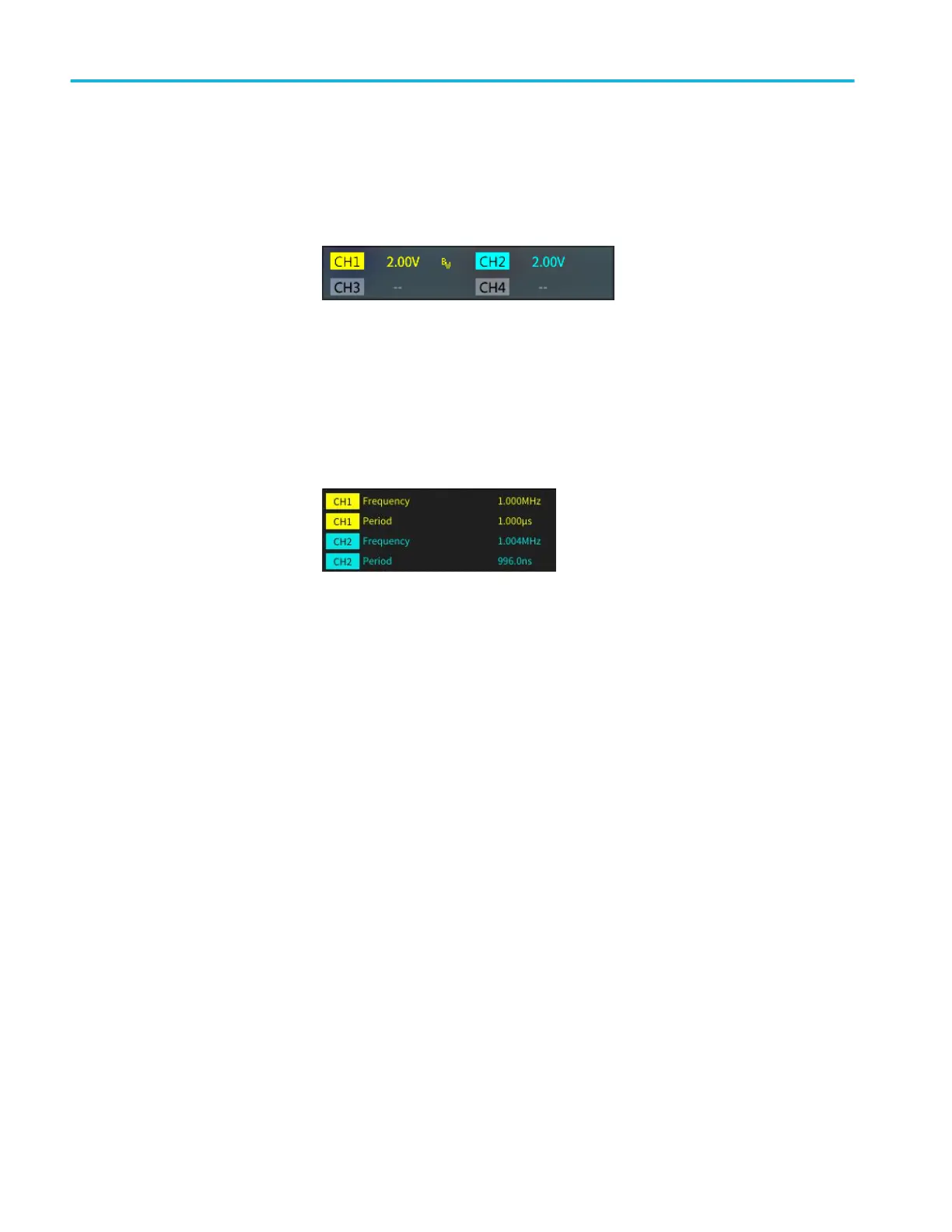

12. The channel readouts shows the channel scale factor (measurement units per
major vertical graticule division), input signal coupling, signal invert status,
and the oscilloscope bandwidth setting. Adjust these settings by using the
Vertical Scale knob and the channel 1, 2, 3, or 4 menus.
13. The measurement readouts show the selected measurements. You can select
up to six measurements to display at one time. See Taking automatic
measurements on page 89.
Push the Menu On/Off button to toggle on off the display of the
measurement readouts on the screen.
Appendices
190 TBS2000B Series Oscilloscopes User Manual
