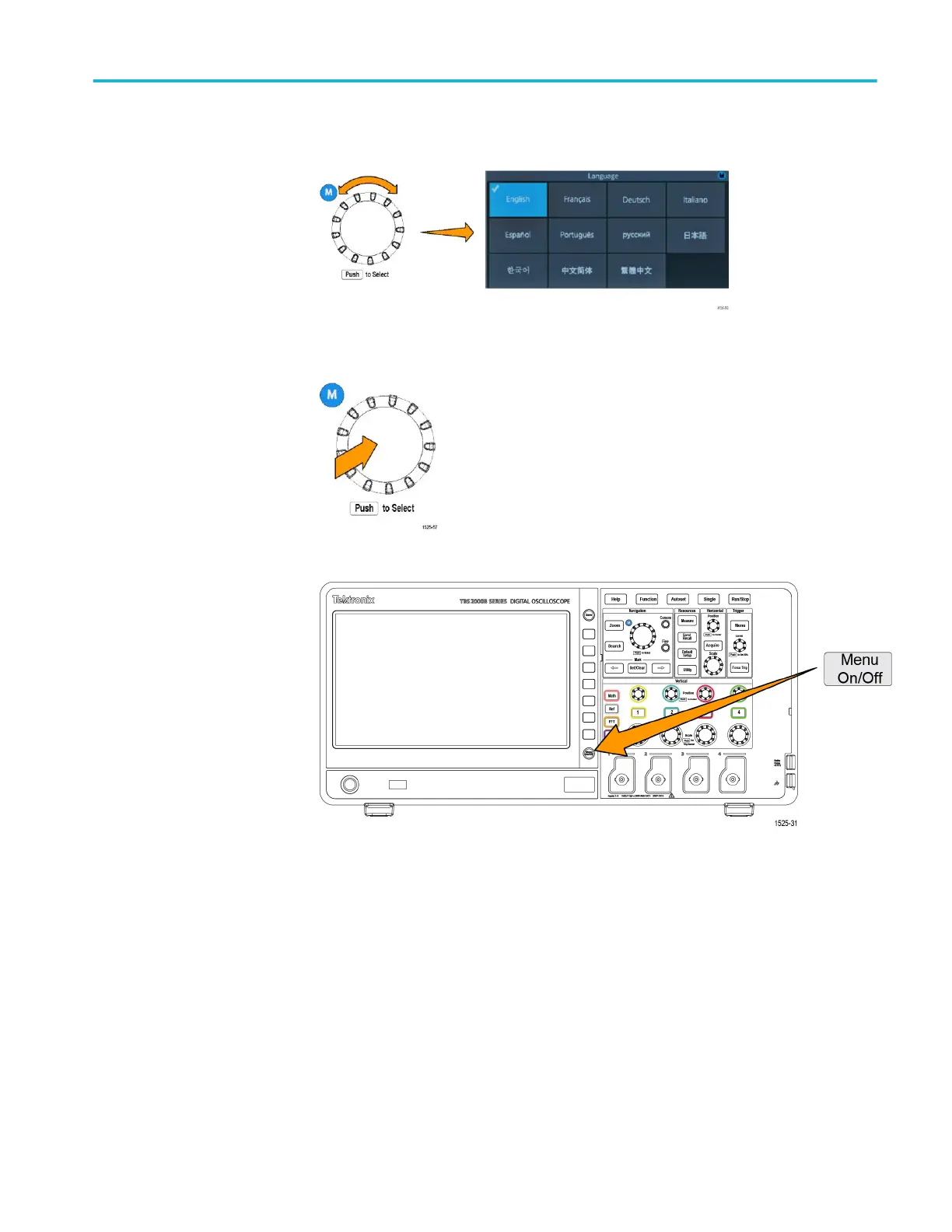

3. Turn the Multipurpose knob to select a language.

4. Push the Multipurpose knob to select the highlighted language. The selected

language takes effect immediately.

5. Push the Menu On/Off button to close the Utility menu.

Getting acquainted with the oscilloscope

TBS2000B Series Oscilloscopes User Manual 17
