Tektronix TCP0030 User Manual

Performance Verification

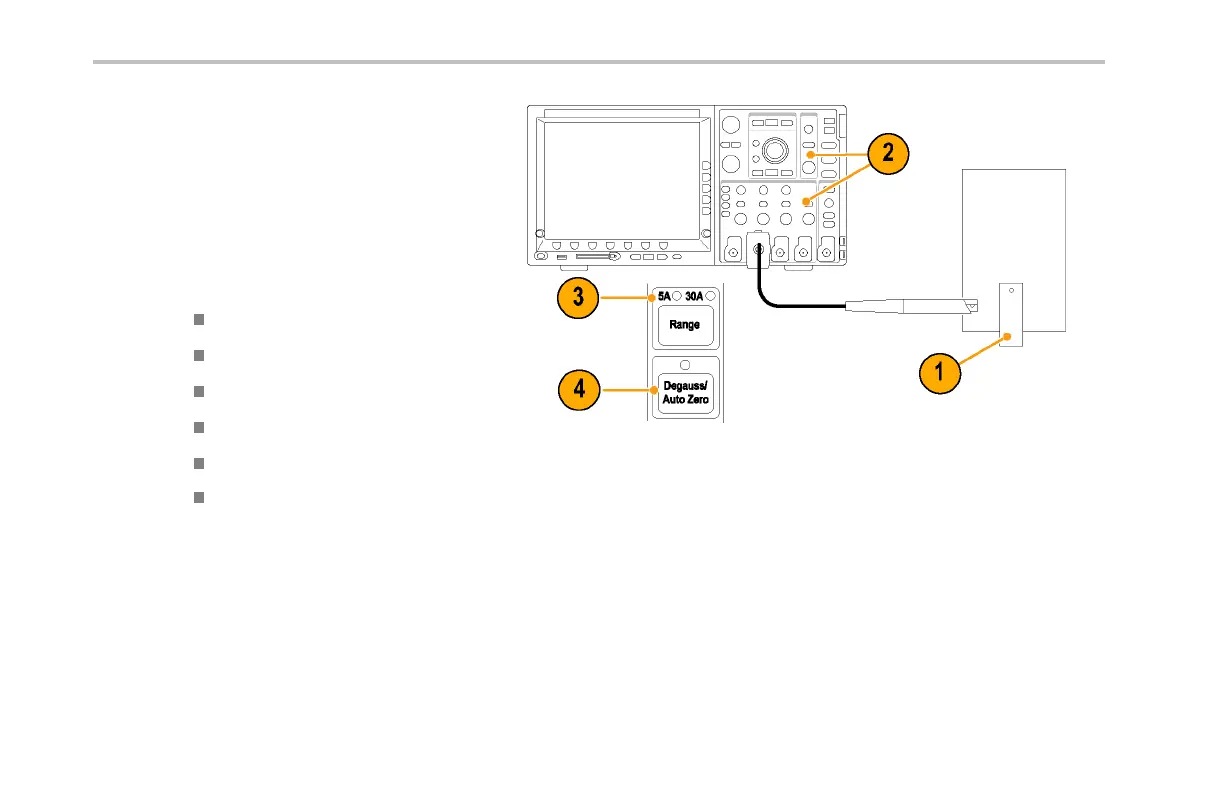

1. Connect the BNC cable to the output of the
pulse gen erator.
2. Connect the other end of the BNC cable to
the HF current loop.
3. Set the pulse gene rator output and pulse
width to m aximum.
4. Set the oscilloscope:
Vertical sensitivity to 200 mA/div
Horizontal to 2 ns/div
Trigger at 50%
Averaging on (32)
Coupling to DC
Automeasurement to Rise Time
5. Set th e probe range to the 5 A setting.
6. Degauss the probe.
60 TCP0030 Current Probe Instruction Manual
