Tektronix TCP0030 User Manual

Performance Verification
7. Clamp the current probe around the HF
current loo p. Verify th at the arrow-shaped
indicator on the probe points away from the
pulse generator.
8. Record the rise time measurement in the
Test Record.

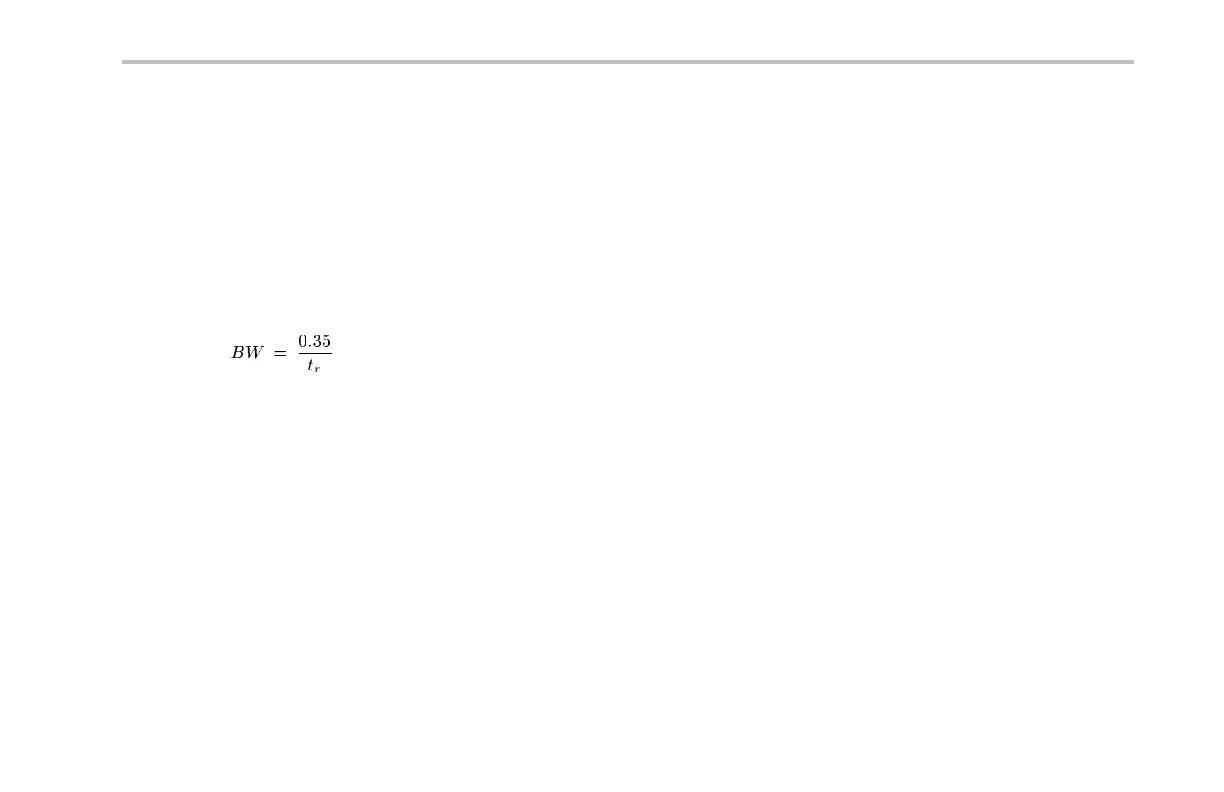

9. Calculate the pro be bandwidth using the
measured rise time in the following formula:
10. Record the calculated bandwidth value in
the test record.
TCP0030 C urren t Probe Instruction Manual 61

Tektronix TCP0030 Specifications

General

Connector Type	BNC
Cable Length	1.5 m
Probe Type	Current Probe
Maximum Peak Pulse Current	30 A
Requires Power Supply	Yes
Sensitivity	1 mA/div
Rise Time	11.7 ns
Input Impedance	1 MΩ
Maximum DC Current	±30 A
