Tektronix TCP0030 User Manual

Adjustments
Adjust the 30 A Range
4. Set the probe range to 30 A.
5. Set the calibrator output to 3.0 A.
6. Set the oscilloscope to 5 A/div.
7. Measure the output amplitude.
8. Calculate the wave form target value (h)
using the calculated o scilloscope gain
accuracy value (b) from step 7 of the
performance test, and the formula shown.

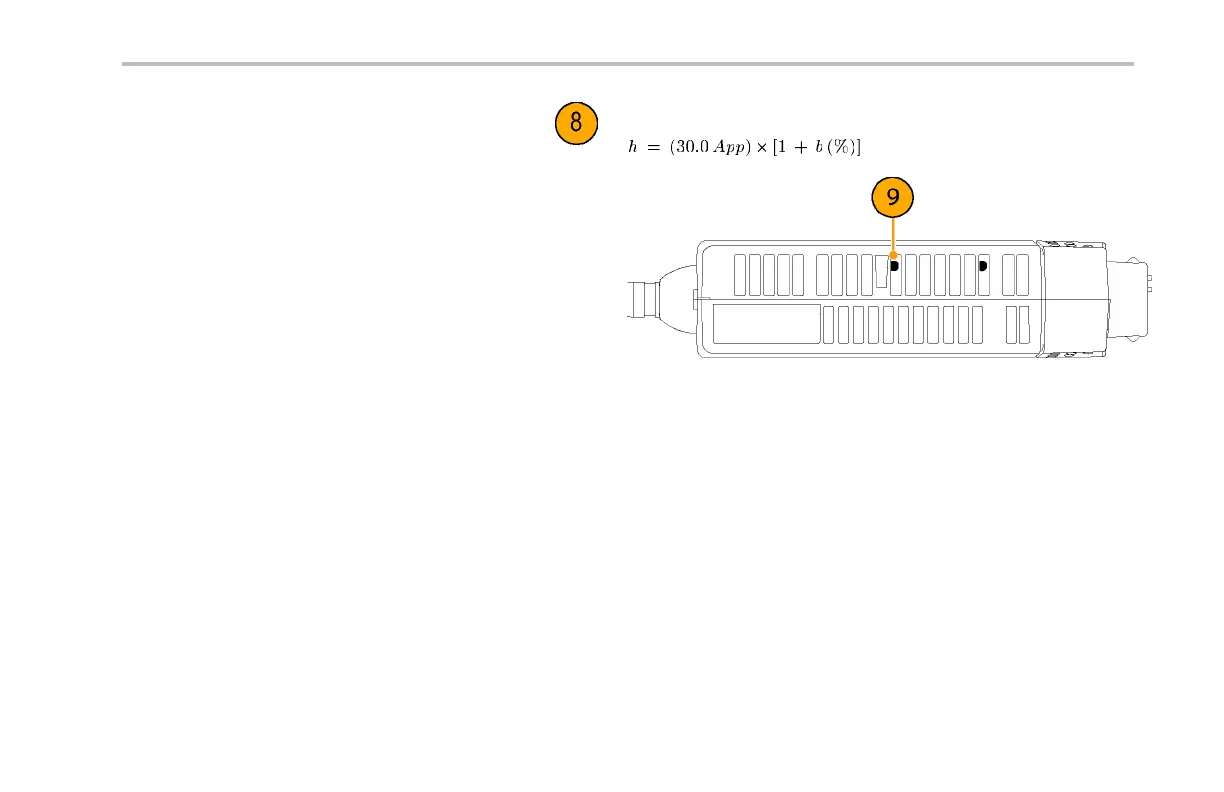

9. Adjust t he 30 A DC gain control in the
probe compensation box to the calculated
target value from step 8, ±0.2A.
10. Disconnect the probe from the current
source.
TCP0030 C urren t Probe Instruction Manual 65
