5-8

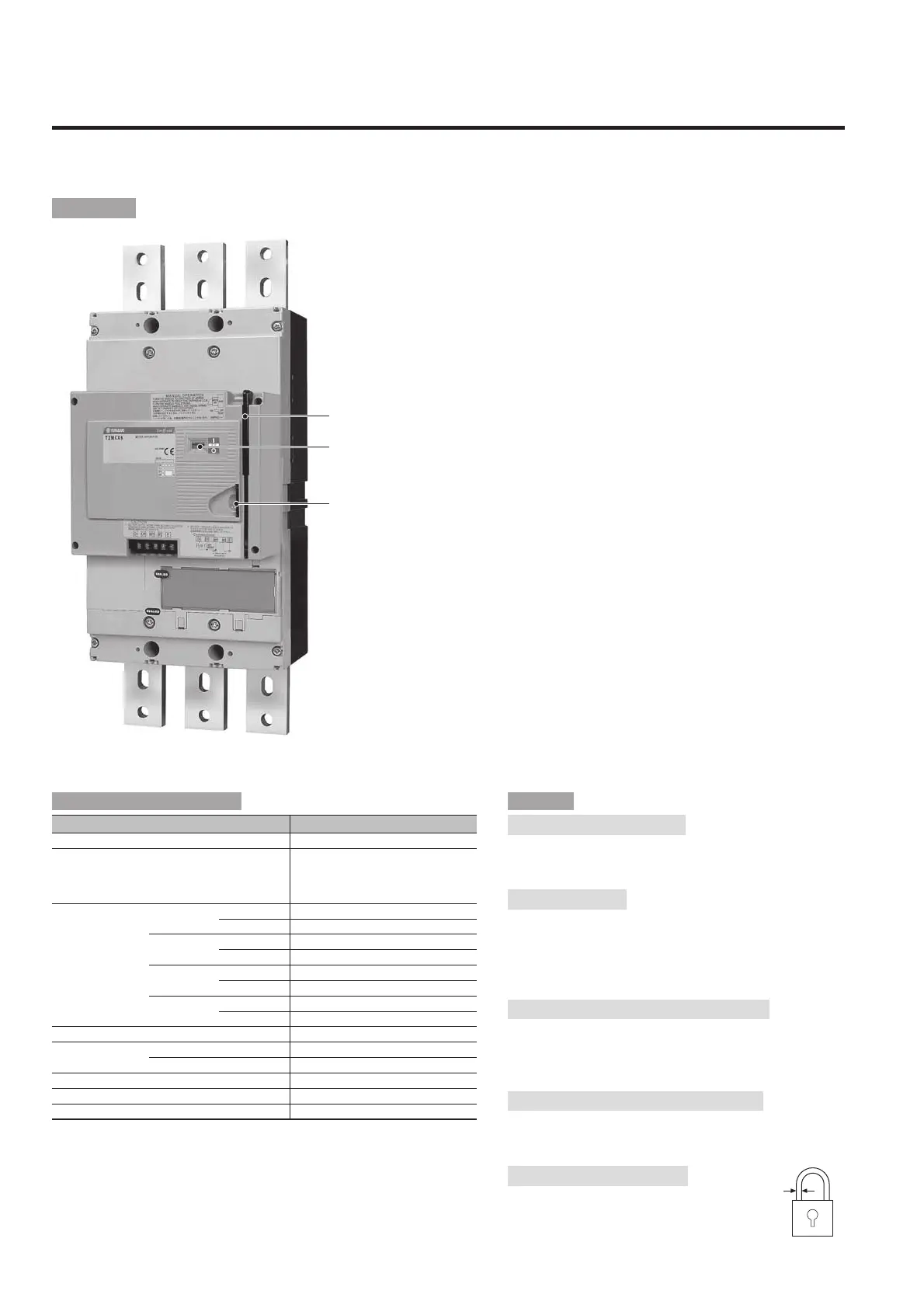

Externally mounted accessories
Manual operating handle
Lock plate
Indicator
Applicablebreakers
T1MCX6
XS1250ND, XS1600ND
●AC100-115V
●AC200-230V
●DC100-110V
●DC24V
Peak steady-state/
starting current, A
2
AC100-115V
―/3.1
1.8/6.0
AC200-230V
―/1.2
1.0/3.2
DC100-110V
―/0.8
1.1/4.2
DC24V
―/4.5
Operationmethod
Springcharged
Operatingtime,s
@ratedvoltage
ON(Max)
0.06
OFF/RESET
3 3
Powersupplyrequired
300VA
Dielectricwithstandvoltage(foroneminute)
AC1500V 4
Weight
6.4kg
Rated operational voltage
1
ON
OFF,RESET
ON
OFF,RESET
ON
OFF,RESET
ON
OFF,RESET
4.0/12.0
1. Motor operators (MC)
Ratings and Specifications Features
Notes:
1 : Permissible operating range is 85 to 110%. A power transformer is available as option for AC380V
or AC400-460V.
2 : The currents shown are the maximum values at the maximum rated operational voltage.
3 : The operating time is the value when the rated operational voltage is supplied.
Loss of the control power in this operating time may cause the motor operator to fail to work.
4 : Dielectric withstand voltage for DC 24 V motor is AC 500 V.
★Clear status indication
Color indication: Red means ON, green OFF and white
TRIPPED.
★Quick closing
Energy in a charged spring closes the breaker 60 msec or
less.
High-speed, time-stable operation is ensured after multi-
ple times of closing cycles.
★Equipped with anti-pumping circuit
When the closing signal is applied, TRIP-RESET-ON
cycles are not repeated even though the cause of tripping
is in the breaker.
★Ease of manual ON-OFF operation
Simply pressing the ON or OFF button closes or opens
the breaker.
★“Lock-in off” capability
This capability allows the breaker to be
padlocked in the OFF state.
Padlocks are not supplied.
φ5 . 5
(
2
)
T1MC
(T1MCX6)
Spring charged type
