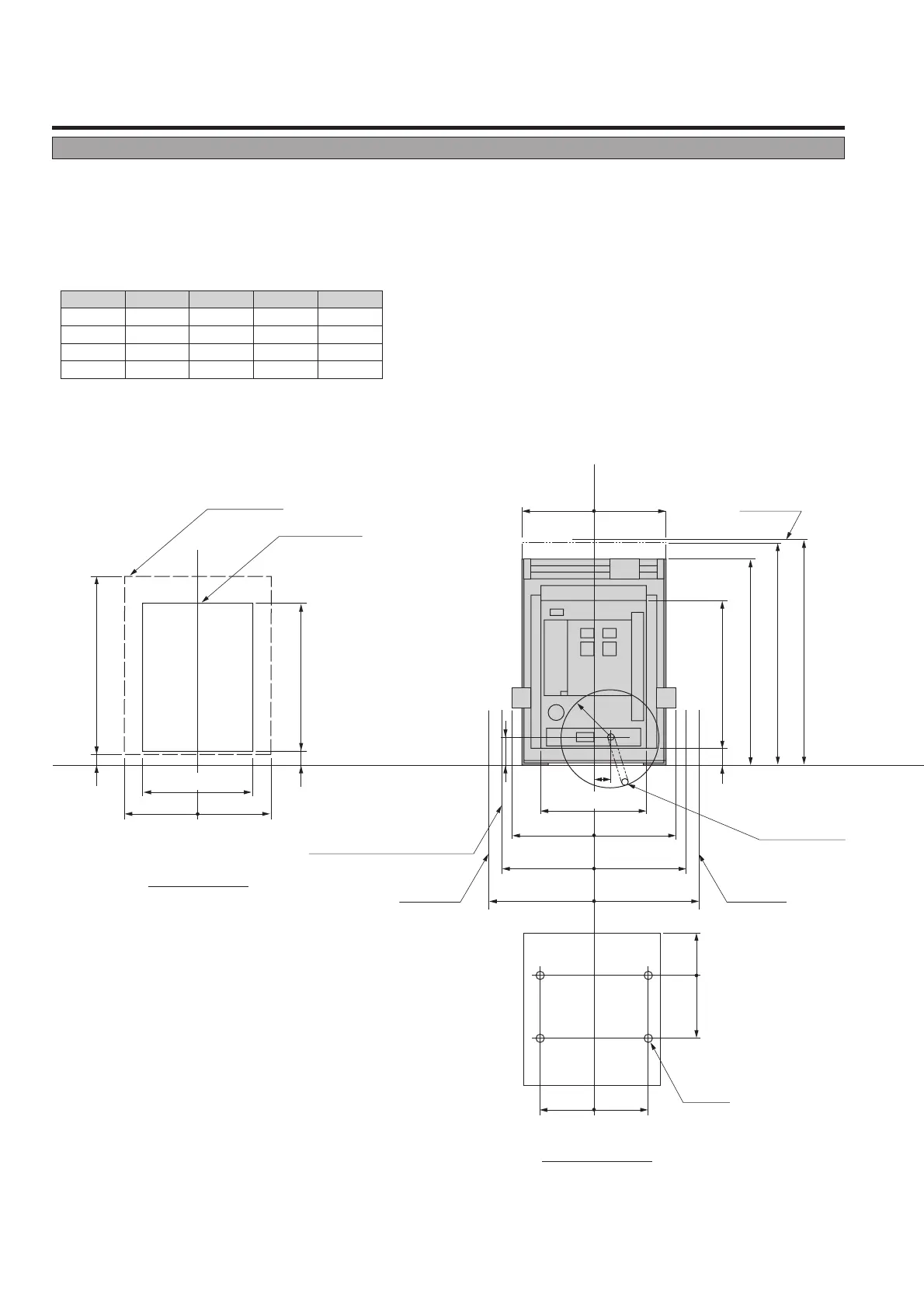

TERASAKI TemBreak 2 - DC Air Circuit Breakers Outline Dimensions

6-2
※
1
: Conductors including connecting bolts should be separated min-
7
mm from Draw-out arm.
※
2
: Panel cut should be
339
mm not
335
mm when the door flange is used.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
40520
335※230
164
P
C
P
C
164
177 177
329 460 490
33
42.5
50
120 120
141 94
4-ø14
238
500
204 204
240 240
250
R116
158.5158.5
rear panel cut
front panel cut
panel cut-out
For fitted with breaker fixing bolts
draw-out handle
Maintenance
space
Maintenance
space
Maintenance
space
Mounting holes
DC Air Circuit Breakers
¡Type AR208S 3P, AR212S 3P, AR216S 3P, AR220S 3P Draw-out type
Terminal size
Type
ｔ
1
○
ｔ
2
○
ｔ
3
○
W
AR216S
20 15 25
22.5
AR220S
20 15 25
―
Outline dimensions (mm)
AR208S
10 10 15
17.5
AR212S
10 10 15
17.5
