Terex Genie GS-1330m Maintenance Manual

November 2021 Maintenance Manual
Annual Maintenance Procedures
Part No. 1305686GT Scissor Lifts 61
Platform Height Sensor
13 Working at platform height sensor assembly,
follow the platform height sensor cable to its
end point at the chassis deck.

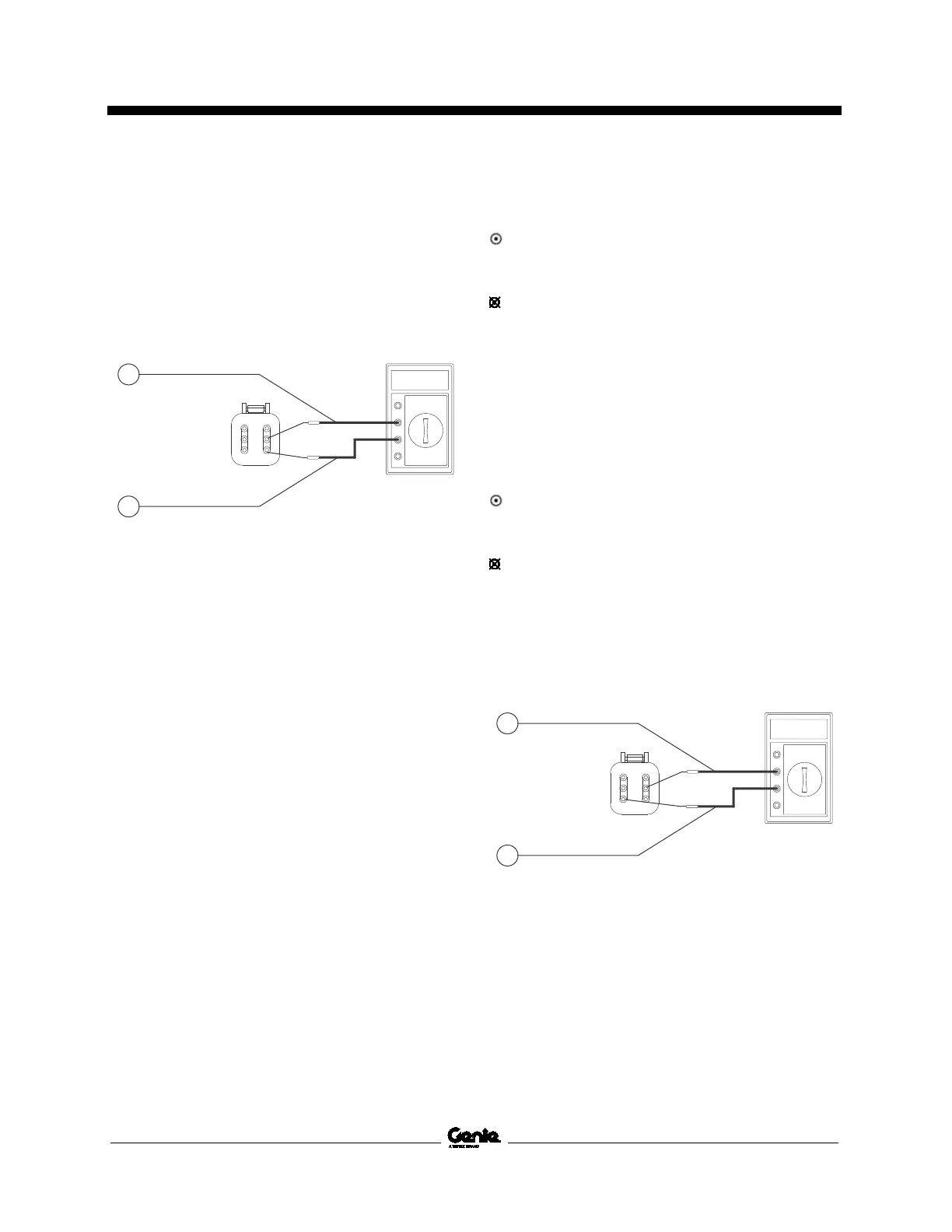

14 Using a multimeter, insert the negative test
lead into terminal 2 of the platform height
sensor cable rubber boot.
1 terminal 2
2 terminal 3
15 Insert the positive test lead into terminal 3 of
the platform height sensor cable rubber boot.
16 Turn the key switch to ground controls and
pull out the ground controls red Emergency
Stop button to the on position.
17 Using the multimeter, measure the voltage
reading of the platform height sensor.
Result: The voltage reading of the platform
height sensor is between 0.5V and 4.5V. The
platform height sensor is functioning properly.
Result: The voltage reading of the platform
height sensor is not within specifications. The
platform height sensor is not functioning
properly. Replace the platform height sensor.
Refer to Repair Procedure in the appropriate
Service and Repair Manual for your machine,
How to Disassemble the Platform Height
Sensor Assembly.
18 Insert the positive test lead into terminal 4 of
the platform height sensor cable rubber boot.
Result: The voltage reading of the platform
height sensor is between 4.5V and 0.5V. The
platform height sensor is functioning properly.
Result: The voltage reading of the platform
height sensor is not within specifications. The
platform height sensor is not functioning
properly. Replace the platform height sensor.
Refer to Repair Procedure in the appropriate
Service and Repair Manual for your machine,
How to Disassemble the Platform Height
Sensor Assembly.
1 terminal 2
2 terminal 4
+
V
1
1
2
3
6
5
4
2
_
+
V
1
1
2
3
6
5
4
2
_
