ACT6000 User Guide – January 2021 Page 17 of 52

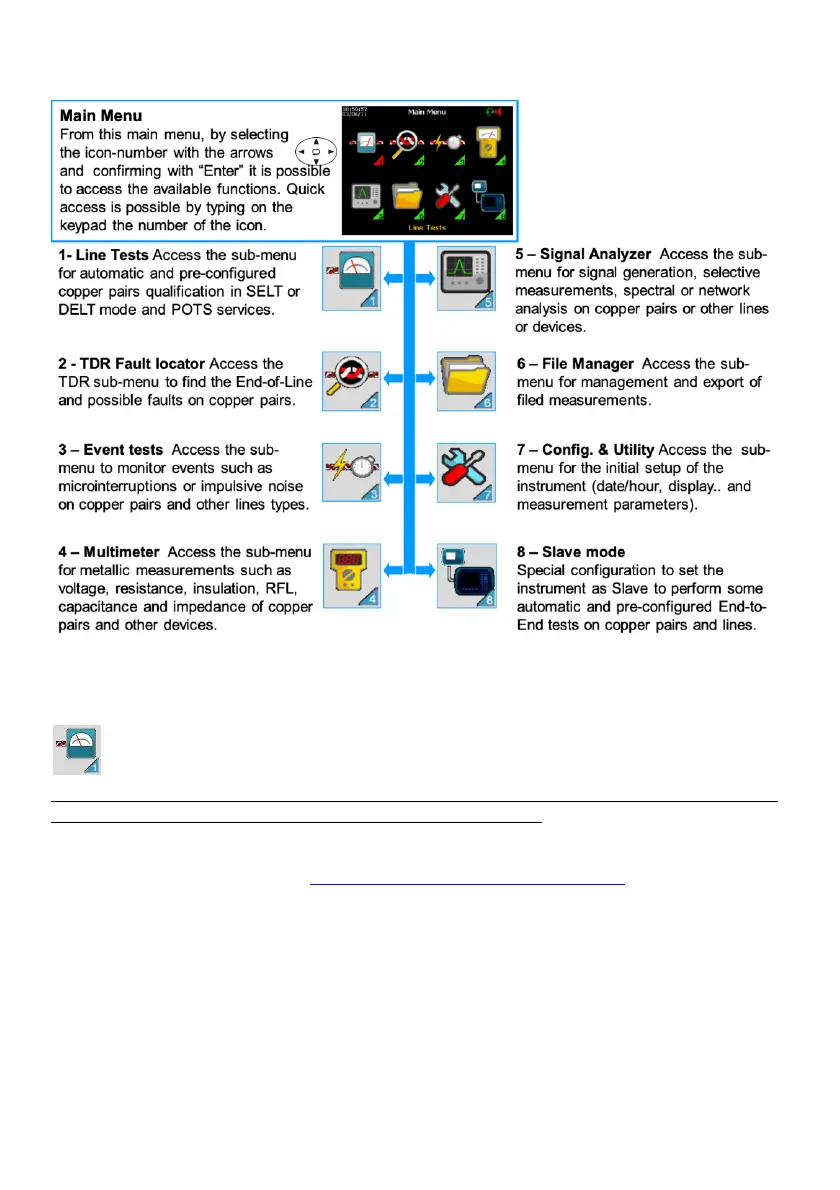

Menu Hierarchy
7. LINE TESTS Pre-configured SELT Sequences (by ASW 1/II)
By the “Advanced Software 1” and DMM module it is possible to perform a
complete and automatic line qualification with single ACT6000 placed on C.O.
MDF or Street Cabinet.
To perform this test is necessary disconnect any xDSL or active device (modem, router or
cordless) at the opposite side (user side) of the line to be test.
Connect the line to the a - b points and “earth” (GND) reference to the c point of the RTX
connector; if Cross-Talk measurement is needed, connect the second line to the
a - b point of the TX connector. Disconnect the AC/DC battery charger !
Before the Test Configuration is suggested to verify (by TDR in manual mode …see at
page 27) the correct the echo of the “end line” from which it is possible to verify the
congruence of the presumed line length after the selection of the preponderant cable type
(…see 8. Cable Setup at page 48).
