www.ti.com

Connector J5

External power connection

Remove R8 and jumper R9

LED connected to pin 12

Jumper J6

Open to disconnect LED

Orient Pin 1 of MSP430 device

Schematics and PCBs

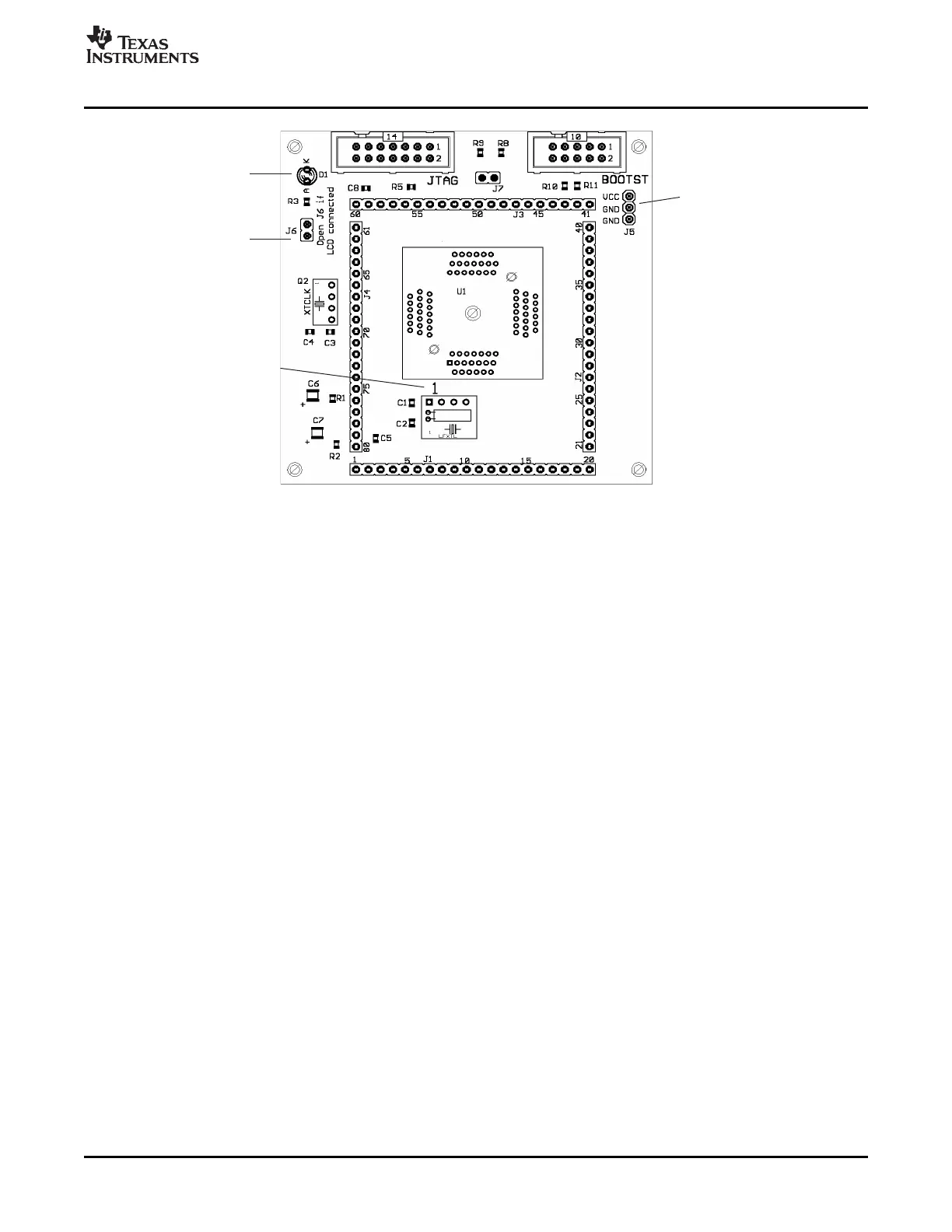

Figure B-16. MSP-TS430PN80 Target Socket Module, PCB

SLAU138F – June 2004 – Revised March 2007 Hardware 53

Submit Documentation Feedback
