Texecom Premier 24 Installation Manual

Premier 24 Installation Manual System Overview
INS248 5

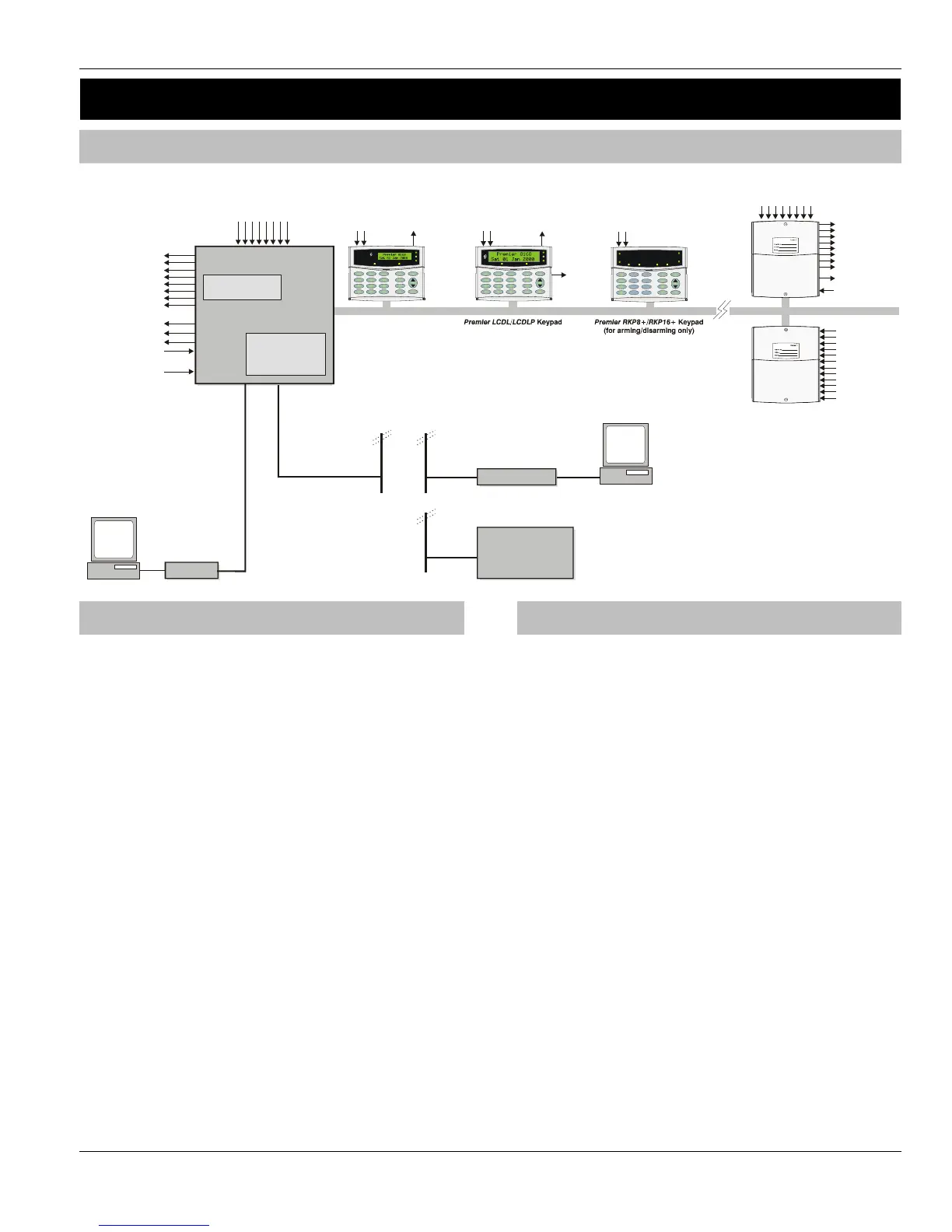

2. System Overview
System Architecture
Speaker
Output
6 Programmable
100mA Outputs
Bell Tamper Input
Auxiliary Tamper Input
Premier 24
Premier LCD/LCDP Keypad
4 Wire Data Network
16 Programmable
100mA Outputs
Premier OP16
Output Module
8 Zone Inputs
A
larm Receiving
Centre
Modem
PC and Modem for
Remote Upload/Download
PC-Com
PC and for
Local Upload/Download
PC-Com
Plug on Digimodem
Plug on
(Com300, Com2400
or ComISDN)
GSM Module
2 Zone
Inputs
1Programmable
100mA Output
2 Zone
Inputs
1Programmable
100mA Output
Speaker Output
8 Zone Inputs
Auxiliary Input
Premier 8XP
Zone Expander
8 Programmable
100mA Outputs
Power
Info.
Ready
ServiceOmi
Power
Info .
Ready
ServiceOmit
Bell Output
Area
Yes
Part
Chime
Omit Reset
Menu
2 abc
No
13 def
6 mno
9 wxyz
5 jkl
8 tuv
0
4
ghi
7 pqrs
Area
Yes
Part
Chime
Omit Reset
Menu
2 abc
No
13 def
6 mno
9 wxyz
5 jkl
8 tuv
0
4
ghi
7 pqrs
Premier
2 Zone
Inputs
Power
Ready
Service
Omit
Area
Yes
Part
Chime
Omit Reset
Menu
2 abc
No
1
3
def
6 mno
9 wxyz
5 jkl
8 tuv
0
4
ghi
7 pqrs
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
Power
Ready
Omit Service
Premier 8XE
Zone Expander
Plug-on
Strobe Output
1 x PGM Output
Control Panel
Premier 24
• 8 fully programmable Single Pole + Global Tamper or End
Of Line zones
• Expandable to 24 zones via keypads and zone expanders
• Up to 4 keypads
• Up to 2 expanders (2 remote or 1 local and 1 remote)
• Up to 1 output module
• 4-wire data network (standard 7/0.2 alarm cable)
• Full arm plus 3 part arms
• Shunt group
• 16 programmable User codes
• 500 Event Log (time & date stamped)
• 500 Event Mandatory Log (time & date stamped)
• 16 character zone text
• 9 programmable outputs (100mA each)
• Facility for Plug-on Digimodem (Com300, Com2400 or
ComISDN)
• Facility for Plug-on GSM Module (Premier ComGSM)
• PC-Com/printer port
Remote Keypads
Premier LCD
• 32 character text display
• 2 fully programmable DP or EOL zones
• 1 fully programmable output (100mA -ve applied)
• Fully adjustable back-lighting, normally bright, dim or off,
changing to bright during entry or following a key press
• Built in piezo sounder
• Programmable ‘Info.’ LED
Premier LCDL
ALL the features of the Premier LCD plus:
• Larger 32 character text display
• Speaker output
Premier LCDP
• LCD keypad with a built in Proximity Tag Reader
Premier LCDLP
• LCDL keypad with a built in Proximity Tag Reader
