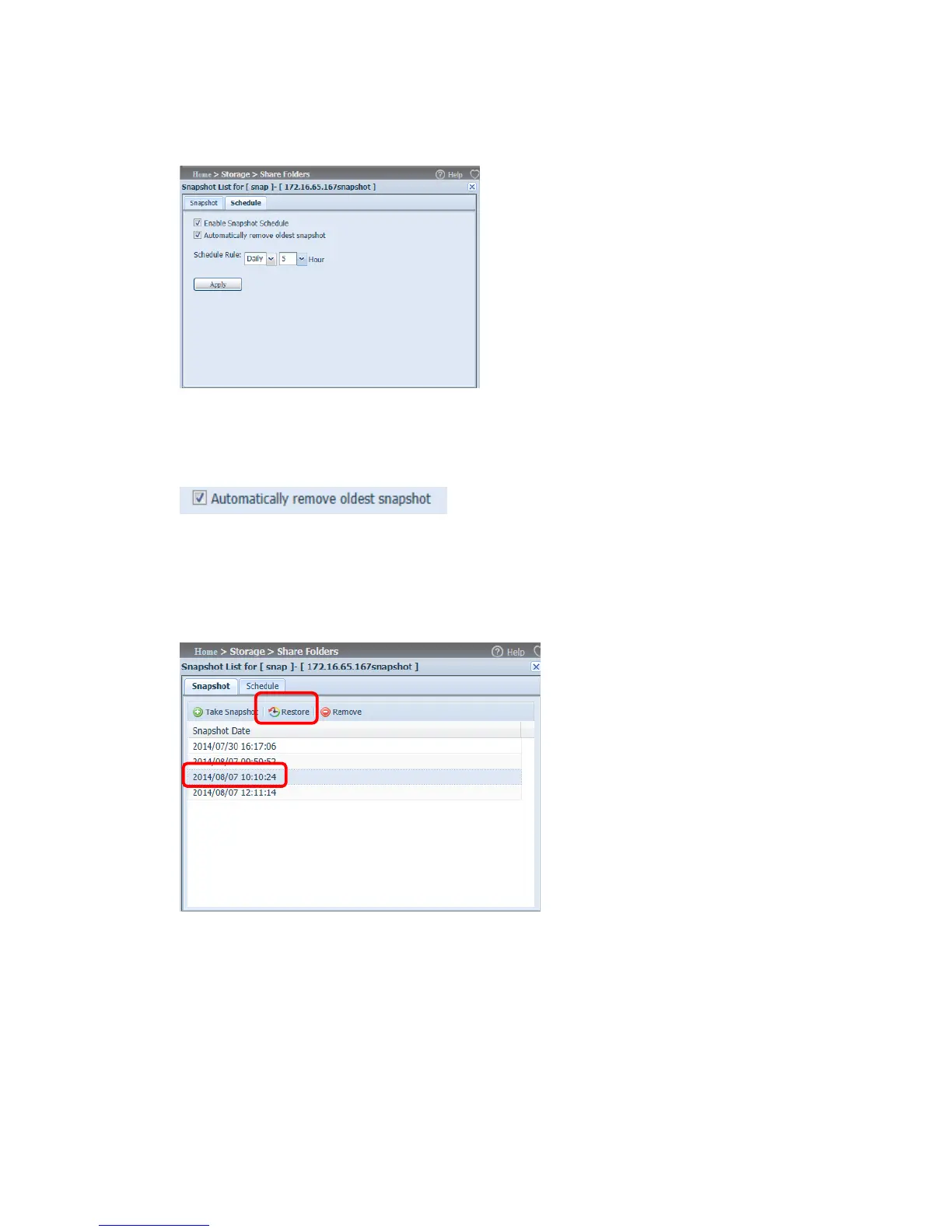

and select the desired Snapshot interval. Options include Daily, Weekly, or
Monthly.
Since files and folders are limited to 16 Snapshots versions, the “Automatically
remove oldest Snapshot” option allows for the removal of the oldest version
automatically once the limit is reached.
Snapshot Restore
To restore a Snapshot, simply select the desired version from list and click
“Restore”. Once the restore confirmation has been made, the selected Snapshot
will overwrite the current associated file or folder.
The other way to restore a recorded Snapshot version is manually by browsing to
the “Snapshot” folder via SAMBA (\\System_IP\Snapshot). All Snapshot versions
are stored here, and you can copy or paste to restore a version manually.
For example, the NAS system at 172.16.65.167 has a folder named “snap” with a
Snapshot version backed up. If the user were to browse to
\\172.16.65.167\Snapshot, the following details would be visible:
