Thecus N7510 User Manual

99
ISO Mount
The ISO Mount feature is a very useful tool from the Thecus products. With it, users
can mount an ISO file and have the export name display all the details from the
mounted ISO file.

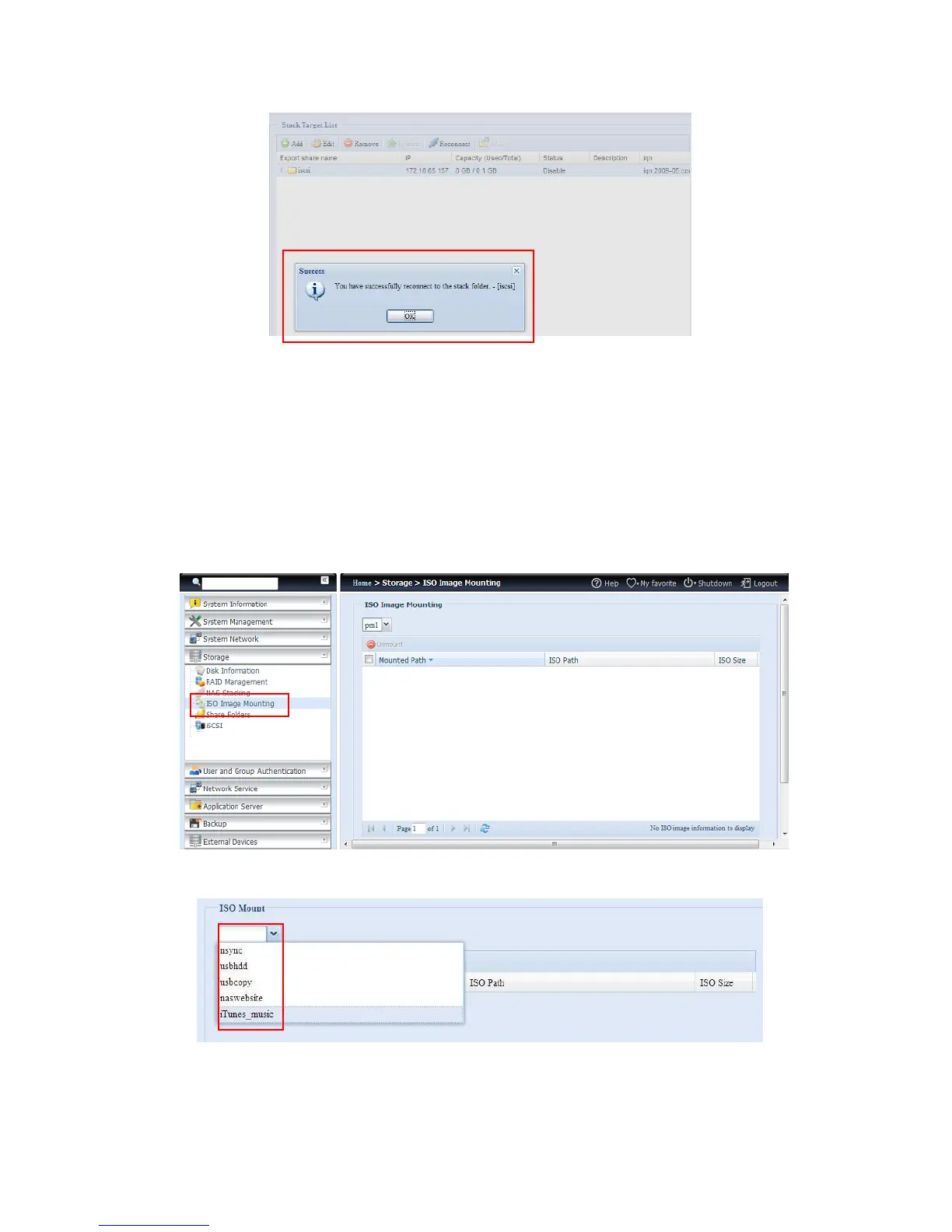

From the main menu, the ISO Mount feature is located under “Storage”. Please
refer the figure below for reference.
Select the ISO Image Mounting function and the ISO Image Mounting window
will appear as shown here.
A. Add an ISO file
From the figure above, select an ISO file from the drop down share list.
After selection, the system will bring up the Mount table screen for further settings.

Thecus N7510 Specifications

General

RAID levels	0, 1, 5, 6, 10, 50, JBOD
Hot-swap drive bays	Yes
Storage drive capacity	- GB
Supported file systems	ext3, ext4, XFS
Storage drive interface	Serial ATA
Total installed storage capacity	- TB
Number of storage drives installed	-
Number of storage drives supported	7
Internal memory	2 GB
Internal memory type	DDR3
Processor family	Intel Atom®
Number of processors installed	1
Data link protocols	TCP/IP/AppleTalk
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	SMB/CIFS, HTTP/HTTPS, FTP, NFS v4, AFP
I/O ports	1 x mic 1 x line-in 1 x audio out
Networking features	Gigabit Ethernet
Compatible operating systems	Windows 2000/XP/2003/Vista/ 7 UNIX/Linux Mac OS X
Security algorithms	256-bit AES
Cables included	AC
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	2
Bundled software	Acronis True Image Thecus Backup Utility
Display type	LCD
Product color	Black, Silver
Power supply unit (PSU) capacity	300 W
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	0 - 80 %
Sustainability certificates	RoHS
Certification	CE/FCC/C-Tick/VCCI/BSMI VMware, Citrix, WEEE

Weight and Dimensions

Depth	270 mm
Width	210 mm
Height	320 mm
Weight	8400 g
