N16000 series:

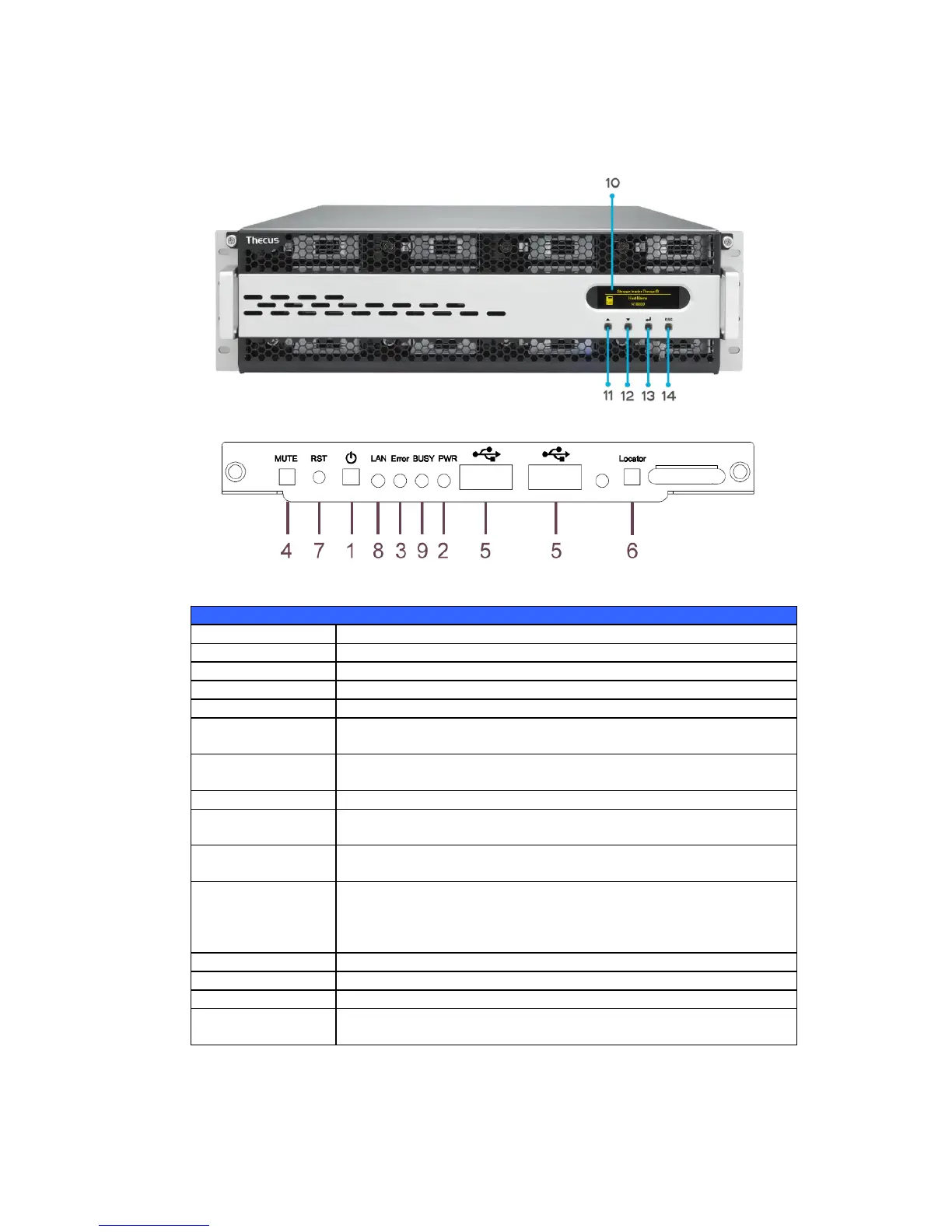

The Thecus N16000 series front panel has the device’s controls, indicators, and
hard disk trays:
Front Panel
Item
Description
1.Power Button
 Power on/off N16000
2.Power LED
 Solid green: System is power on.
3.System error LED
 Solid RED: System error.
4.Mute button
 Mute the system fan alarm.
5.USB Port
 USB 2.0 port for compatible USB devices, such as USB disks and
USB printers
6. Locator button /
LED
 Press the button, the back led will light up to identify the rack
position of the system
7. RST
 Reboot system.
8. LAN
 Blinking green: network activity
 Solid green: network link
9. BUSY
 Blinking orange: system startup or system maintenance; data
currently inaccessible
10.OLED
 Displays current system status and messages
 OLED screen saver will be enabled after screen is idle for more
than 3 minutes
 OLED screen will be turn off after idle for more than 6 minutes
11.Up Button ▲
 Push to scroll up when using the OLED display
12.Down Button ▼
 Push to enter USB copy operation screen
13.Enter Button 
 Push to enter OLED operate password for basic system setting
14.Escape Button
ESC
 Push to leave the current OLED menu

Thecus N7510 Specifications

General

RAID levels	0, 1, 5, 6, 10, 50, JBOD
Hot-swap drive bays	Yes
Storage drive capacity	- GB
Supported file systems	ext3, ext4, XFS
Storage drive interface	Serial ATA
Total installed storage capacity	- TB
Number of storage drives installed	-
Number of storage drives supported	7
Internal memory	2 GB
Internal memory type	DDR3
Processor family	Intel Atom®
Number of processors installed	1
Data link protocols	TCP/IP/AppleTalk
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	SMB/CIFS, HTTP/HTTPS, FTP, NFS v4, AFP
I/O ports	1 x mic 1 x line-in 1 x audio out
Networking features	Gigabit Ethernet
Compatible operating systems	Windows 2000/XP/2003/Vista/ 7 UNIX/Linux Mac OS X
Security algorithms	256-bit AES
Cables included	AC
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	2
Bundled software	Acronis True Image Thecus Backup Utility
Display type	LCD
Product color	Black, Silver
Power supply unit (PSU) capacity	300 W
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	0 - 80 %
Sustainability certificates	RoHS
Certification	CE/FCC/C-Tick/VCCI/BSMI VMware, Citrix, WEEE

Weight and Dimensions

Depth	270 mm
Width	210 mm
Height	320 mm
Weight	8400 g
