Thecus N7510 User Manual

114
9. Enter a LUN Name.
10. Designate the percentage to be allocated from the Allocation drag bar.
11. When iSCSI target volume has been created, the LUN ID is configurable
from 0 to 254 with a default of the next available number in ascending
numerical order. The LUN ID is unique and cannot be duplicated.
12. Choose [ 4K ] block size to have iSCSI target volume over 2TB barrier or [ 512
Bytes ] block size in some application needed.
13. Click OK to create the iSCSI volume.
Modify iSCSI Volume
To modify iSCSI target on the current RAID volume, follow the steps below:

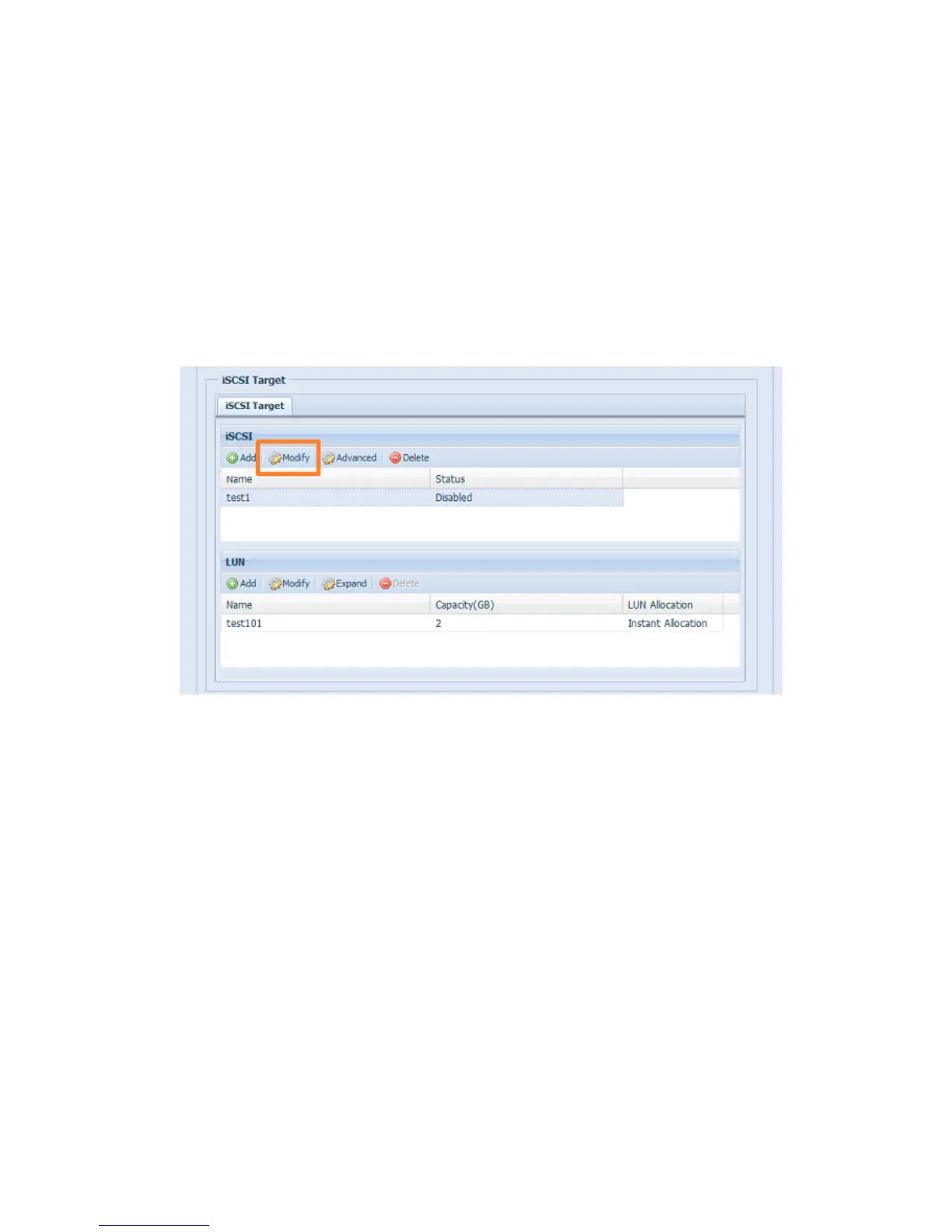

1. Under the iSCSI Target List, click Modify.
The Modify iSCSI Volume screen appears.
2. Modify your settings. Press ok to change.

Thecus N7510 Specifications

General

RAID levels	0, 1, 5, 6, 10, 50, JBOD
Hot-swap drive bays	Yes
Storage drive capacity	- GB
Supported file systems	ext3, ext4, XFS
Storage drive interface	Serial ATA
Total installed storage capacity	- TB
Number of storage drives installed	-
Number of storage drives supported	7
Internal memory	2 GB
Internal memory type	DDR3
Processor family	Intel Atom®
Number of processors installed	1
Data link protocols	TCP/IP/AppleTalk
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	SMB/CIFS, HTTP/HTTPS, FTP, NFS v4, AFP
I/O ports	1 x mic 1 x line-in 1 x audio out
Networking features	Gigabit Ethernet
Compatible operating systems	Windows 2000/XP/2003/Vista/ 7 UNIX/Linux Mac OS X
Security algorithms	256-bit AES
Cables included	AC
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	2
Bundled software	Acronis True Image Thecus Backup Utility
Display type	LCD
Product color	Black, Silver
Power supply unit (PSU) capacity	300 W
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	0 - 80 %
Sustainability certificates	RoHS
Certification	CE/FCC/C-Tick/VCCI/BSMI VMware, Citrix, WEEE

Weight and Dimensions

Depth	270 mm
Width	210 mm
Height	320 mm
Weight	8400 g
