Thecus N7510 User Manual

117
Next, allocate capacity for the iSCSI thin-provision volume by dragging the
Allocation bar to the desired size.

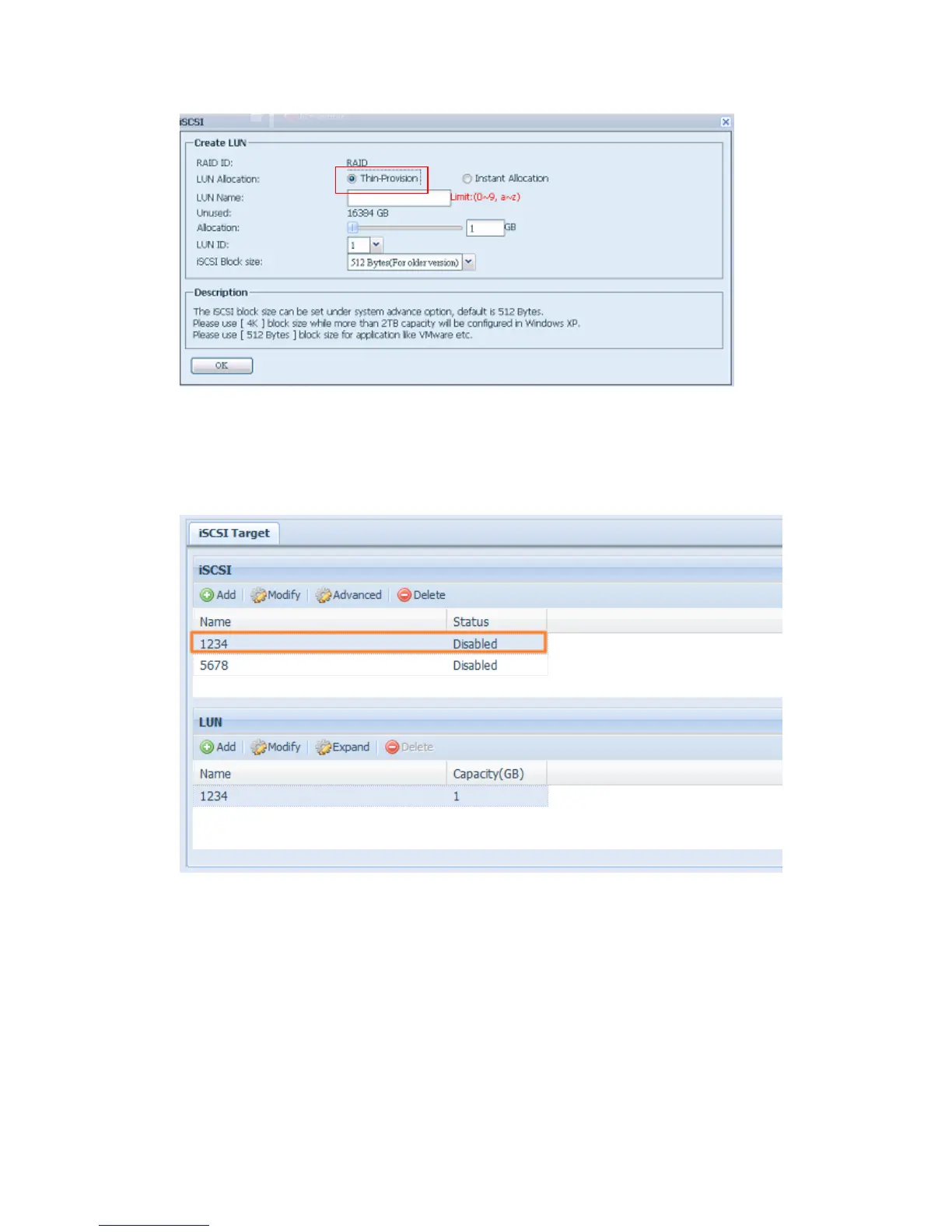

After the size has been determined, click OK to confirm. Now you will see the iSCSI
thin-provisioning volume is available from the list. Please refer to the screenshot
below.
If creating an iSCSI target volume under “Instant Allocation”, physical memory is
assign to the target, being limited by the available memory. For the iSCSI target
volume created under “thin-provisioning”, virtual memory is assigned to the
volume, which can go up to 16384GB (16TB).

Thecus N7510 Specifications

General

RAID levels	0, 1, 5, 6, 10, 50, JBOD
Hot-swap drive bays	Yes
Storage drive capacity	- GB
Supported file systems	ext3, ext4, XFS
Storage drive interface	Serial ATA
Total installed storage capacity	- TB
Number of storage drives installed	-
Number of storage drives supported	7
Internal memory	2 GB
Internal memory type	DDR3
Processor family	Intel Atom®
Number of processors installed	1
Data link protocols	TCP/IP/AppleTalk
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	SMB/CIFS, HTTP/HTTPS, FTP, NFS v4, AFP
I/O ports	1 x mic 1 x line-in 1 x audio out
Networking features	Gigabit Ethernet
Compatible operating systems	Windows 2000/XP/2003/Vista/ 7 UNIX/Linux Mac OS X
Security algorithms	256-bit AES
Cables included	AC
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	2
Bundled software	Acronis True Image Thecus Backup Utility
Display type	LCD
Product color	Black, Silver
Power supply unit (PSU) capacity	300 W
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	0 - 80 %
Sustainability certificates	RoHS
Certification	CE/FCC/C-Tick/VCCI/BSMI VMware, Citrix, WEEE

Weight and Dimensions

Depth	270 mm
Width	210 mm
Height	320 mm
Weight	8400 g
