Thecus N7510 User Manual

140

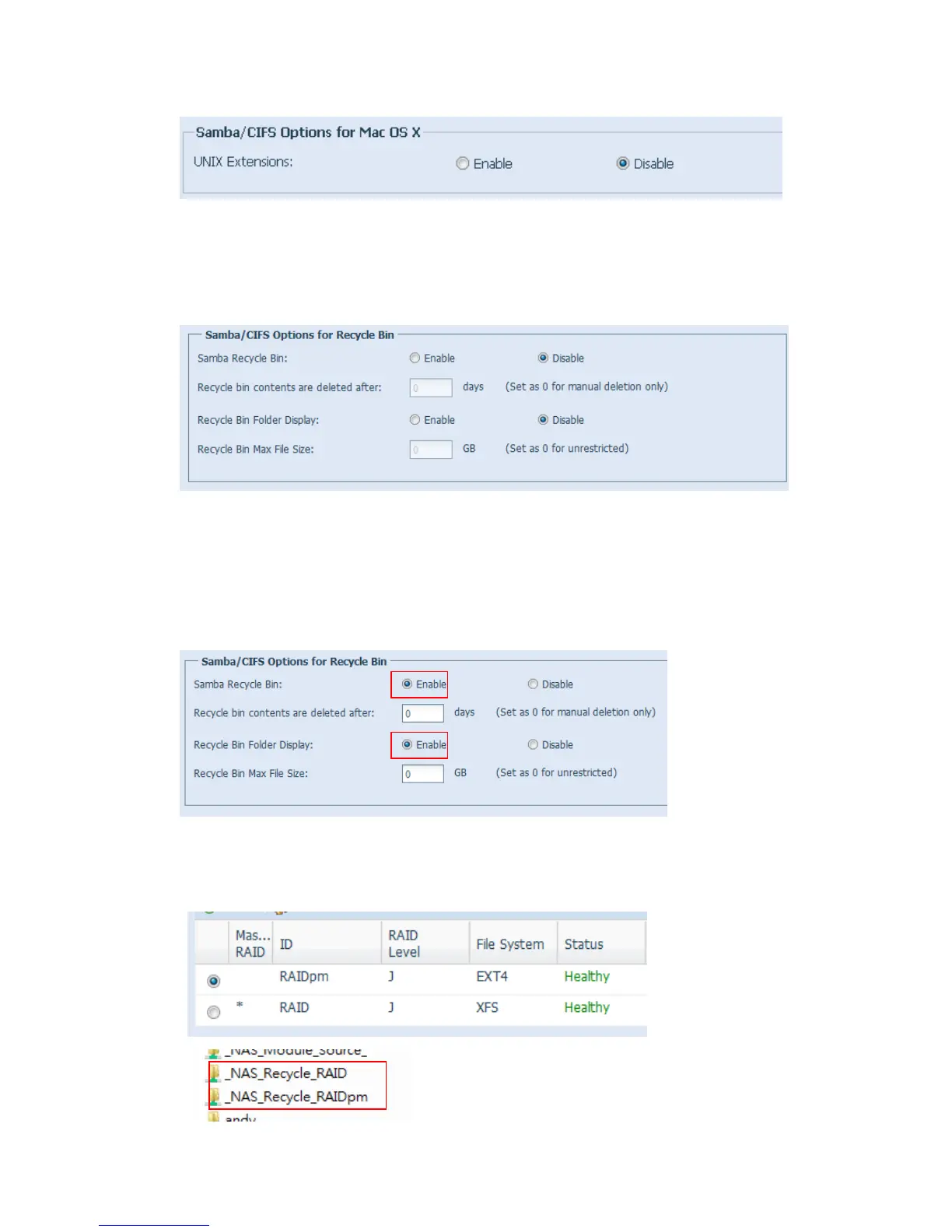

UNIX Extension
The default is enable for Samba usage, with situation using Mac OSX with smb
connection may have permission issue. When it happened, please setup “UNIX
Extension” disable to get issue solved.
Samba Recycle Bin
The Thecus IP storage is supported recycle bin via SMB/CIFS protocol.
Simply enable the “Recycle Bin” function and “Recycle Folder Display” then all of
deleted files/folders will reside in the “_NAS_Recycle_(Associated RDID Volume)”
share folder.
For example, the system has created 2 RAID volumes with ID “RAIDpm” and ‘RAID”.
Then it will have 2 recycle bin folder appear as “_NAS_Recycle_RAID” and
“_NAS_Recycle_RAIDpm”.

Thecus N7510 Specifications

General

RAID levels	0, 1, 5, 6, 10, 50, JBOD
Hot-swap drive bays	Yes
Storage drive capacity	- GB
Supported file systems	ext3, ext4, XFS
Storage drive interface	Serial ATA
Total installed storage capacity	- TB
Number of storage drives installed	-
Number of storage drives supported	7
Internal memory	2 GB
Internal memory type	DDR3
Processor family	Intel Atom®
Number of processors installed	1
Data link protocols	TCP/IP/AppleTalk
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	SMB/CIFS, HTTP/HTTPS, FTP, NFS v4, AFP
I/O ports	1 x mic 1 x line-in 1 x audio out
Networking features	Gigabit Ethernet
Compatible operating systems	Windows 2000/XP/2003/Vista/ 7 UNIX/Linux Mac OS X
Security algorithms	256-bit AES
Cables included	AC
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	2
Bundled software	Acronis True Image Thecus Backup Utility
Display type	LCD
Product color	Black, Silver
Power supply unit (PSU) capacity	300 W
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	0 - 80 %
Sustainability certificates	RoHS
Certification	CE/FCC/C-Tick/VCCI/BSMI VMware, Citrix, WEEE

Weight and Dimensions

Depth	270 mm
Width	210 mm
Height	320 mm
Weight	8400 g
