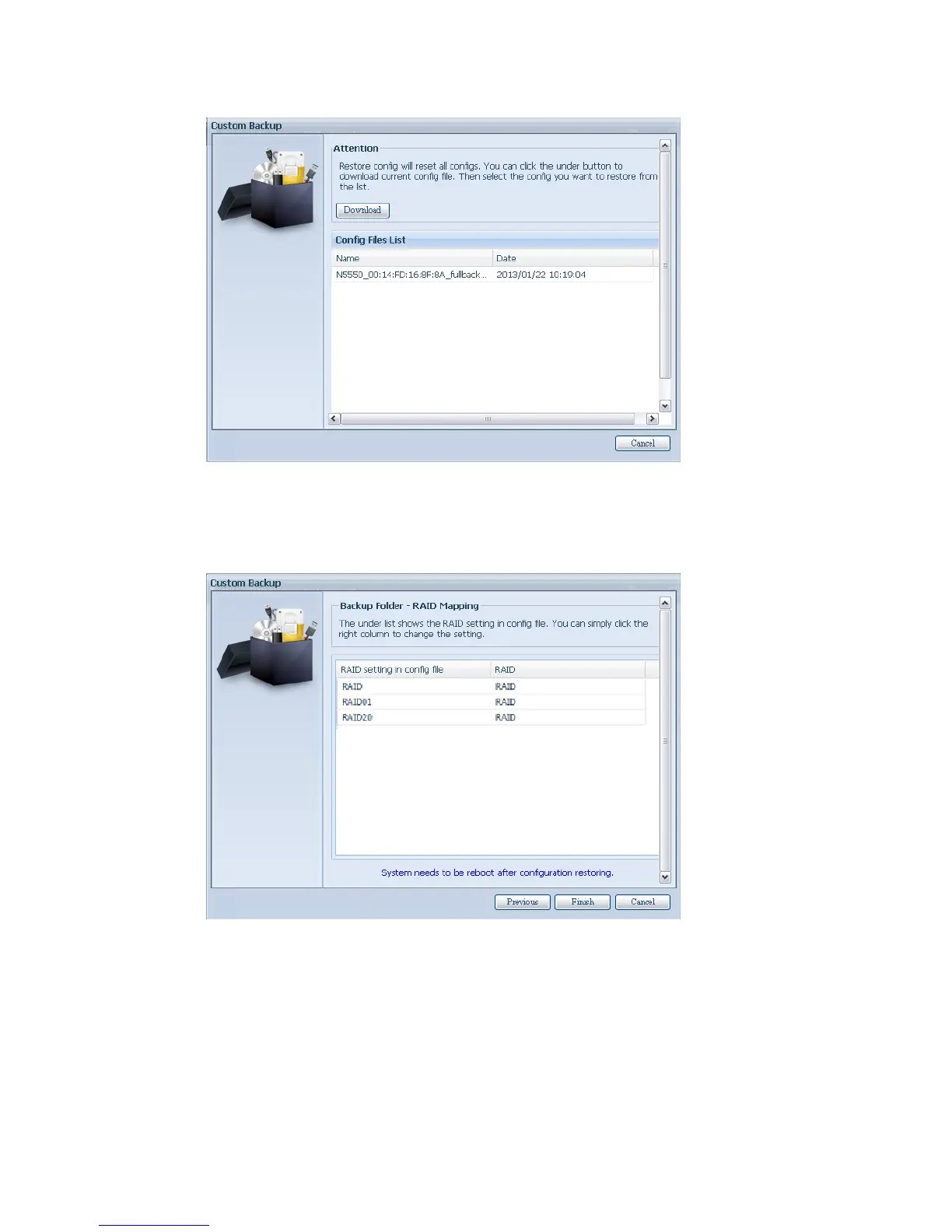

4. After clicking “Next”, a screen will appear as shown below. Listed on the left
hand side, you will see the configuration backup details which contain the 3
RAID volumes. On the right hand side, you will see a list of single “RAID”
volume. You may roll back to previous page to recall the example we have
taken.
5. The backup configuration has different numbers of RAID volume than the
current system (3 vs 1). It can be kept as the RAID volume mapping arranged
by the system, then carry on to click “Finish”. This means that all 3 RAID
volumes configuration such as share folder etc. will all restore to the current
unit in the RAID volume “RAID”.
6. In other circumstances, if the current unit contains 2 RAID volumes, then it can
be chosen from the left hand side of system backup configuration RAID volume
list which RAID volume to map to the current system.
Let’s see the following screen to make it clearer.
