Thecus N7510 User Manual

21
N4510U PRO:

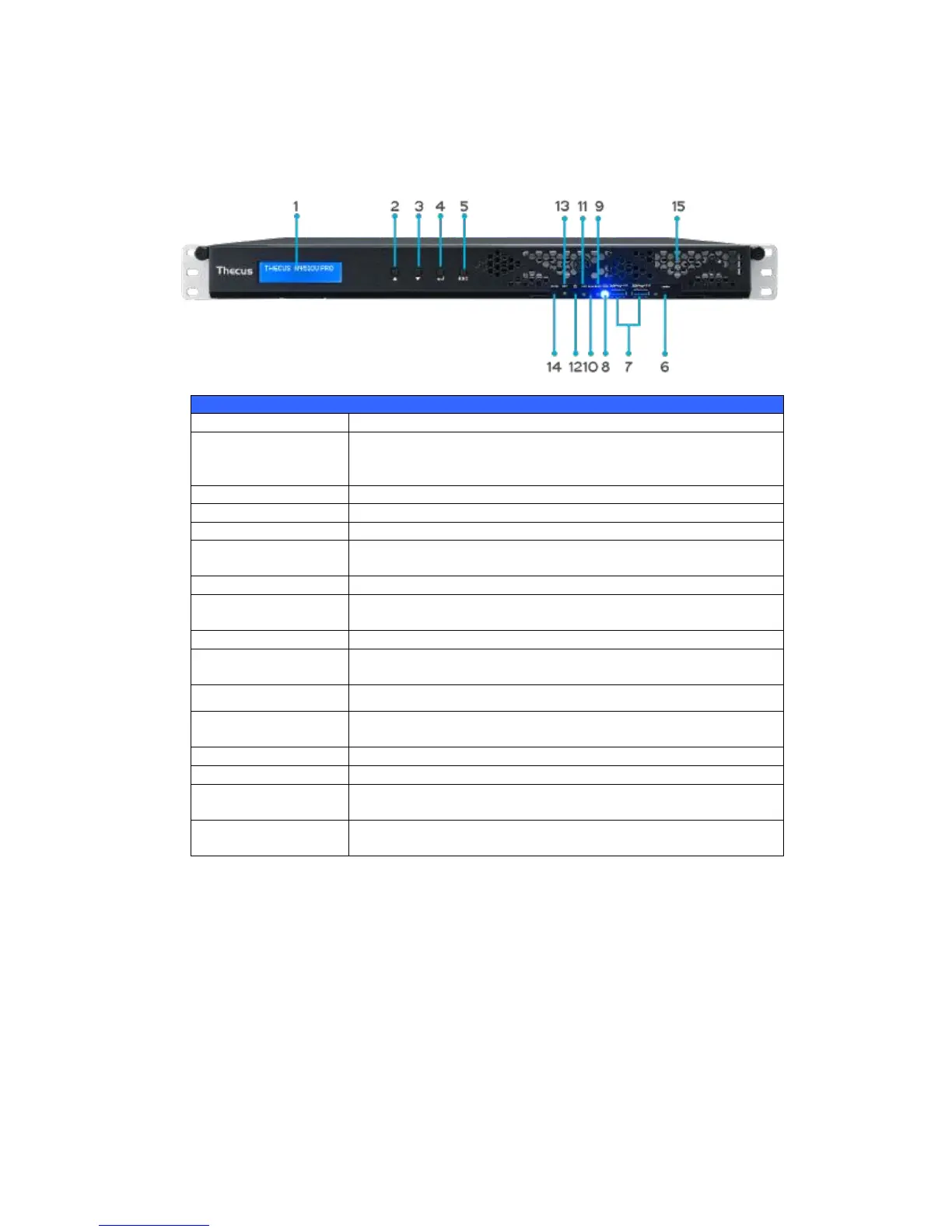

The Thecus N4510U PRO front panel has the device’s controls, indicators, and
hard disk trays:
Front Panel
Item
Description
1. LCD Display
 Displays the current system status and warning messages.
 Displays hostname, WAN/LAN1 IP addresses, RAID status,
and current time.
2. Up Button ▲
 Push to scroll up when using the LCD display.
3. Down Button ▼
 Push to scroll down when using the LCD display.
4. Enter Button 
 Push to confirm information entered into the LCD display.
5. Escape Button
ESC
 Push to leave the current LCD menu.
6. Locator Button
 Turns on the LED backlight.
7. USB Port
 USB 3.0 port for compatible USB devices, such as digital
cameras, USB disks, and USB printers.
8. PWR LED
 Solid Blue: System is powered on.
9. Busy LED
 Blinking orange: system startup or system maintenance;
data currently inaccessible
10. Error LED
Solid Red: System alert: Redundant power or system fan failure
11. LAN LED
 Solid green: network link
 Blinking green: network activity
12. Power Button
 Power the N4510U PRO on/off.
13. Reset Button
 Resets the N4510U PRO.
14. Mute Button
 Mutes the system fan alarm (Can also be managed through
the UI)
15. HDD Trays
 Four 3.5” SATA HDD trays.
 Locks are provided for added security.

Thecus N7510 Specifications

General

RAID levels	0, 1, 5, 6, 10, 50, JBOD
Hot-swap drive bays	Yes
Storage drive capacity	- GB
Supported file systems	ext3, ext4, XFS
Storage drive interface	Serial ATA
Total installed storage capacity	- TB
Number of storage drives installed	-
Number of storage drives supported	7
Internal memory	2 GB
Internal memory type	DDR3
Processor family	Intel Atom®
Number of processors installed	1
Data link protocols	TCP/IP/AppleTalk
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	SMB/CIFS, HTTP/HTTPS, FTP, NFS v4, AFP
I/O ports	1 x mic 1 x line-in 1 x audio out
Networking features	Gigabit Ethernet
Compatible operating systems	Windows 2000/XP/2003/Vista/ 7 UNIX/Linux Mac OS X
Security algorithms	256-bit AES
Cables included	AC
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	2
Bundled software	Acronis True Image Thecus Backup Utility
Display type	LCD
Product color	Black, Silver
Power supply unit (PSU) capacity	300 W
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	0 - 80 %
Sustainability certificates	RoHS
Certification	CE/FCC/C-Tick/VCCI/BSMI VMware, Citrix, WEEE

Weight and Dimensions

Depth	270 mm
Width	210 mm
Height	320 mm
Weight	8400 g
