Thermal Dynamics CUTMASTER 60i Service Manual

CUTMASTER 60i
Manual 0-5475 INTRODUCTION
2-5
3 Phase
3 Phase CutMaster 60i Power Supply Input Cable Wiring Requirements
Input voltage Freq Power Input Suggested Sizes
Volts Hz kVA I max I
1
eff Fuse (amps)
Flexible Cord (Min.
AWG)
3 Phase
208 50/60 9.1 26 18.5 40 12 AWG (2.5mm
2
)
230 50/60 9.1 23.3 16.5 30 12 AWG (2.5mm
2
)
380 50/60 8.9 13.8 9.8 20 14 AWG (2.5mm
2
)
400 50/60 8.9 13.2 9.4 20 14 AWG (2.5mm
2
)
415 50/60 9.1 12.8 9.1 20 16 AWG (1.5mm
2
)
480 50/60 9.2 11.3 8.0 15 16 AWG (1.5mm
2
)
Line Voltages with Suggested Circuit Protection and Wire Sizes
Based on National Electric Code and Canadian Electric Code
Three Phase
NOTE!
Refer to Local and National Codes or local authority having jurisdiction for
proper wiring requirements.
Cable size is de-rated based on the Duty Cycle of the equipment.

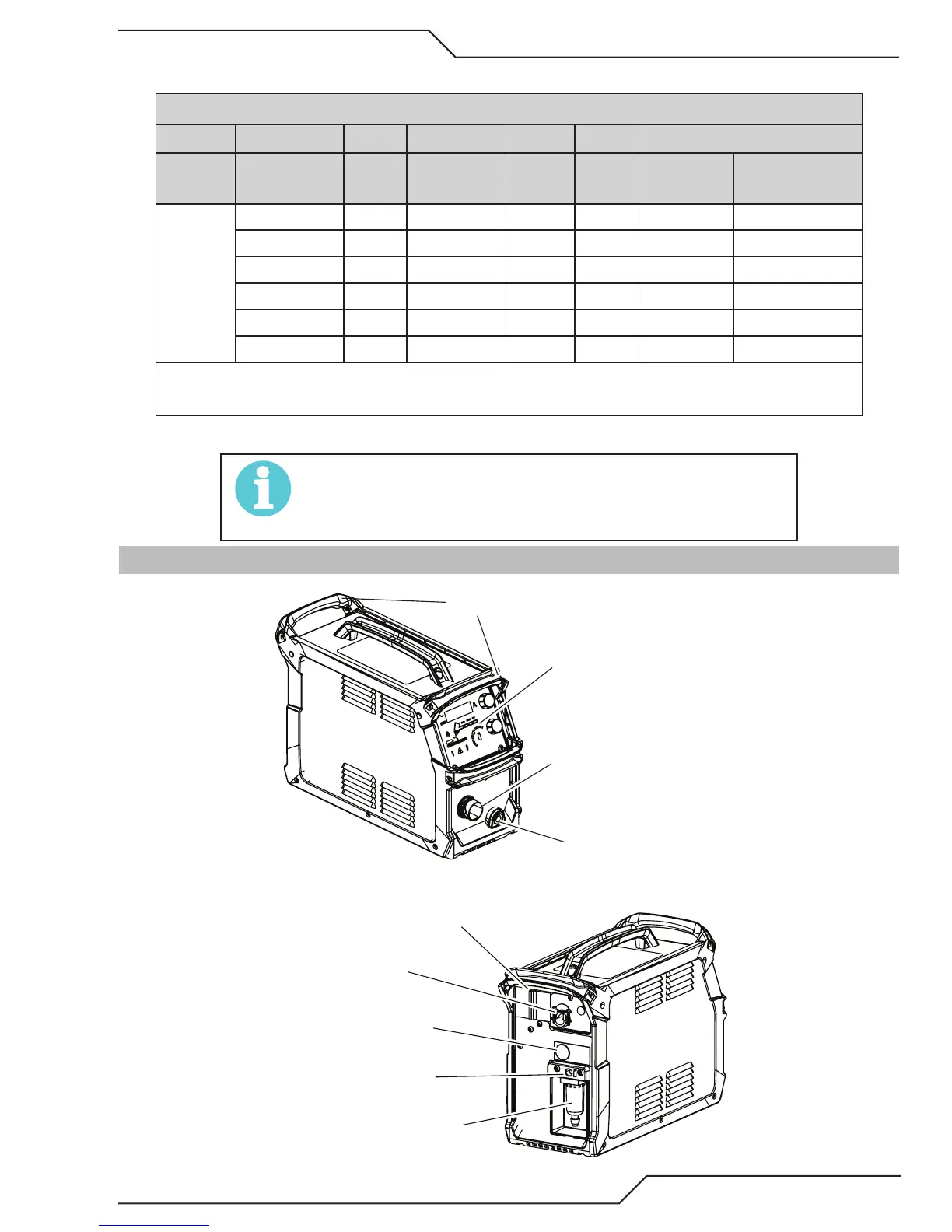

2.06 Power Supply Features
Handle and Leads Wrap
Torch Leads Receptacle
Control Panel
Work Lead Receptacle
Art # A-13258
Input Power Cord
Port for Optional Automation
Interface Cable
Gas Inlet Port
Filter Assembly
Input Power ON/OFF Switch
Art # A-13275
