Thermal Dynamics CUTMASTER 60i Service Manual

CUTMASTER 60i
Manual 0-5475 PARTS LIST
6-5

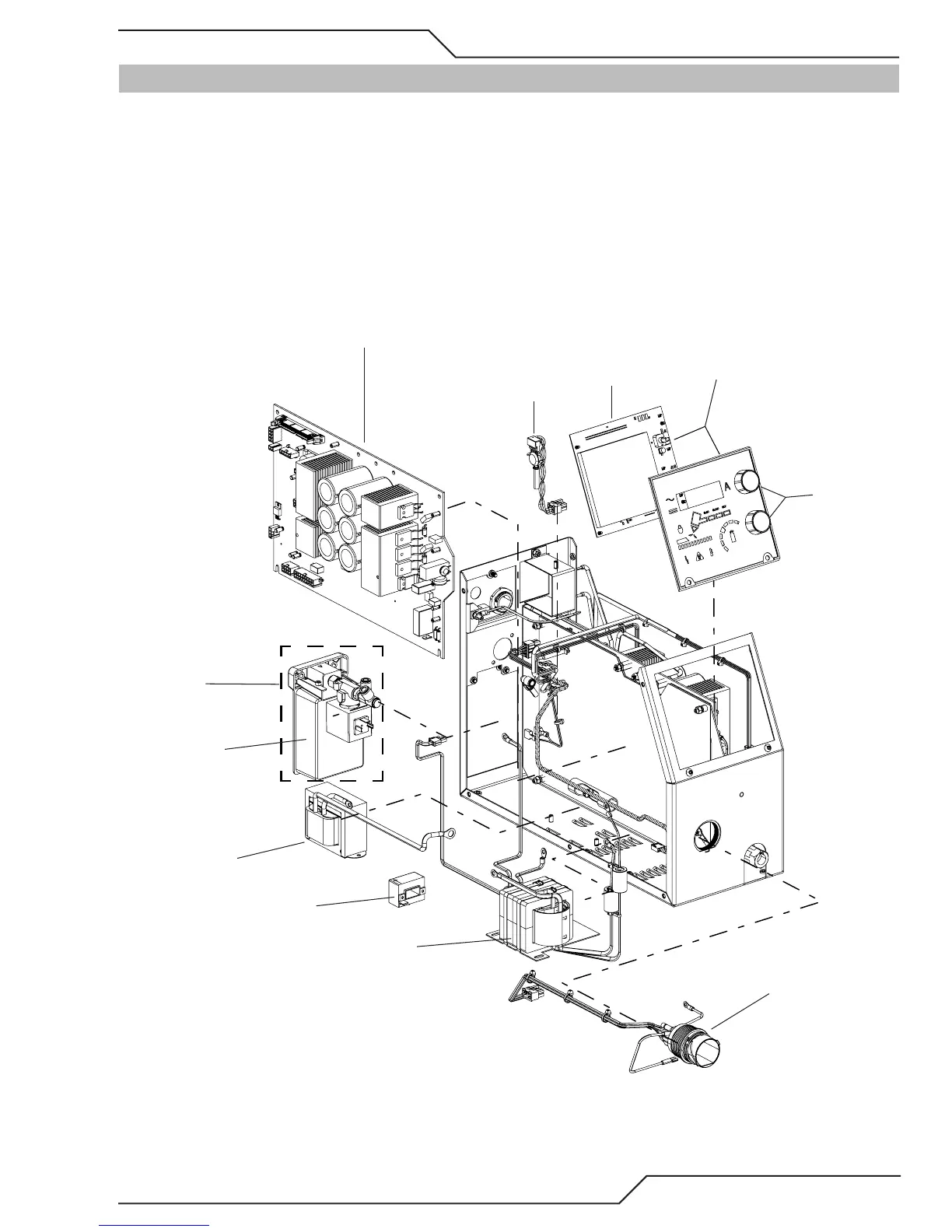

6.08 Left Side Replacement Parts
1 1 PCB, Inverter 10.2KW 9-9671
2 1 Pressure Transducer Assy. 9-9681
3 1 PCB, Control BRD CMi 9-9688
4 1 Assy, Control Board 9-9677
5 1 Knob, 25mm 6mmx4mm D shaft 9-9678
6 1 Assy, ATC conn pwr sup 9-9668
7 1 Assy, Transformer 300V 30K 9-9672
8 1 HCT1 Current Sensor 9-9689
9 1 Inductor, CM60i 9-9679
10 1 Assy, Gas Control CM60i/A40i 9-9666
10a 1 Housing, Filter 9-9707
1
2
3
4
5
6
7
8
9
10
10a
