CUTMASTER 60i
SERVICE Manual 0-5475
5-10
5.07 Power OFF Advanced Troubleshooting
Power OFF Tests
Checks before applying power with the power cord not plugged in:
Cover Removal
WARNING
Disconnect primary power to the system
before disassembling the torch, leads, or
power supply.
1. Remove input power from the system then remove the ten, M5x0.8x16mm hex screws (5 on each side) that
secure the cover assembly to the power supply. Do not remove the screws securing the handles to the cover.

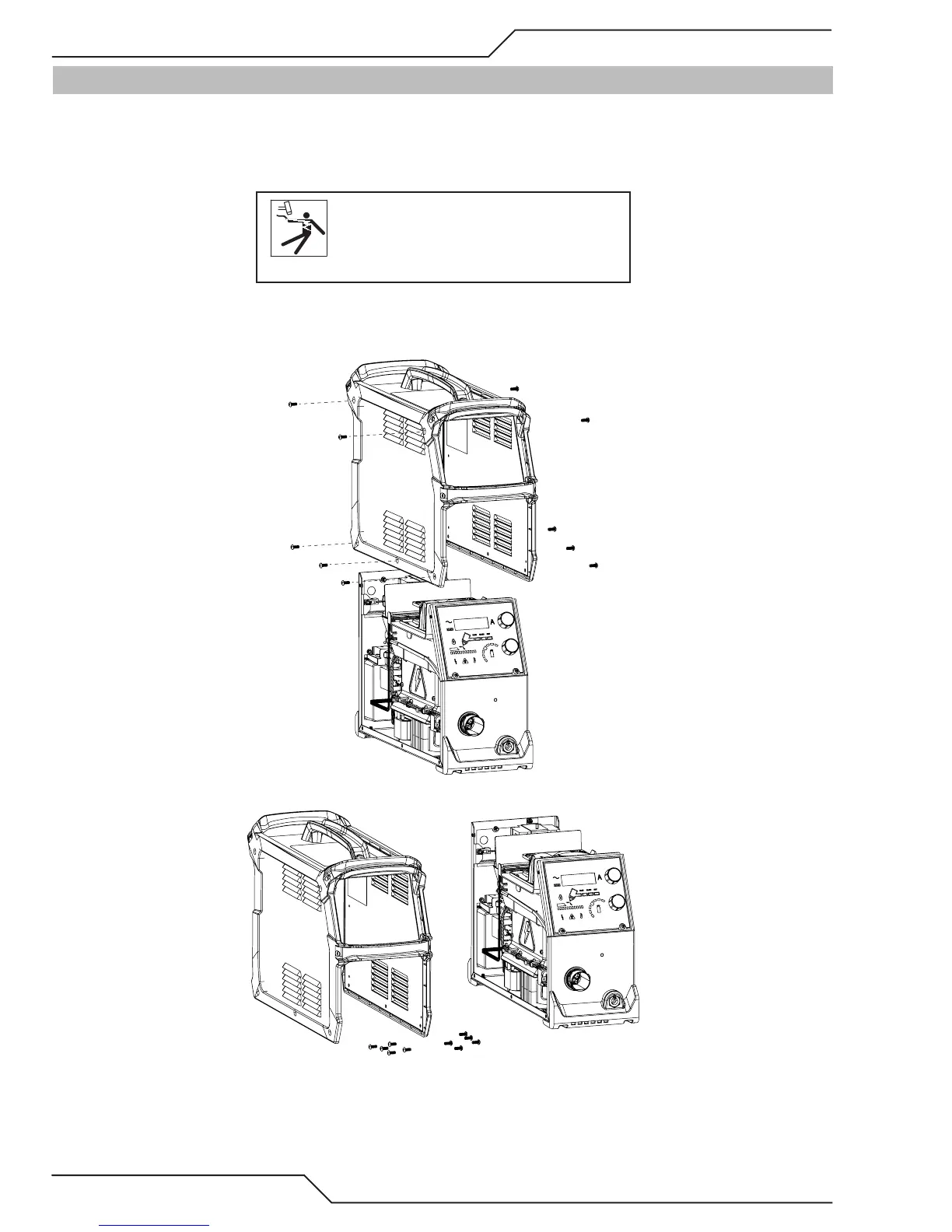

Art # A-13308
2. Carefully lift cover up and away. All handles and side bezels should be connected to the cover.
Art # A-13309
