CUTMASTER 60i
INTRODUCTION Manual 0-5475
2-2
2.03 Receipt Of Equipment
When you receive the equipment, check it against the invoice to make sure it is complete and inspect the equipment
for possible damage due to shipping. If there is any damage, notify the carrier immediately to file a claim. Furnish
complete information concerning damage claims or shipping errors to the location in your area listed on the back
cover of this manual.
Include all equipment identification numbers as described above, along with a full description of the parts in error.

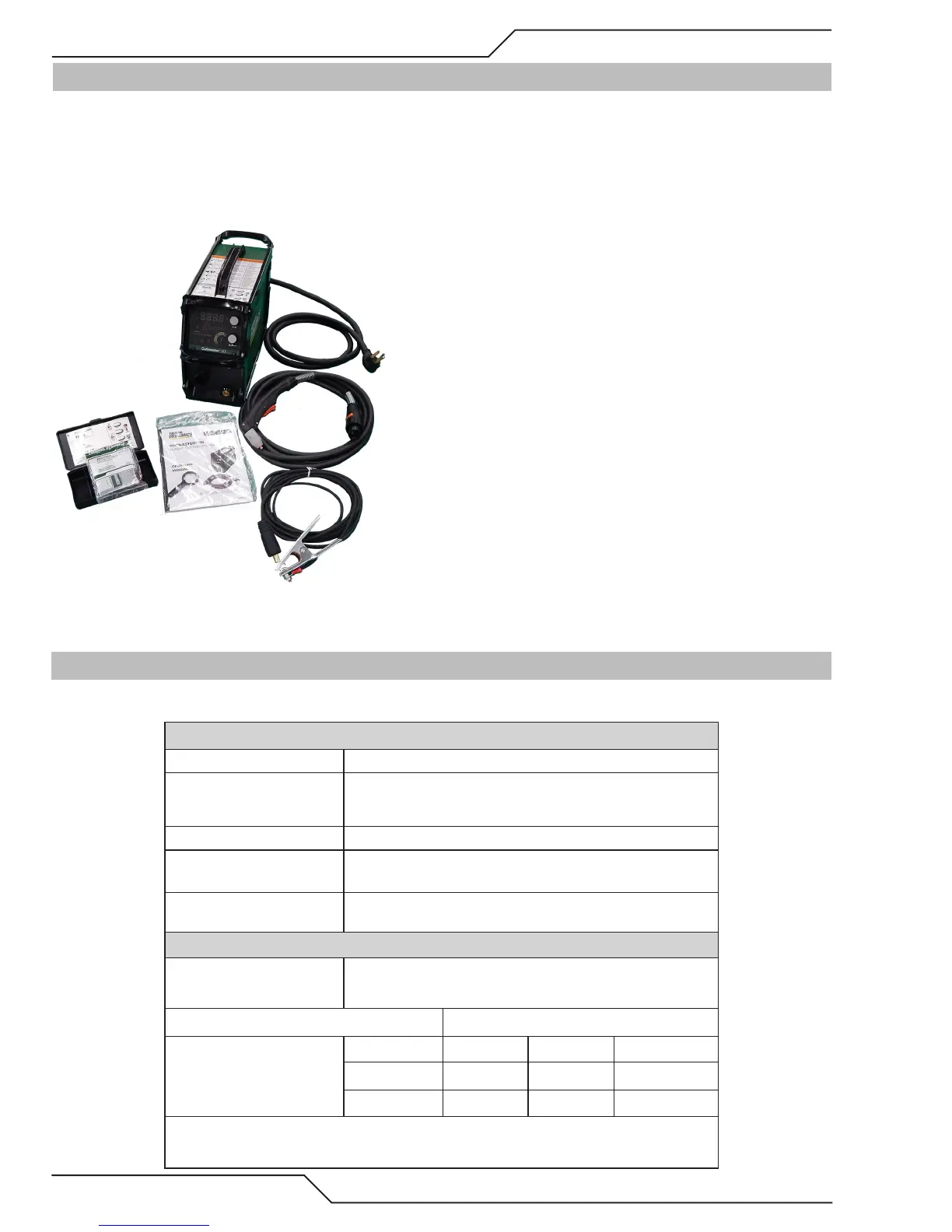

Art# A-13290
Included items:
• 60i Power Supply
• SL60QD™ Torch and Leads
• Work Lead with Work Clamp
• Spare Parts Kit ( 2 Electrodes, 2 Tips, 6 O-rings)
• Operating Manual
• Filter Wrench
Move the equipment to the installation site before un-boxing the unit. Use care to avoid damaging the equipment when
opening the box.
2.04 Power Supply Specifications
1 Phase
60i 1 Phase Power Supply Specifications
Input Power 208 - 480 VAC(187 - 528 VAC), Single Phase, 50/60 Hz
1 Phase Input Power Cable
Power Supply includes 9' single phase 8AWG 3/C input
cable with NEMA 6-50P Plug..
Output Current 10 - 60 Amps, Continuously Adjustable
Power Supply Gas Filtering
Ability
Particulates to 5 Microns
Maximum Inlet Pressure 125 PSI (8.6 bar)
60i Power Supply Duty Cycle *
Ambient Air Temperature
Duty Cycle Ratings @ 40° C (104° F)
Operating Range 0° - 50° C
Rating
All Units
Duty Cycle 50% 60% 100%
Current
60 Amps 50 Amps 40 Amps
DC Voltage
126 122 119
* NOTE: The duty cycle will be reduced if the primary input power (AC) is low or the
output voltage (DC) is higher than shown in this chart.
