CUTMASTER 60i
INTRODUCTION Manual 0-5475
2-4
21.121"
536.47 mm
35 lb / 15.875 kg
7.847
199.3 mm
14.146"
359.3 mm
Art # A-13252
15"
381 mm
6"
150 mm
15"
381 mm
6"
150 mm
Art # A-13247

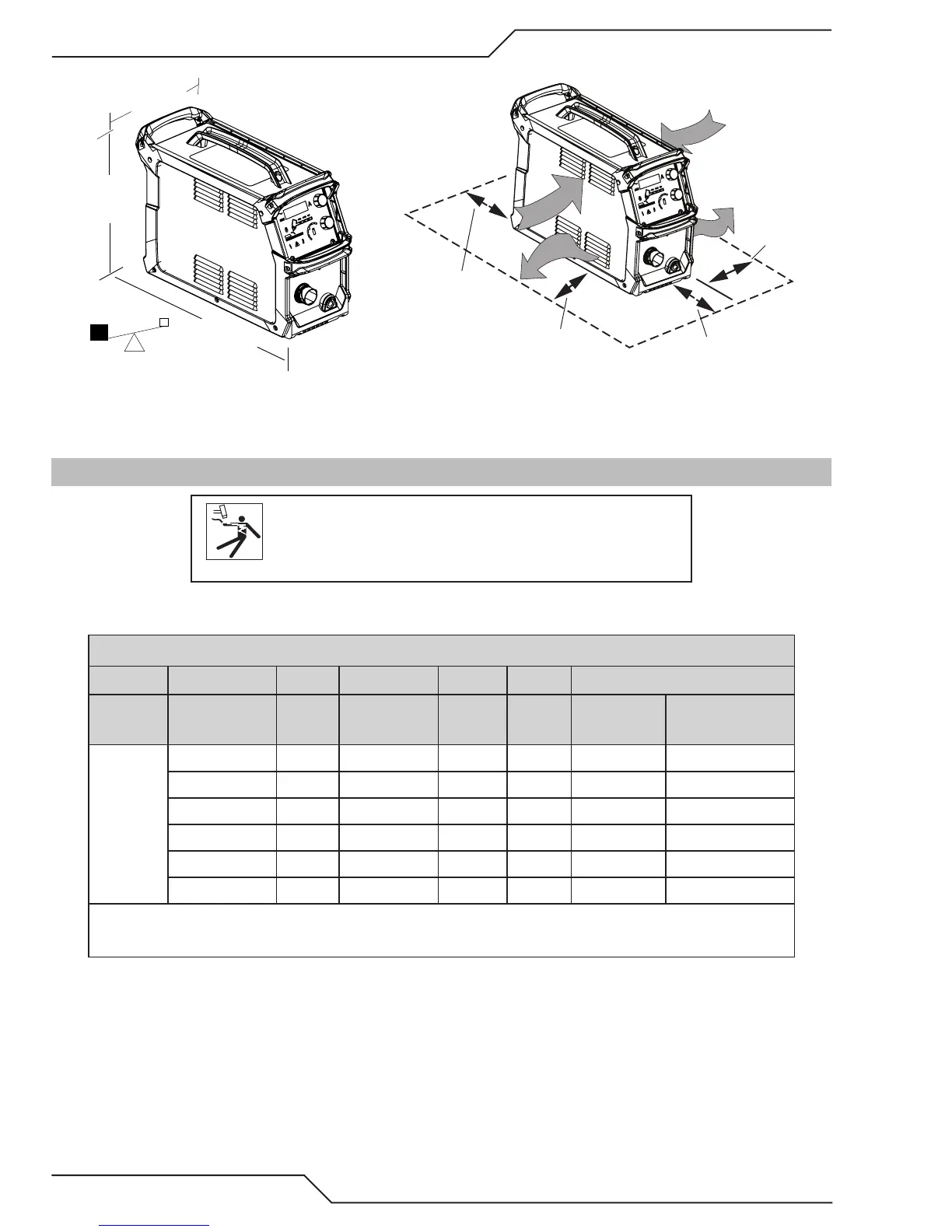

Power Supply Dimensions & Weight Ventilation Clearance Requirements
2.05 Input Wiring Specifications
WARNING
Each CutMaster 60i system is a dedicated 1 Phase OR 3 Phase
system and cannot be reconfigured to the other. Personal injury
could occur if changing the phase is attempted..
1 Phase
1 Phase CutMaster 60i Power Supply Input Cable Wiring Requirements
Input voltage Freq Power Input Suggested Sizes
Volts Hz kVA I max I
1
eff Fuse (amps)
Flexible Cord (Min.
AWG)
1 Phase
208 50/60 8.9 43 30.5 50 8 AWG (10mm
2
)
230 50/60 8.9 38.9 27.6 50 10 AWG (10mm
2
)
380 50/60 8.9 23.5 16.7 30 12 AWG (2.5mm
2
)
400 50/60 8.9 22.4 15.9 30 14 AWG (2.5mm
2
)
415 50/60 8.9 21.6 15.3 30 14 AWG (2.5mm
2
)
480 50/60 8.9 18.6 13.2 30 14 AWG (2.5mm
2
)
Line Voltages with Suggested Circuit Protection and Wire Sizes
Based on National Electric Code and Canadian Electric Code
Single Phase
To Next Page
