CUTMASTER 60i
INSTALLATION Manual 0-5475
3-6
Installing Optional Two - Stage Air Filter Kit
This optional two - stage air line filter (9-9387) is also for use on compressed air shop systems. Filter removes mois-
ture and contaminants to at least 5 microns.
Connect the air supply as follows:
1. Attach the Two Stage Filter bracket to the back of the power supply with the screws supplied.
NOTE!
For a secure seal, apply thread sealant to
the fitting threads, according to manufac-
turer’s instructions. Do not use Teflon tape
as a thread sealer, as small particles of the
tape may break off and block the small air
passages in the torch.
2. Connect the two stage filter outlet hose to the inlet port of the Regulator / Filter Assembly.
3. Use customer - supplied fittings to connect the air line to the Filter. A 5/16 (8mm) O.D. smooth tubing should
be used with the press in fitting.
5/16 (8mm)
O.D.
Gas
Supply Tubing
Air/Gas
Input
System Filter
Assembly
2-Stage Filter
Inlet Port (IN)
Outlet Port
(OUT)
Two Stage
Filter
Assembly

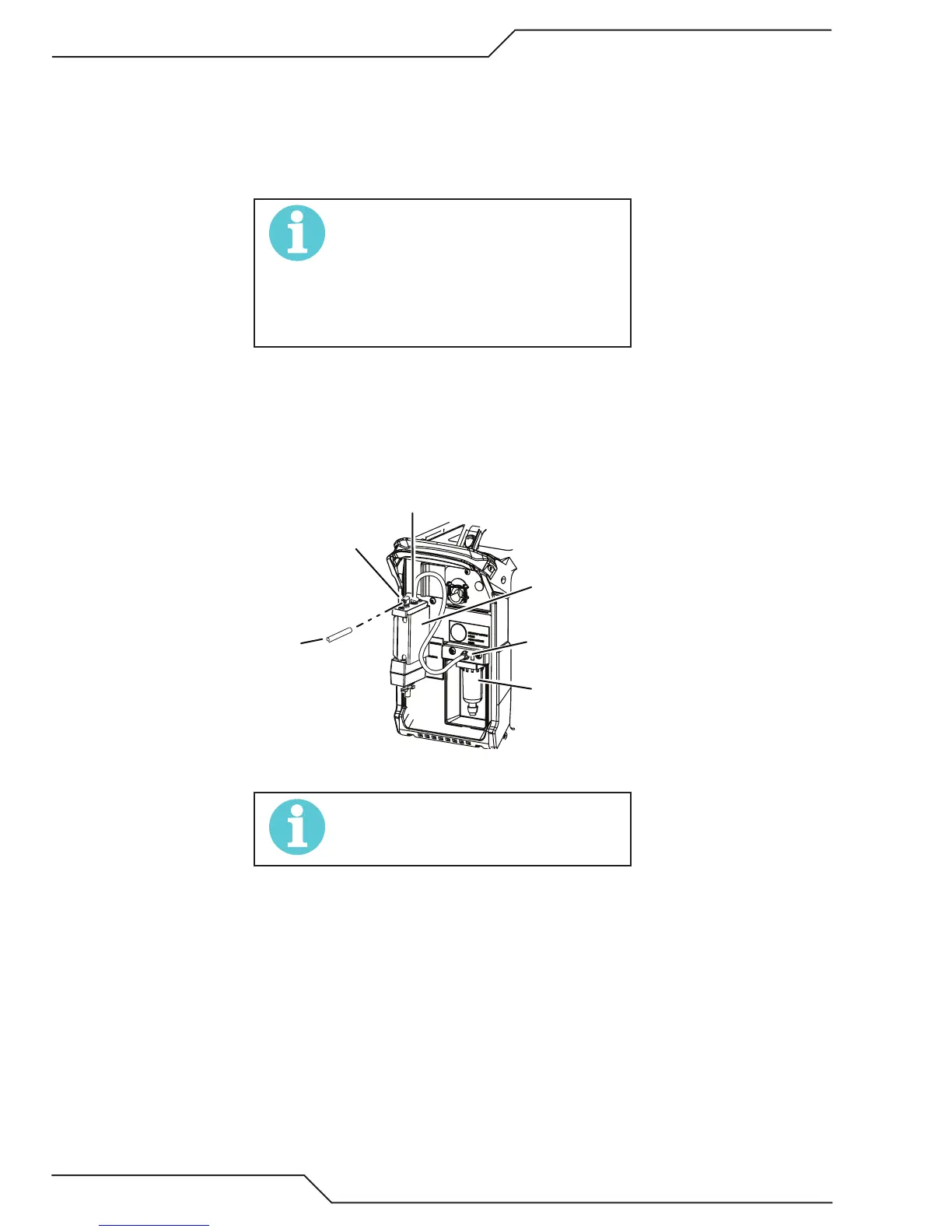

Art # A-13288
Optional Two - Stage Filter Installation
NOTE!
Filter replacement part numbers can be
found in Section 6 of this manual
To Next Page
