3.6 Primary Displays
The primary displays are for viewing only and cannot be configured. Primary displays include displayed
values for flow rate, totalizers, velocity, signal strength, or low signal cutoff (menus 00 through 04).
3.6.1 Flow/Net Totalizer (00)
The Flow/Net Totalizer (Figure 3.6-A, below) is the standard display used under normal operating condi-
tions. It displays the flow rate and net totalizer value. If the net totalizer is not currently enabled, the last net
totalized value is displayed.
3.6.2 Flow/Velocity (01)
The Flow/Velocity display (Figure 3.6-B, below) indicates the flow rate and fluid velocity. Velocity is
displayed in feet per second (FPS) if ENGLISH is selected as the measurement unit in Menu 42 and in
meters per second (MPS) if METRIC is selected.
3.6.3 Flow/Positive Totalizer (02)
This display indicates the flow rate and the totalized flow in the positive flow direction. If the positive
totalizer is not currently enabled, the last net totalized value is displayed (Figure 3.6-C, below).
3.6.4 Flow/Negative Totalizer (03)
This display indicates the flow rate and the totalized flow in the negative flow direction. If the negative
totalizer is not currently enabled, the last net totalized value is displayed (Figure 3.6-D, below).
3.6.5 Signal Strength/Low Signal Cutoff (04)
This display indicates the values for signal strength and low signal cutoff (Figure 3.6-E, below).

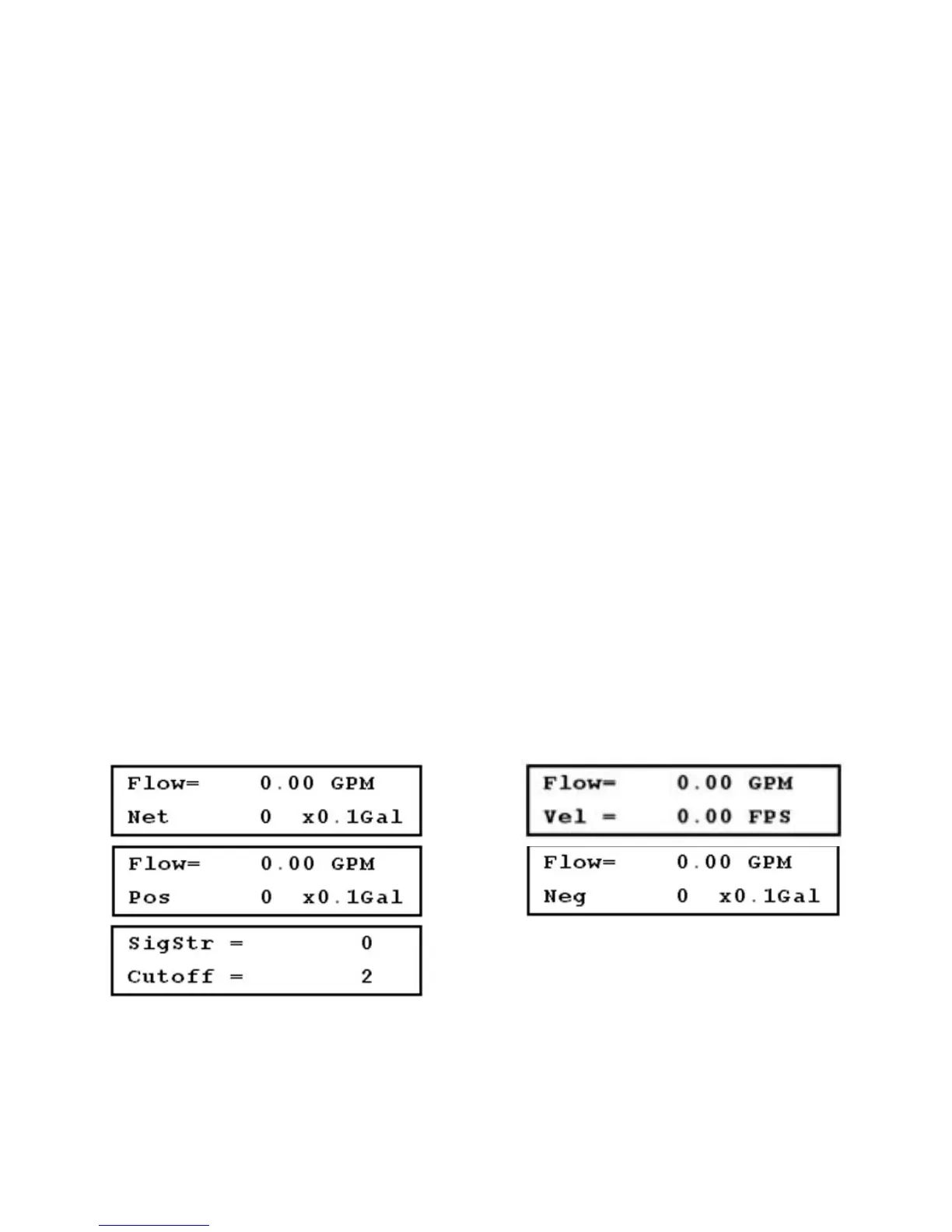

FIGURES 3.6-A THROUGH 3.6-E (LEFT TO RIGHT, TOP TO BOTTOM)
