AXLE ASSEMBLY 3.5
9 Place the axle sprocket into the final drive housing,
make sure the hub offset is facing the proper way to align
the chain with the drive motor sprocket.

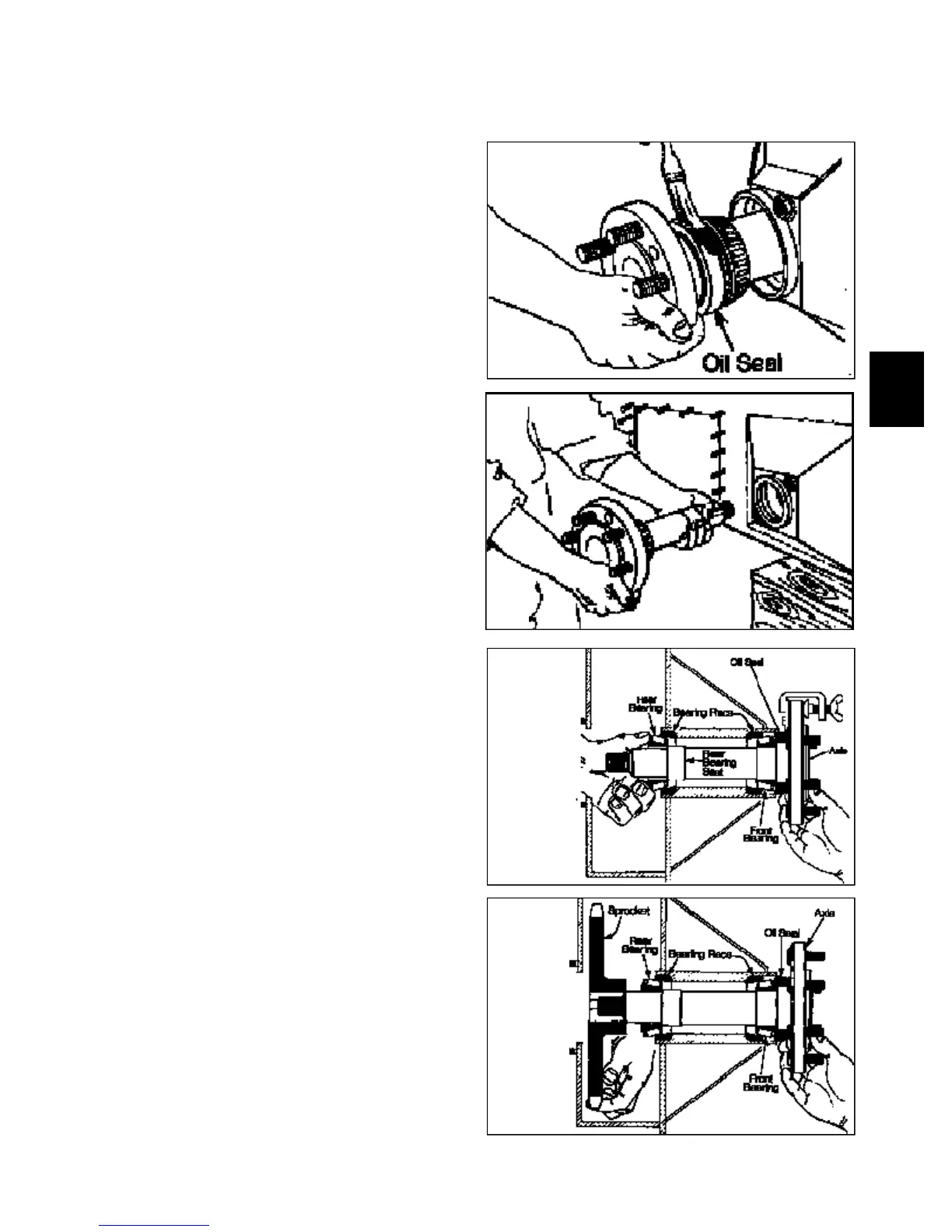

10 Apply gasket sealant to the outer edge of the axle oil
seal. (fig. C212) Take care, make sure none gets on the
bearing surface.
C220
C225
C212
C226
13 Start the axle into the drive sprocket. (fig. C226).
12 Start the rear (inside) axle bearing onto the axle. (fig.
C225).
11 Guide the axle into the final drive housing. (fig.
C220).
Axle Installation (cont’d)
