Thomas 95 User Manual

1-19
C2388
C2389
Loosen section bolts
CONTROL VALVE 1.3
Disassembly / Repair (cont’d)
C2390
C2391

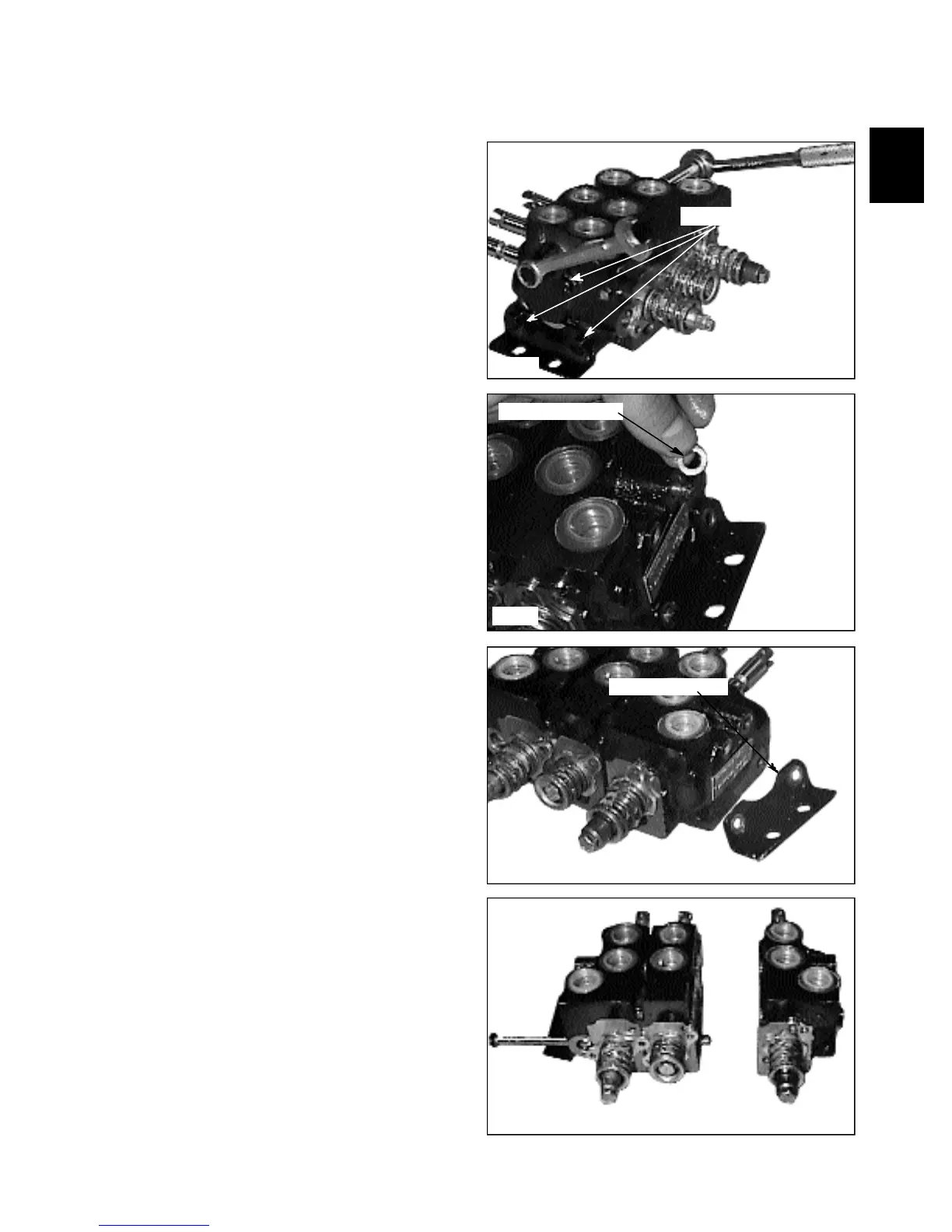

20 Section seals may be replaced without removing
spools and spring return mechanisms. Loosen the bolts
retaining the control valve sections together. (fig. C2388).
Upon assembly follow the torque specifications given
Section 8.
23 Separate the control valve sections. (fig. C2391)
22 Remove the bolts and mounting brackets. (fig.
C2390)
21 Note the flat spacer washers used on the upper bolts.
(fig. C2389)
Flat spacer washer
Mounting bracket
Separate sections
1
