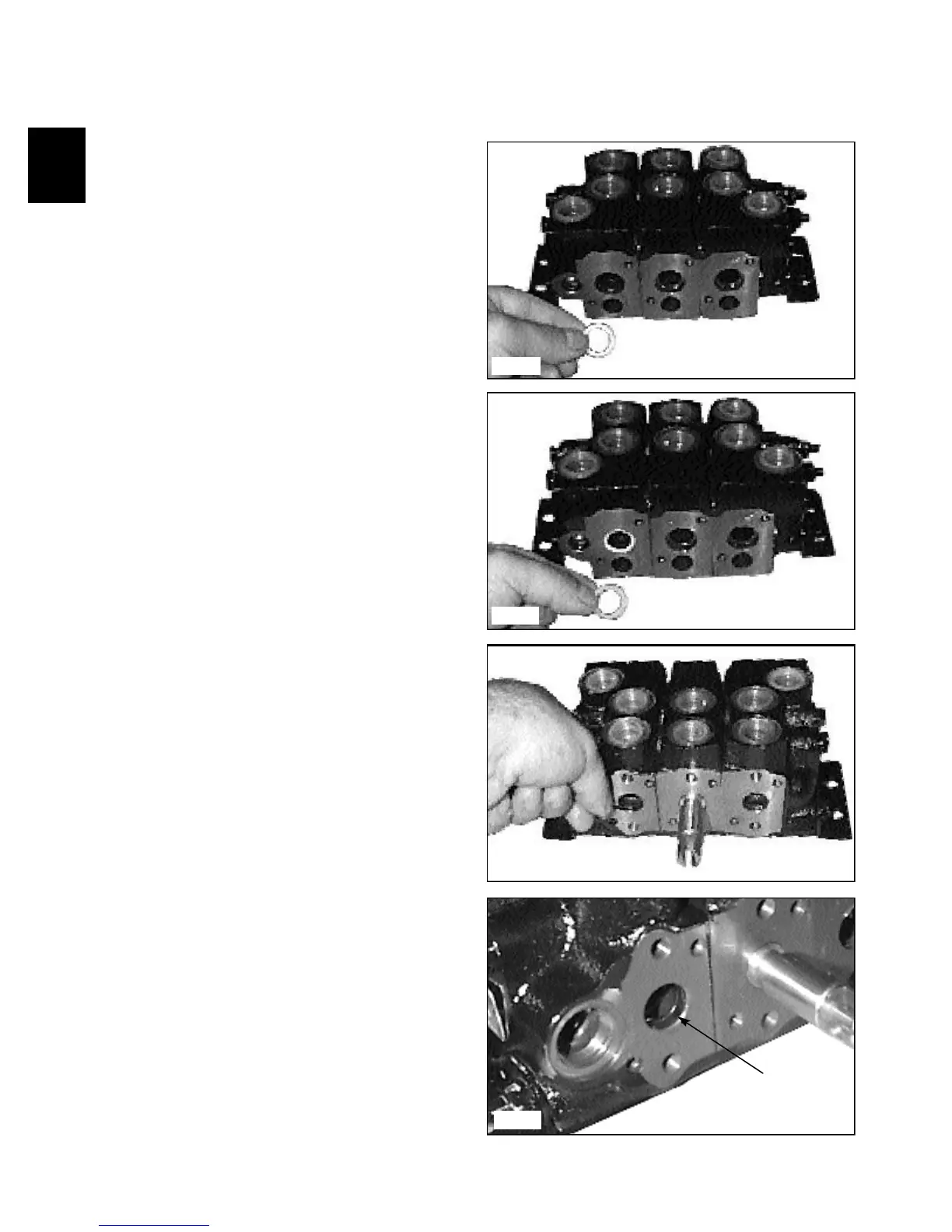

17 Install the O-ring spacer shim to the spool O-ring
seal. (fig. C2384).
CONTROL VALVE 1.3
Disassembly / Repair (cont’d)
18 Install the flat washer over the O-ring spacer. (fig.
C2385) The spring return side of the control valve is now
complete.
19 The auxiliary section, section without lock adapter,
has an O-ring seal located in a machined groove in the
section housing. (fig. C2386) Remove the seal using a
pick tool and replace with new. Lubricate the O-ring with
system oil. Figure C2387 shows the seal installed.
Seal
To Next Page
