Thomas 95 User Manual

CONTROL VALVE 1.3
Disassembly / Repair (cont’d)
1-21
1
C2396
C2397
C2398
C2404

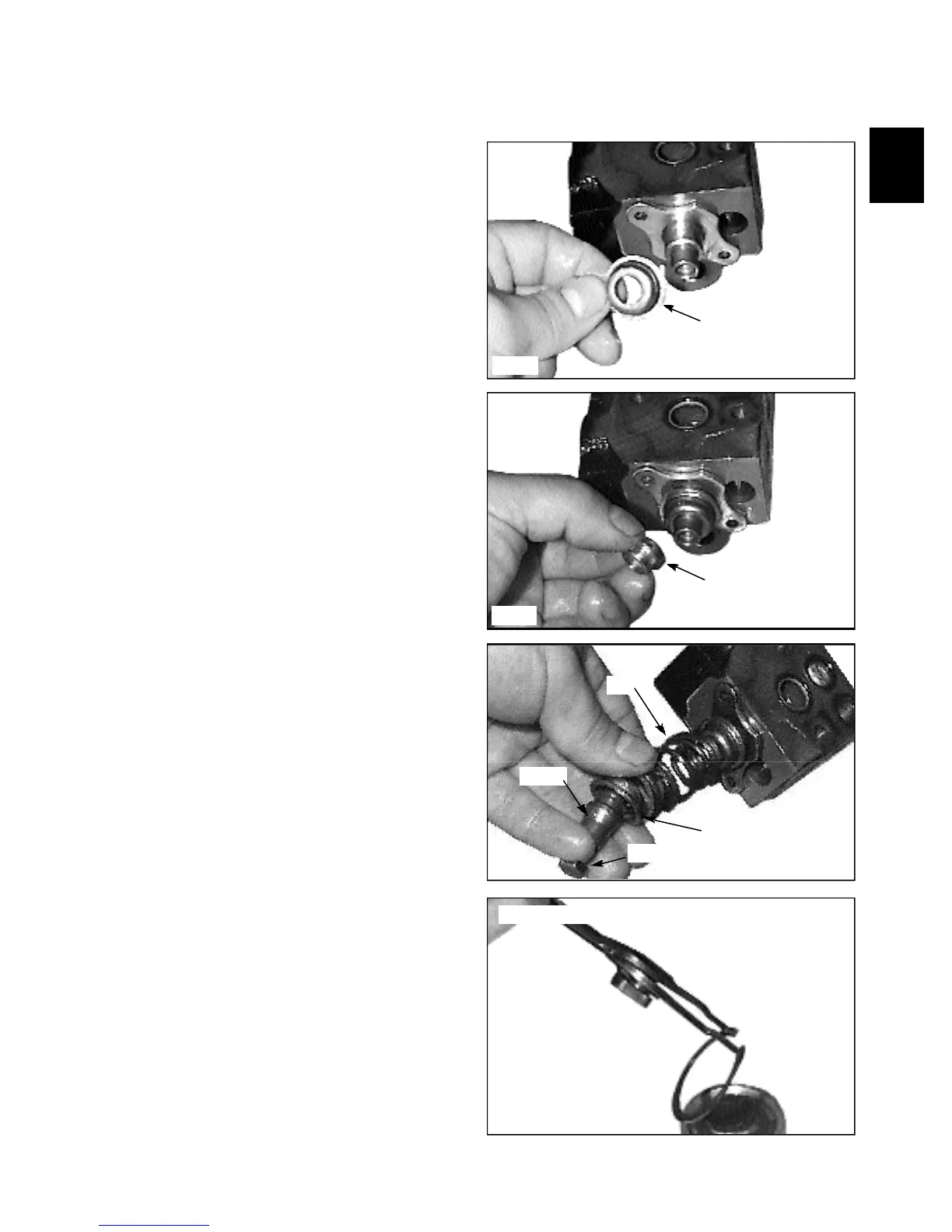

27 Replace the spring and detent mechanism in the
reverse order. (fig. C2396). Install spring bushing.
Lubricate the spring bushings with Castrol Spheerol
grease or equivalent.
29 Install the spring, spring bushing and detent. (fig.
C2398) Install the bolt. Apply Loctite 242 (blue) to the
threads and tighten to specifications given in Section 8.
28 Install sleeve bushing. (fig. C2397). Lubricate the
bushing with Castrol Spheerol grease or equivalent.
Spring bushing
Sleeve bushing
Spring
Spring bushing
Detent
Bolt
30 To service the spring return mechanism in the cover,
remove the circlip retaining the cover. (fig. C2404).
Remove circlip
