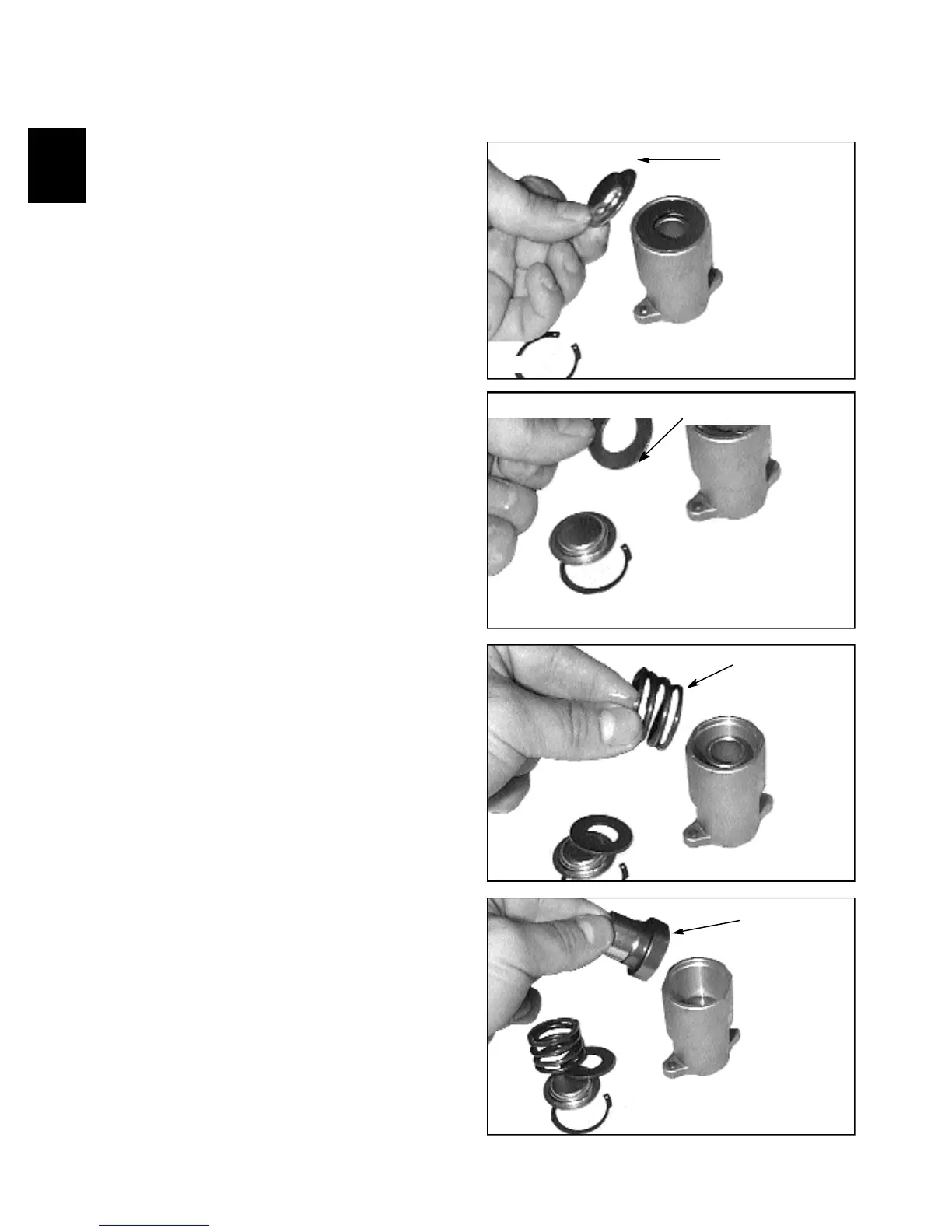

31 Remove the cover. (fig. C2405).
Disassembly / Repair (cont’d)
C2405
C2406
C2407
C2408
32 Remove the spring washer. (fig. C2406).
33 Remove the spring. (fig. C2407). Inspect the spring
for broken or sacked coils. Replace the detent spring
return with a new kit if spring damage is apparent.
34 Remove the detent ball sleeve and cup. (fig. C2408).
Remove cover
Remove washer
Remove spring
Remove sleeve
and cup.
