1-23

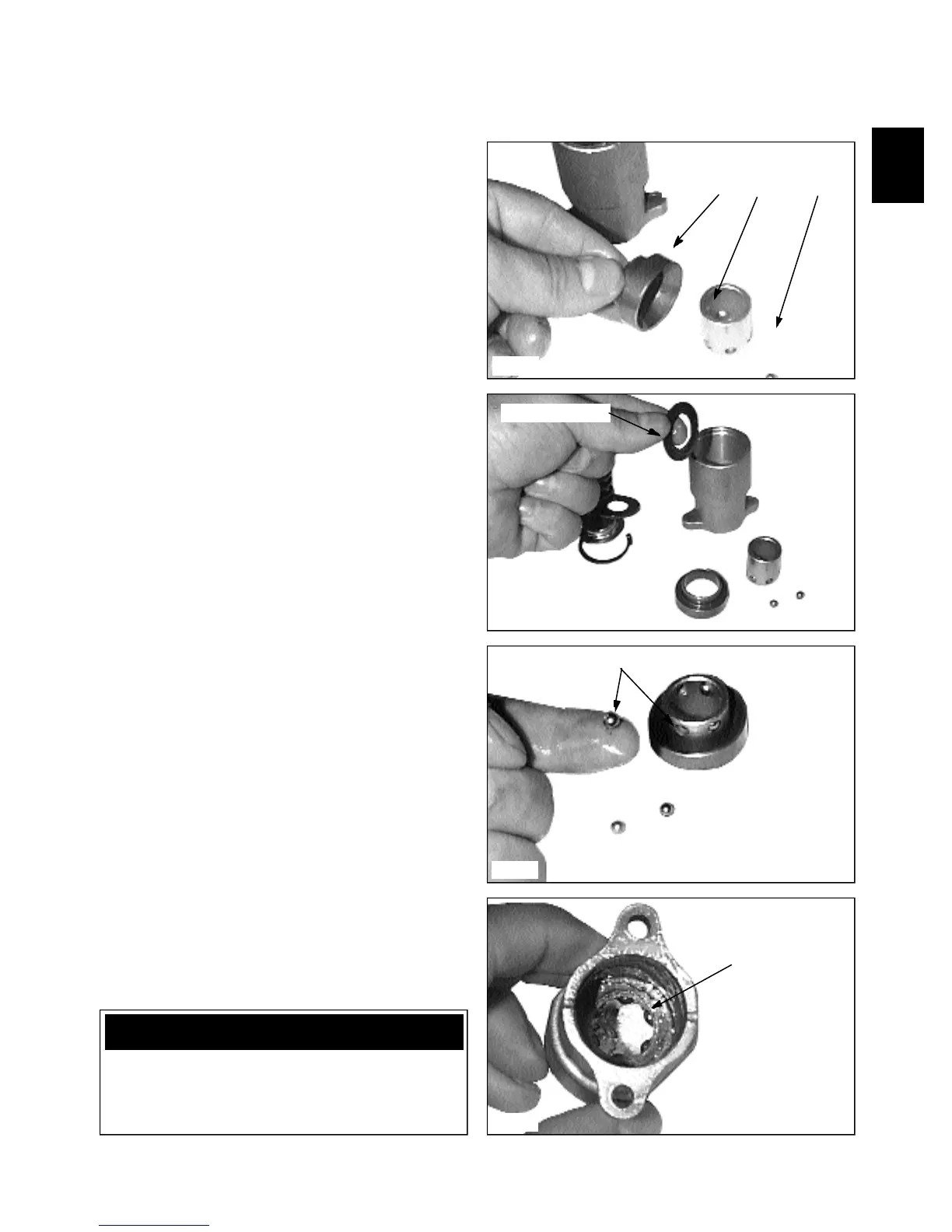

35 Separate the sleeve and cup assembly. (fig. C2409).
Inspect the tapered cup, balls and sleeve for wear.
Replace with new detent kit assembly if wear is evident.
Disassembly / Repair (cont’d)
C2409
C2410
C2411
C2412
36 Remove the spring washer. (fig. C2410).
37 Clean all parts with solvent. Lubricate all parts with
Castrol Spheerol grease or equivalent.
38 Replace the greased detent balls to the cup and sleeve
(fig. C2411) and reassemble the complete spring return
mechanism in the reverse order above.
39 The grease holds the detent balls in position during
assembly to the control valve and spool. (fig. C2412)
40 Replace the cap assembly to the control valve and
tighten the screws evenly.
Detent balls in
position
Grease detent and balls
IMPORTANT
Check to make sure the detent balls are in position
before assembling to the control valve to assure
proper function of the control spool and detent
mechanism.
Inspect cup, sleeve and balls
Remove washer
CONTROL VALVE 1.3
