2-18

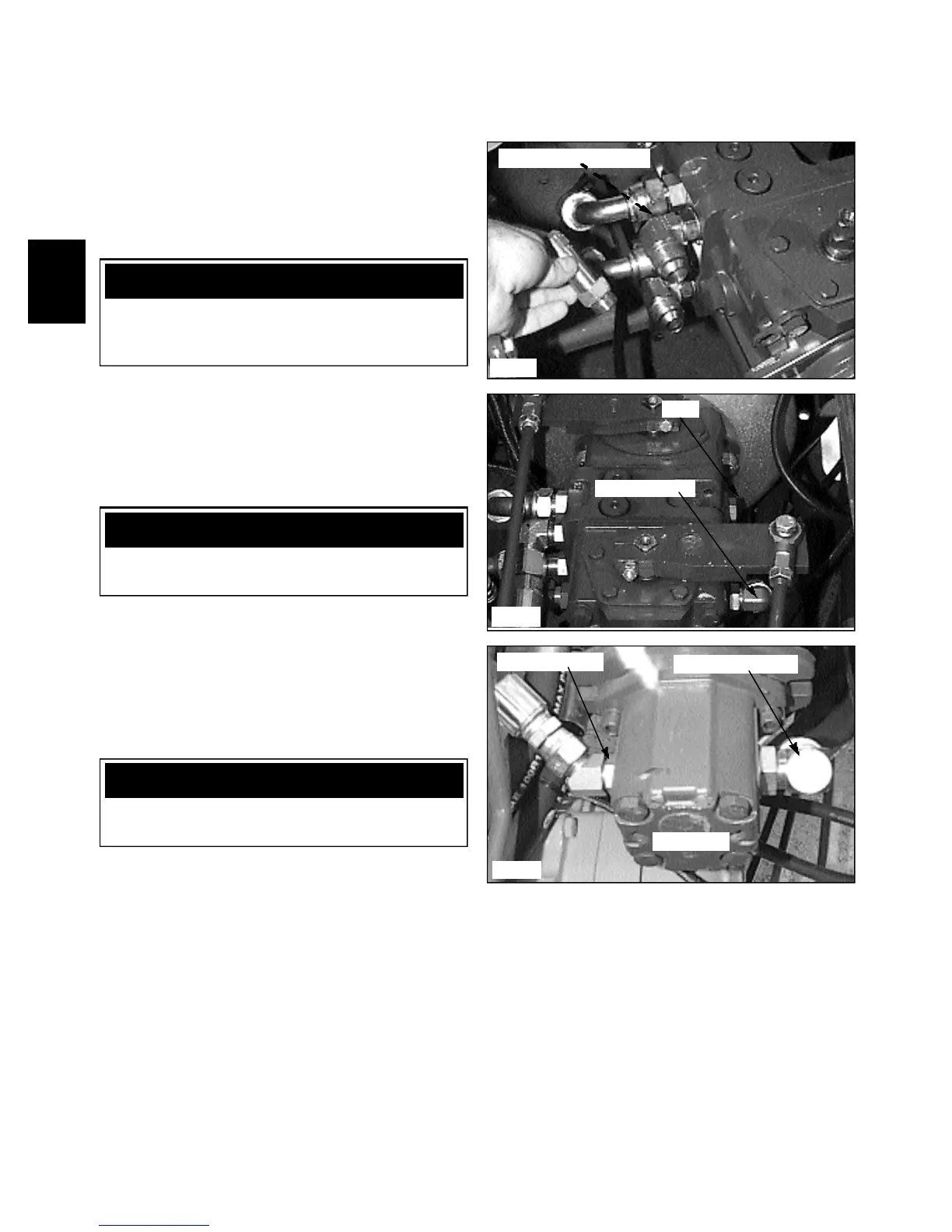

TANDEM PUMP REPLACEMENT 2.10
Installation (continued)
6 Connect the tandem pump case drain fitting and
hose. (fig. C2608) Torque the fittings and hose to the
specifications listed in the Torque Chart in Section 8.
C2611
Charge line connection
C2608
To control valve
7 Connect the auxiliary gear pump outlet fittings and
hoses to the gear pump. (fig. C2353) Follow the Torque
Chart in Section 8 when tightening fittings and hoses.
C2353
Gear pump
From the reservoir
8 Remove the plug on the side of the tandem pump and
fill the tandem pump with filtered. (fig. C2608)
IMPORTANT
Follow the Torque Chart In Section 8 when tighten-
ing fittings and hoses.
IMPORTANT
Inspect hydraulic fitting o-rings and flares for marks
or damage. Replace if necessary.
IMPORTANT
When making repairs to the hydraulic system, keep
the work area and parts clean. Use caps and plugs
on all open line and ports.
Case drain line
Plug
To Next Page
