DRIVE MOTOR 2.12
C2312
C2313
C2314
C2315

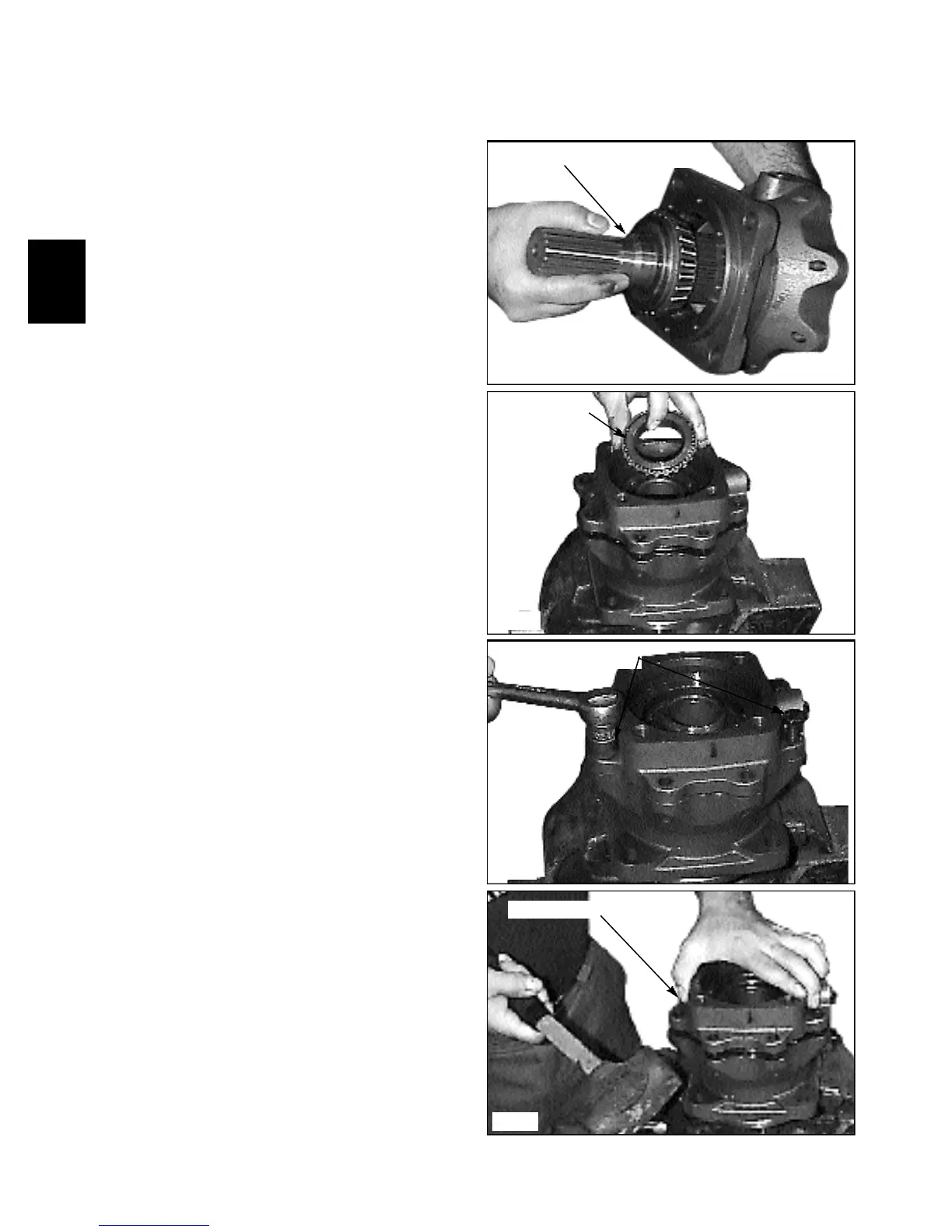

20 Use a press and appropriate sized arbor to push the
output shaft from the bearings. (fig. C2312).
Disassembly (cont’d) Output shaft and large bearing
Small bearing
Bearing housing bolts
Separate section
23 Separate the bearing housing sections. (fig. C2315) A
mallet may be required to assist removal.
22 Remove the bolts from the around the bearing hous-
ing. (fig. C2314).
21 Remove the small bearing from the housing. (fig.
C2313). Inspect both bearings and races. Replace as
required.
