Thomas 95 User Manual

2-43
2
C2323
Assembly

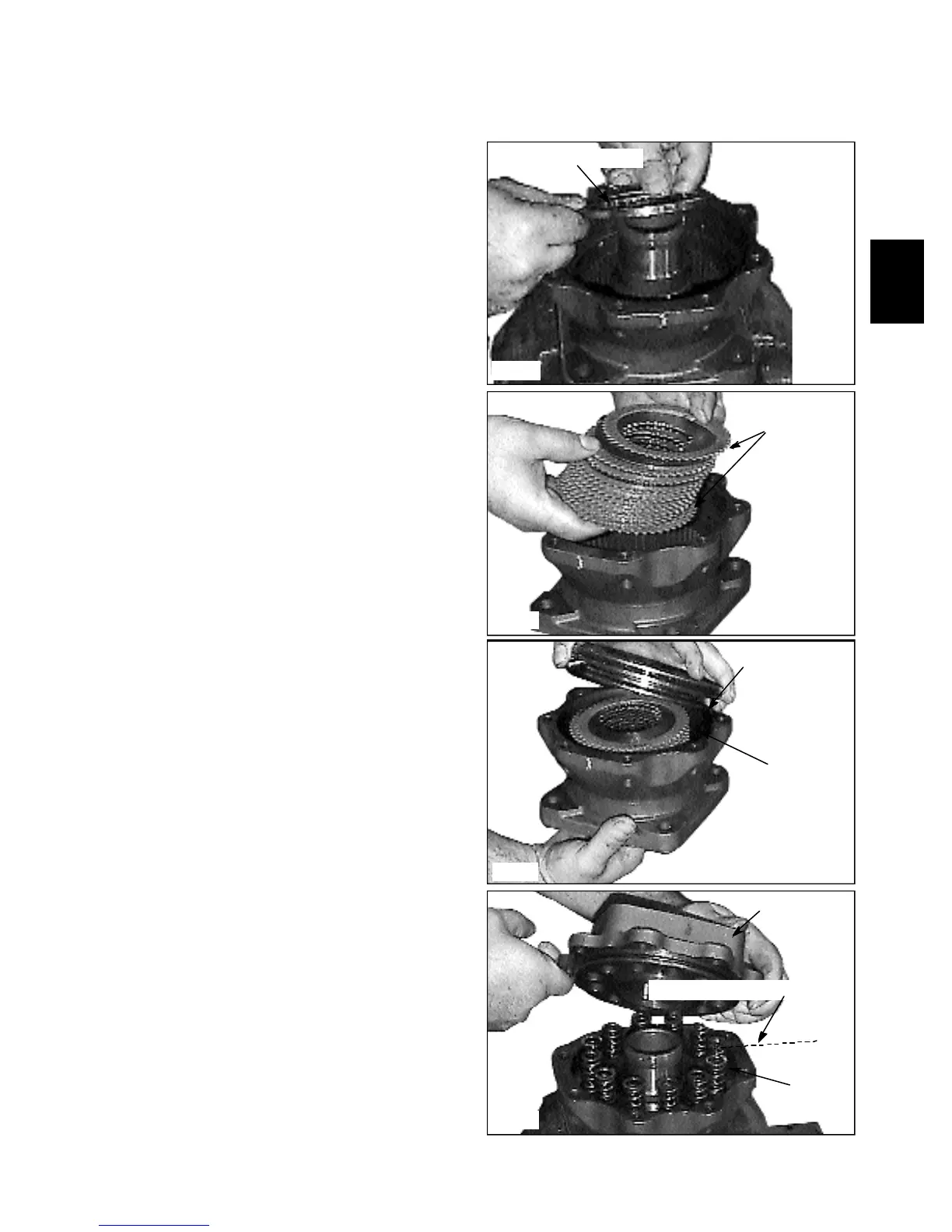

5 Continue adding plates, 12 fibre, 11 steel plates, to
the housing. (fig. C2323, C2319)
C2319
C2318
C2316
Add steel plate second
Brake discs
Piston
Springs
Bearing housing
Align spring to hydraulic port
6 Install the piston to the housing, over the brake discs.
(fig. C2318) Use new seals when assembling the motor.
Align one of the piston spring pockets with the hydraulic
inlet port opening in the housing. (fig. C2316)
DRIVE MOTOR 2.12
Seals
