Assembly (cont’d)

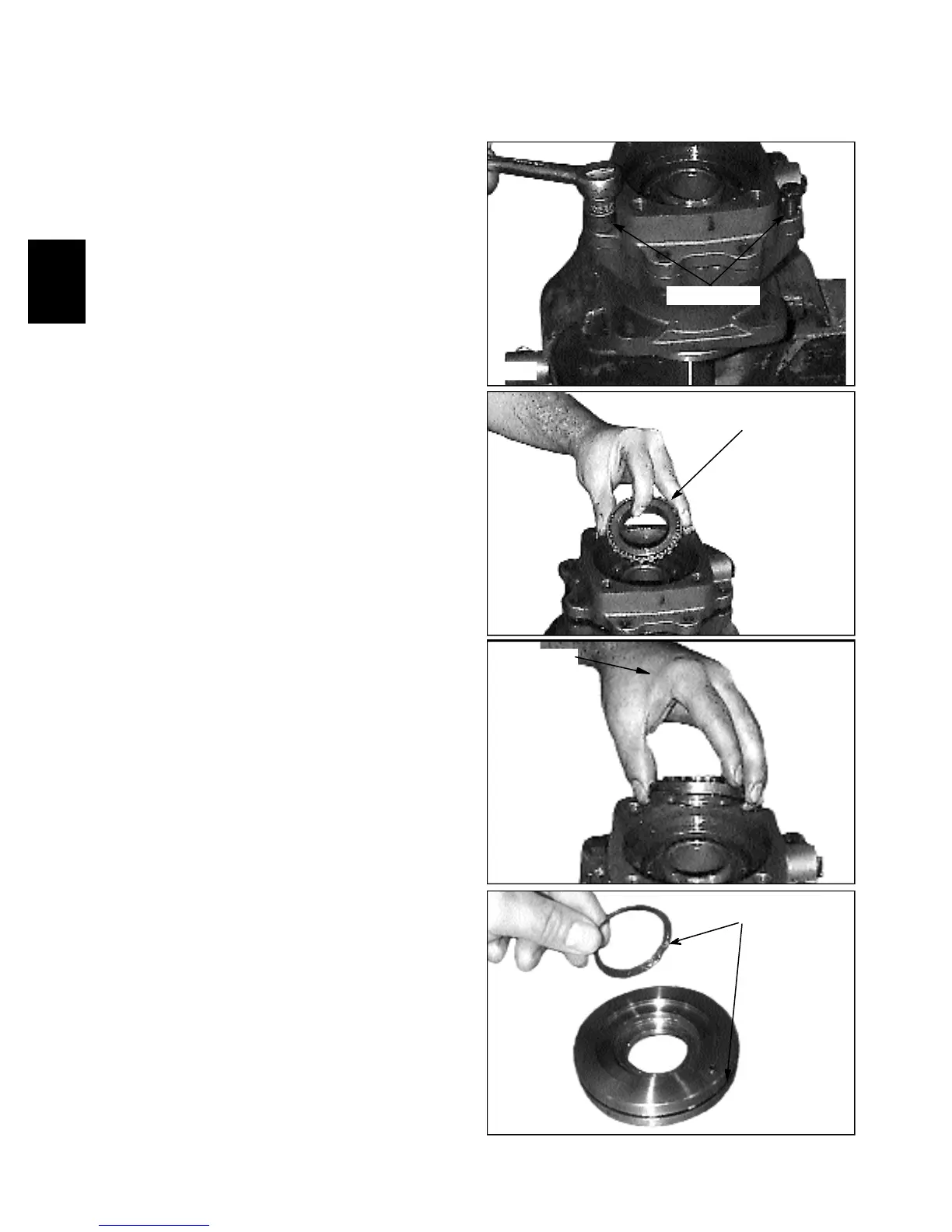

7 Install the bearing housing bolts and torque to 46.5
lbs / ft. +/- 2 lbs / ft. (63 Nm +/- 3 Nm) (fig. C2314)
DRIVE MOTOR 2.12
Small bearing
Bearing nut
9 Install a new seals to the intermediate plate. (fig.
C2325). Apply petroleum jelly to the cup seal to retain in
position.
Seals
8 Install the small bearing to the output shaft (fig.
C2313) in the following sequence:
a.Apply pressure, 12 bar (175 psi), to the brake ports
to release the brakes.
b. Press the bearing onto the output shaft with a force
of 350 daN (780 pounds of force), while rotating the
housing back and forth. Be sure to press only on the inner
race of the bearing.
c. Remove the brake release pressure before remov-
ing the force acting on the bearing.
d. Install the bearing nut and torque to 45 lbs / ft. (60
Nm) Strike the nut with blows from a mandrel and ham-
mer to prevent the nut from loosening.
