350 DCx camera
© 2010 Thorlabs
7.7
Appendix
7.7.1
Color and Memory Formats

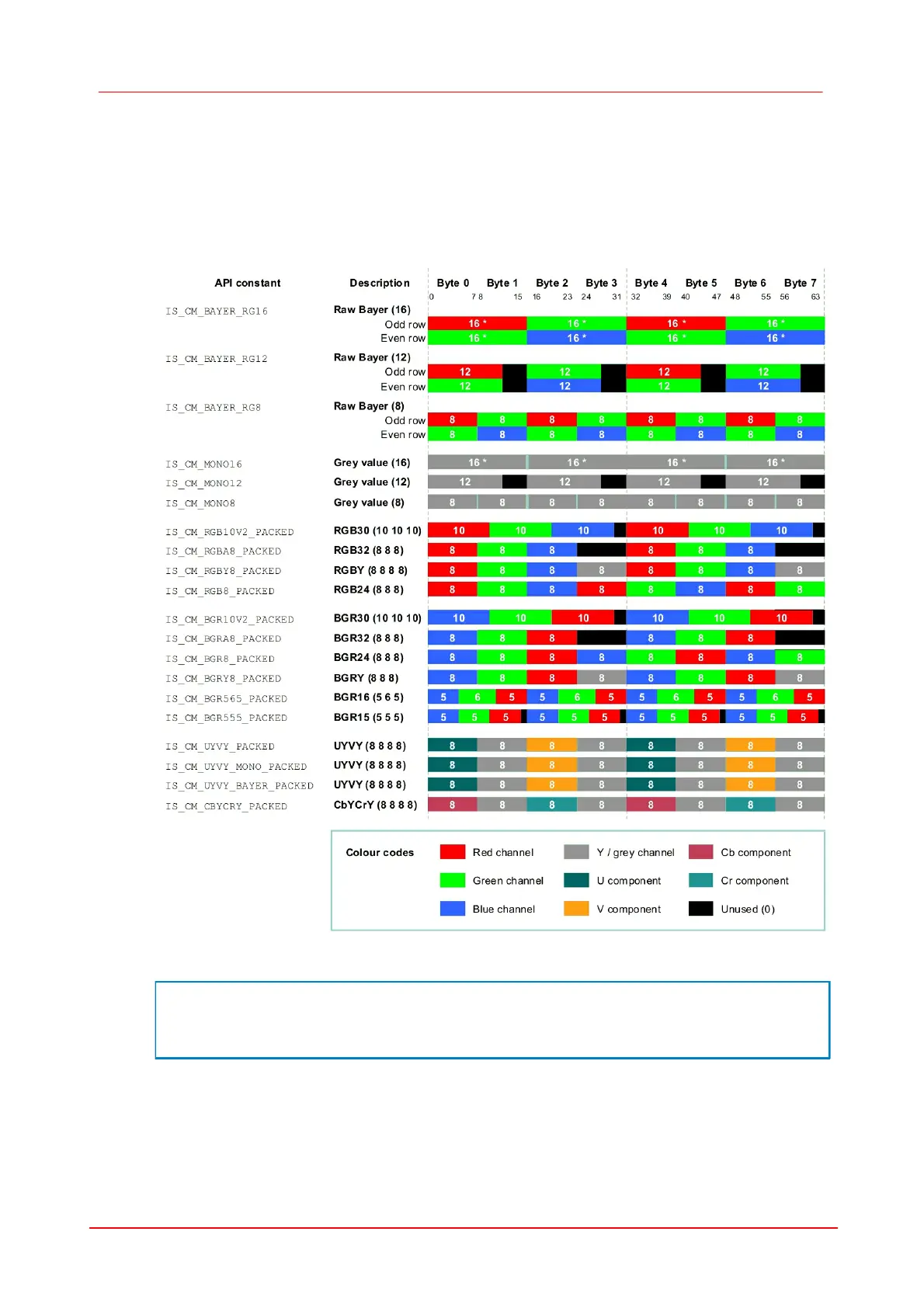

Each colour format supported by a DCx camera defines a different memory format. The following table
shows the byte arrangement in memory:
Figure 58 Color and memory formats
An asterisk (*) identifies formats which are filled starting with the most significant bit (MSB) but which
may have less than the indicated number of payload bits, depending on the camera model.
For the RGB16 and RGB15 data formats, the MSBs of the internal 8-bit R, G and B colours are used.
