© 2016 Thorlabs12
ITC8000
3.1 Laser Diode Controller

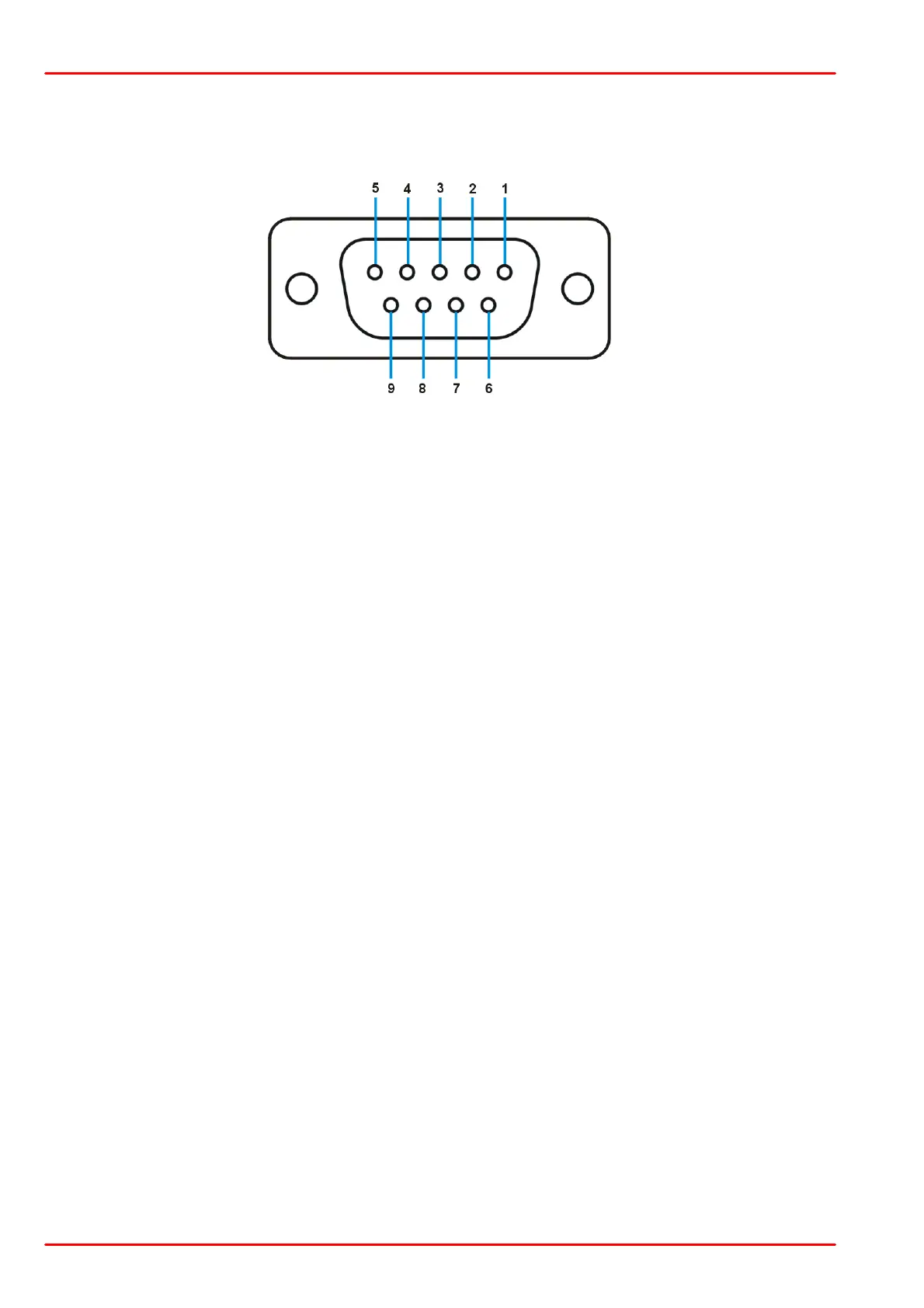

Pin Assignment of the LD Output Connector
Female 9 pin D-SUB Connector
Pin
Connector
Interlock; Status Display
1
Output Interlock; Status LED - Anode
5
Interlock return pin; Status LED - Cathode (GND)
Laser Diode
7
LD cathode (with polarity AG)
8
LD anode (with polarity CG)
3
LD ground
Monitor Diode
4
Input monitor (photo) diode
2
Ground monitor (photo) diode
Laser Voltage Measurement Input
6
ULD- (cathode)
9
ULD+ (anode)
