© 2016 Thorlabs14
ITC8000
immediately and remains switched off until the interlock circuit is closed again and the laser
current is switched on again.
Status display

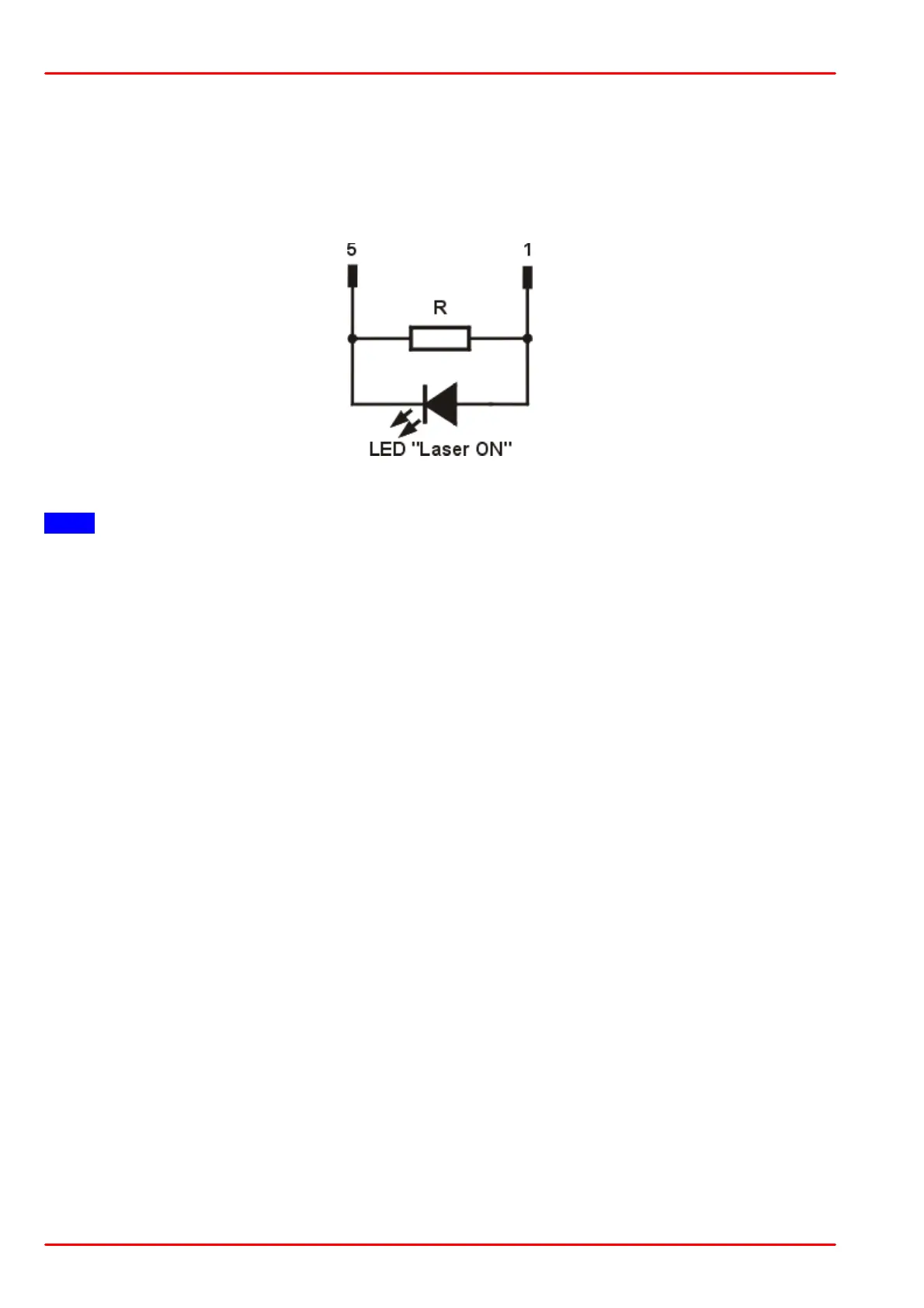

For Laser On/Off status indication, a LED with a 470 W resistor in parallel can be connected
between the two interlock pins. The LED will light up when the laser output is switched on.
R = 470
Note
Mispoling the LED may lead to a malfunction as the status of the interlock is then in an undefined
range.
