2.3 Operating Elements

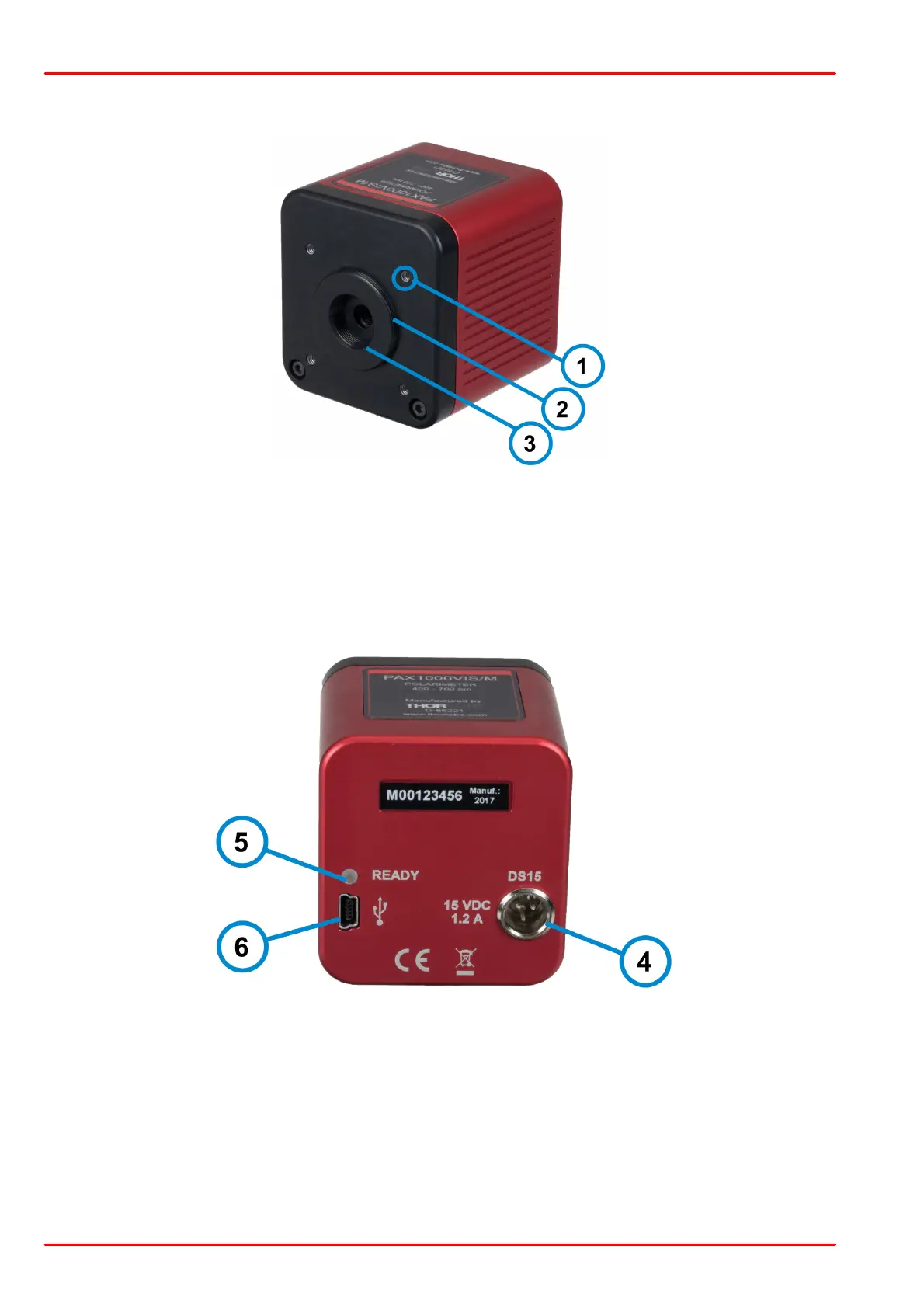

Operating Elements Front
1
Mounting hole for Thorlabs 30 mm cage system (4-40, depth 5.5 mm), 4 places
2
Input aperture with Thorlabs SM1 (1.035"-40) external thread
3
Input aperture with Thorlabs SM05 (0.535"-40) internal thread
PAX1000 Operating Elements (Rear)
Operating Elements Rear
4
External power supply connector
5
LED "Ready"
6
USB Mini B connector
