3 Graphical User Interface (GUI)
22
3.5 Menu View

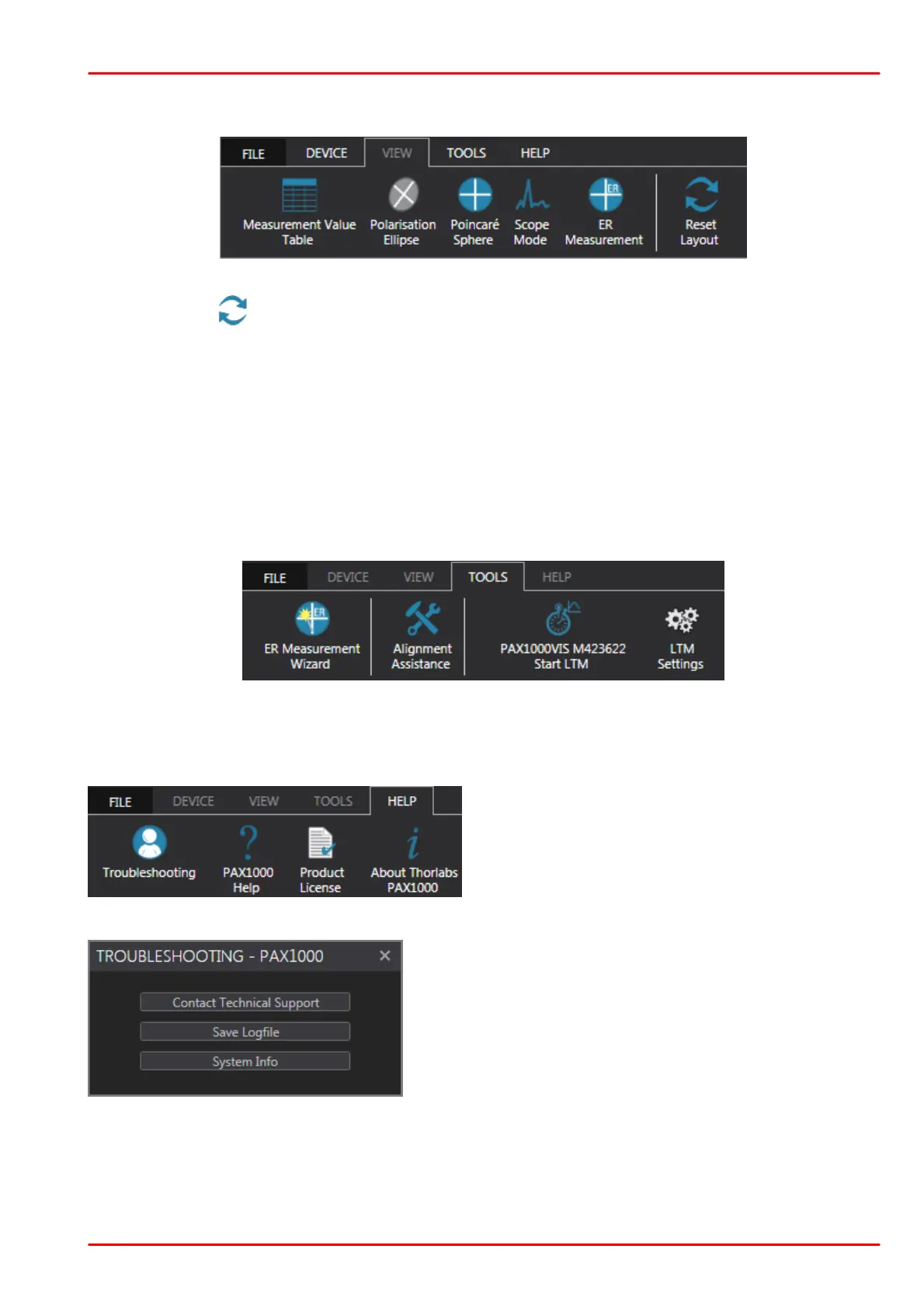

Click to an icon in the above shown screenshot to view the appropriate manual section.
Reset Layout
This button resets only the GUI layout:
· Polarization ellipse with numerical values for azimuth and ellipticity
· Poincaré sphere in default view (H (horizontal SOP) in front); clears all traces, clears
marker circle
There is no impact on device settings (e.g., wavelength) and measurement settings (e.g., SOP
references remain).
3.6 Menu Tools
Click to an icon in the above shown screenshot to view the appropriate manual section.
3.7 Menu Help
Troubleshooting
Contact Technical Support opens Thorlabs' web site
with the list of world-wide contacts.
Save Logfile: This file logs the most recent 5 software
sessions. It might be helpful to attach this file to a Tech
Support request.
System Info: Displays the Windows System Informa-
tion about the used PC.
PAX1000 Help
Click this button to open the online help. When pressing the F1 key, the online help opens with
the section of the currently active view (context sensitive help).
