PM5020 Dual-Channel Benchtop Power and Energy Meter Chapter 4 Operating Instructions
Rev: 1.0, 18-Aug-2022 © 2022 Thorlabs
Environment
This allows configuration of settings for the detection of the surrounding environment.
CAPTURE
This line leads to the settings for:
· capturing and recording of measurements: Logging and Scope measurement screens.
· file handling via the File Manager
· SD memory: the settings to choose the remote access connections
Logging

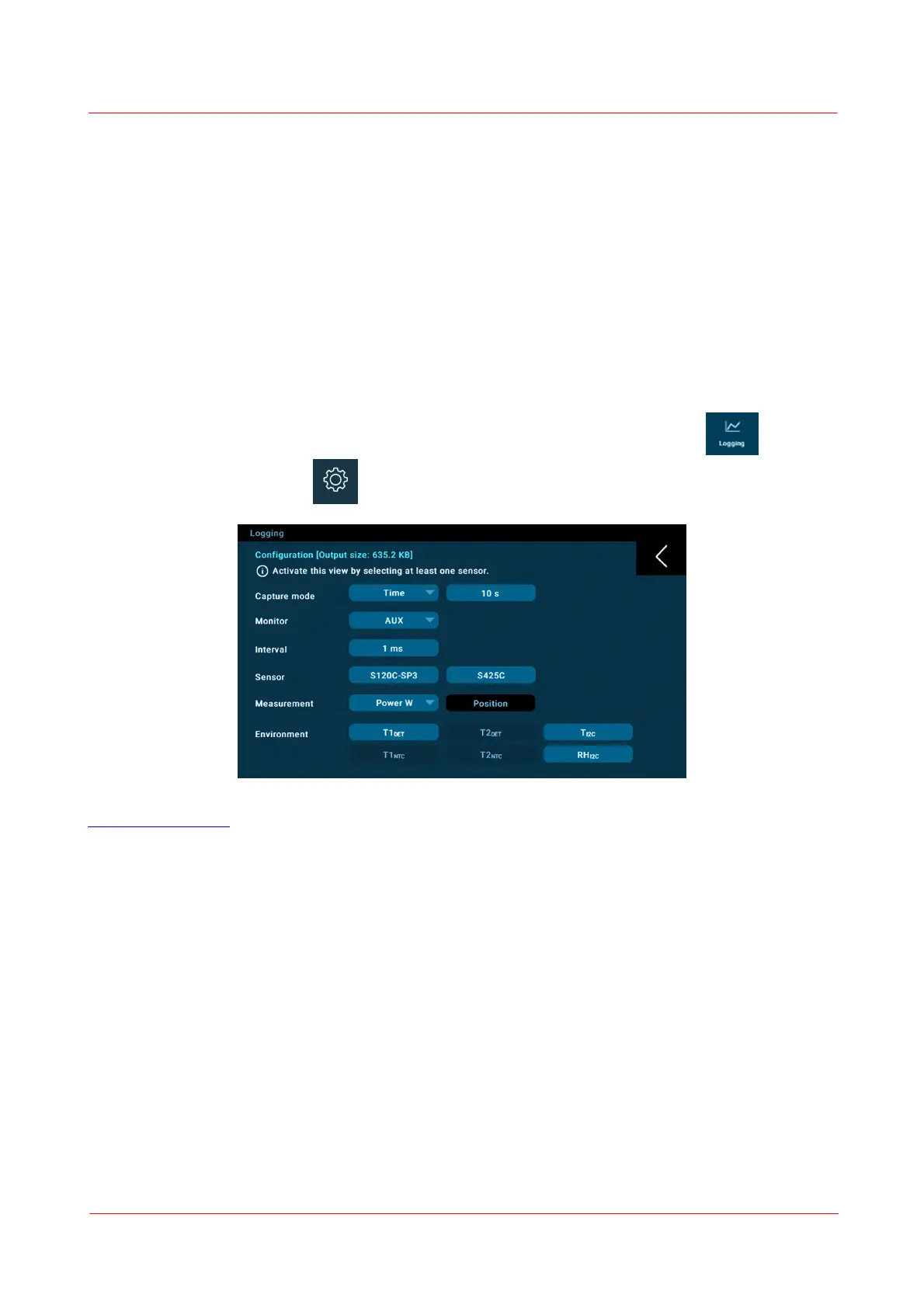

Shown below are the settings options for measurement logging. Both, the Logging Icon in the Set-
tings Menu and the Setting icon in the measurement screen "Logging" will lead to this menu.
In order to give access to the Logging measurement screen, please activate at least one channel in the
channel setup menu
Please adjust here the following:
· Capture mode: mode of measurement duration
· Monitor: output channel for the recording
· Interval: measurement resolution, connected sensor(s)
· Measurement: Units of data or "position" when using Thermal Position Sensors
· Environment parameters
Scope
