Page 38
MTN028837-D02
PM5020 Dual-Channel Benchtop Power and Energy Meter Chapter 4 Operating Instructions

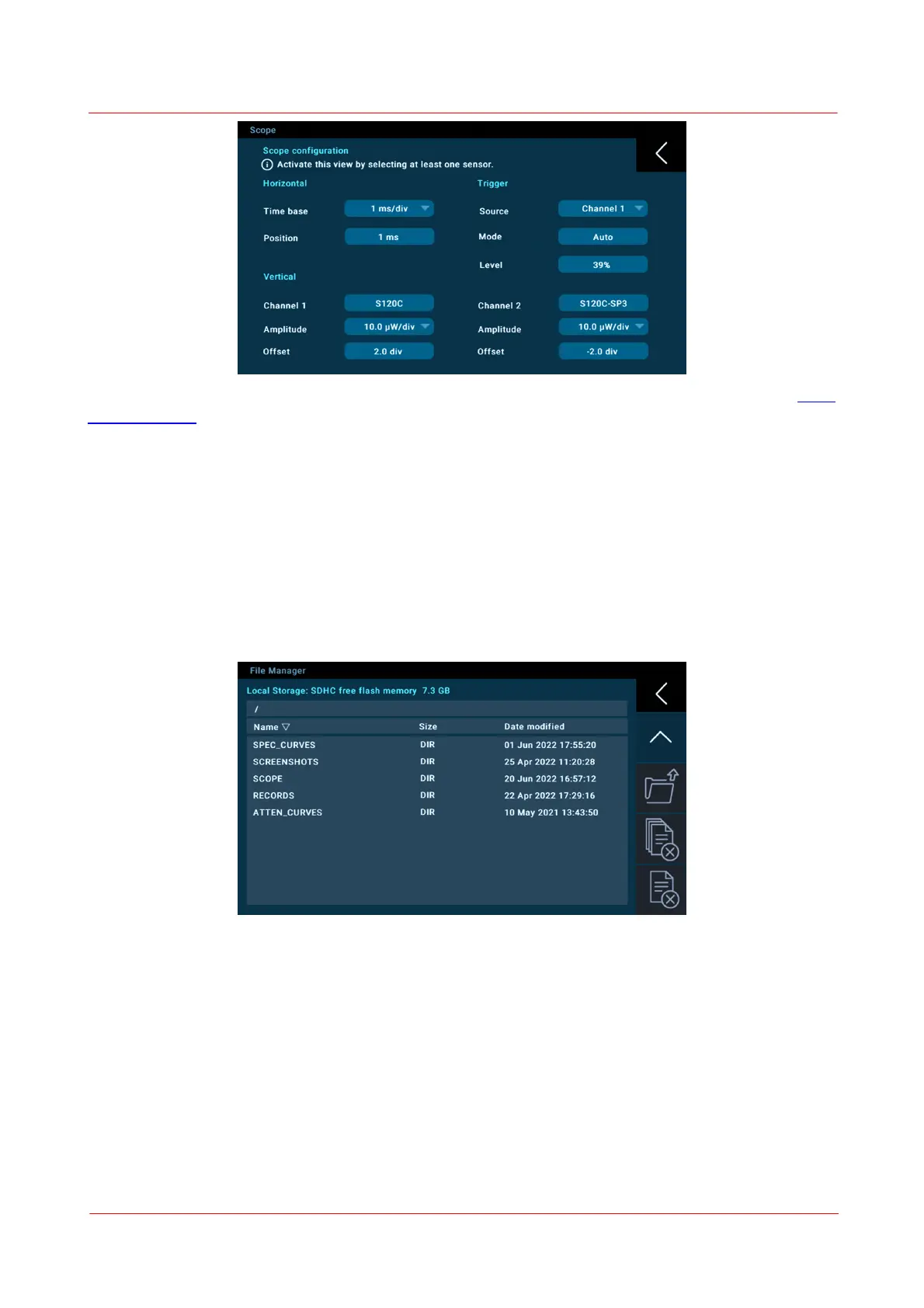

In order to give access to the Scope measurement screen, please activate at least one channel in the chan-
nel setup menu
Please adjust here the following setting for the screen display:
· Horizontal: X-axis configuration
· Trigger
· Vertical: Y-axis configuration for both channels
File Manager
The file manager shows the folders where respective files are saved. This File manager is also mirrored
when the PM5020 power meter memory is accessed via the connected PC.
SD Memory
Pressing the memory card menu button maps the SD card file system to a connected PC. This requires USB
connection.
DEVICE
This line leads to:
· Settings of the device itself
· Date and Time settings
· Configuration oft eh device interface via USA, Ethernet or RS232
· Information on this PM5020 power meter
